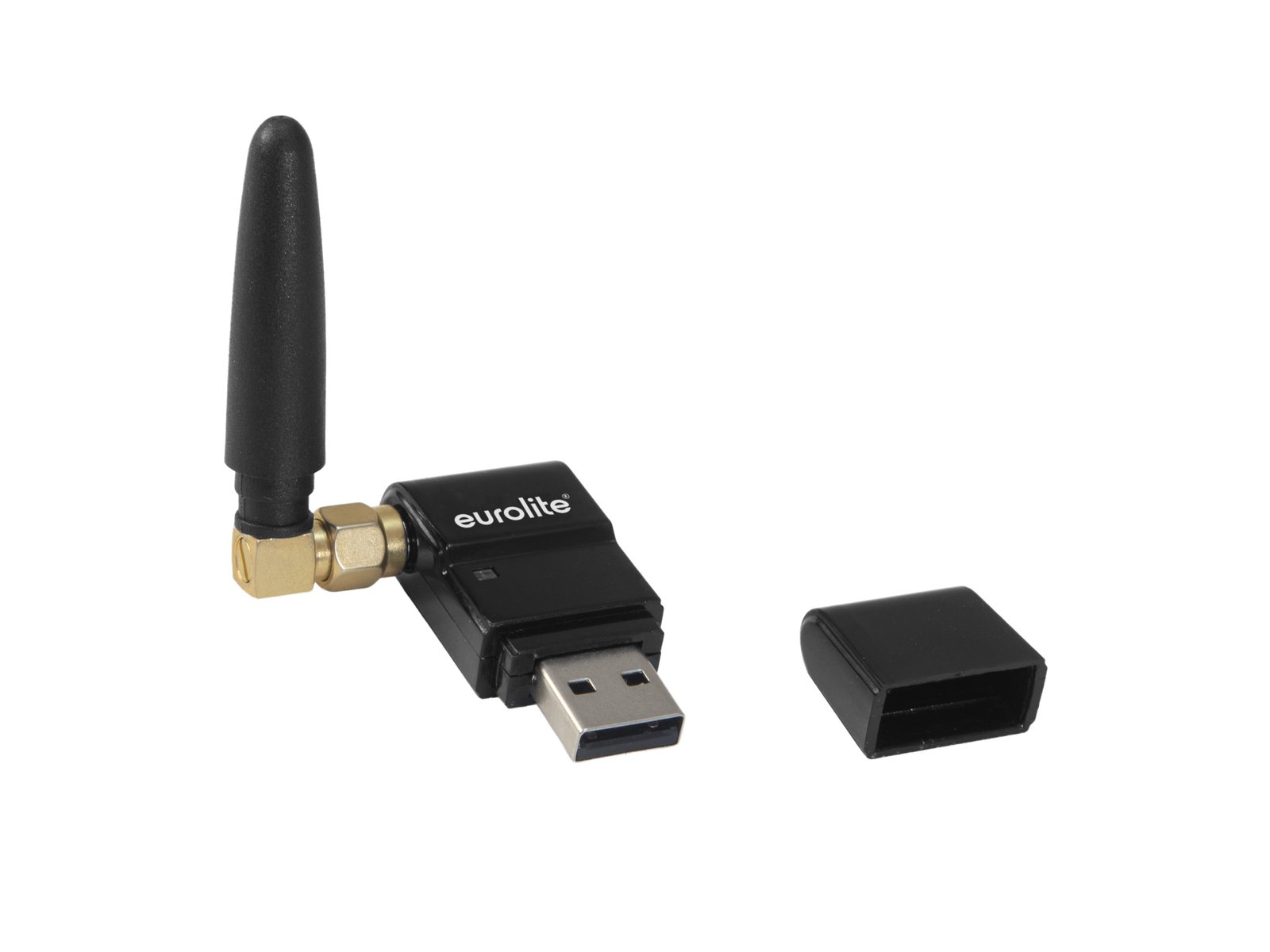

Eurolite QuickDMX USB

Eurolite QuickDMX USB - Miniature wireless DMX transceiver 2.4 GHz, phantom powered.

Features:

• Easy-to-use USB connector with a swivel antenna
• Wireless DMX eliminates extensive cabling between the DMX controller and DMX-controlled units in lighting installations
• Thanks to GFSK modulation with 78 channels, operation without interference, also alongside other QuickDMX transceivers and wireless devices in the 2.4 GHz band (e.g., Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, allowing control of 3072 DMX channels (6 DMX universes) possible
• LED indication for functions
• Transceiver, to be used as a transmitter or receiver
• Requires phantom power of 5 V for operation
• 2.4 GHz - license-free worldwide
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Control via DMX; QuickDMX; connect and use
• Operating range of up to 400 m with line of sight
• Package contents:

  • 1 x device
  • 1 x user manual
  • 1 x declaration of conformity

Technical Specifications:

• Power supply: 5 V DC
• IP rating: IP20
• Power connection: mains input via USB A (M) connector
• DMX channels: input 512
• Output 512
• DMX output: 1 x USB, type A
• Control: DMX; QuickDMX; connect and use
• Carrier frequency: 2.4 GHz
• Modulation: GFSK
• Parallel mode: max. 6 transmitters
• Range: 400 m with line of sight
• Colour: black
• Dimensions:
  • Width: 8.6 cm
  • Depth: 4 cm
  • Height: 1.1 cm
• Weight: 10 g
