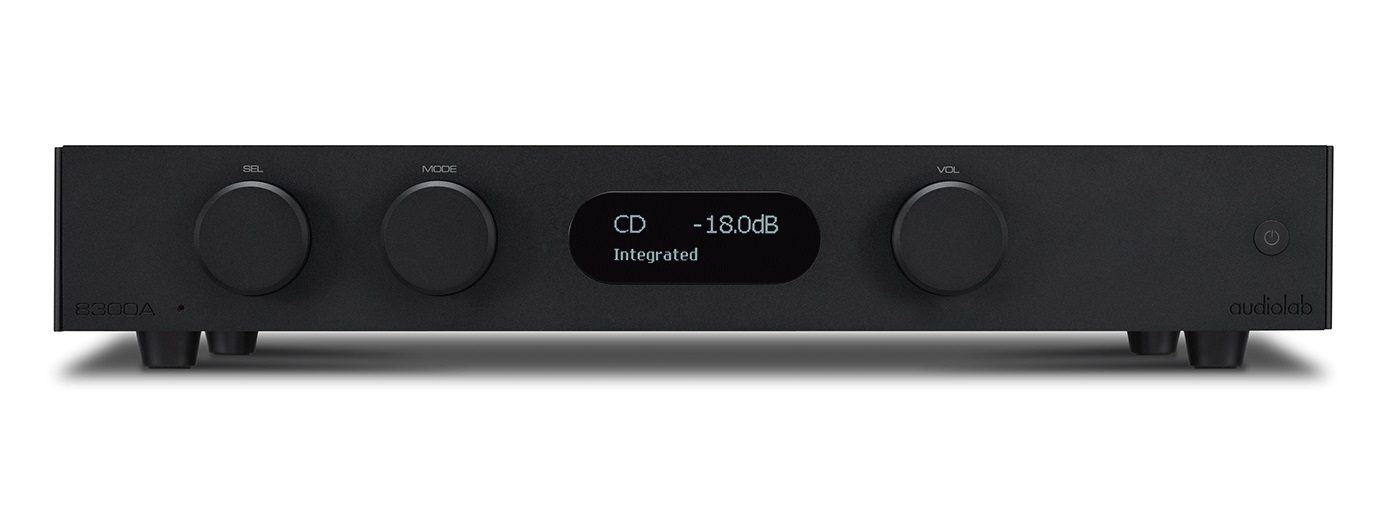

Audiolab 8300A - Black

Audiolab 8300A, integrated amplifier from the 8000 series, completely redesigned compared to previous models, offers greater power, and an additional phono stage.

The design of the 8300A circuit provides a completely new sound quality. The soundstage produced is deeper and wider, with greater space and separation. Instruments and voices are better defined, their character is rendered in a vivid manner. The dynamic range is greater and the frequency response is extended, with higher definition in the low frequencies and clearer, sweeter high frequencies.

• integrated amplifier
• Dual Mono Power Amp Design
• OLED display 128x64 pixels 2.7"
• volume control: Logarithmic Ladder Design
• standby function
• 12V trigger
• MM/MC phono stage
• XLR balanced inputs
• pre-amplifier section:
  • inputs: CD, Video, Tuner, Aux 1, Aux 2, XLR (balanced) & Phono
  • 2 x Pre outputs, RCA
  • frequency response, line signal:
    • +/- 0.1dB (10Hz - 20kHz)
    • +/- 3.0dB (1Hz - 100kHz)
  • frequency response, phono signal: +/- 1.0dB (20Hz - 20kHz)
  • THD:
    • line <0.001%
    • phono <0.002%
  • signal-to-noise ratio:
    • line > 107dB
    • MM phono > 73dB
    • MC phono > 68dB
  • crosstalk: < 80dB (L-> R & R->L @10kHz)
• amplification section:
  • gain 29 dB (20Hz-20kHz)
  • input sensitivity: 840mV (Power Out = 70W into 8Ω)
  • maximum amplification with THD < 1%:
    • 2 x 75W RMS (8Ω),
    • 2 x 115W (4Ω)
  • THD: <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)
  • damping: >100 (8Ω Load @ 1kHz)
  • outputs: 2 connection terminals
• dimensions: 80 x 444 x 330.3mm
• weight: 7.8 kg
• black finish
