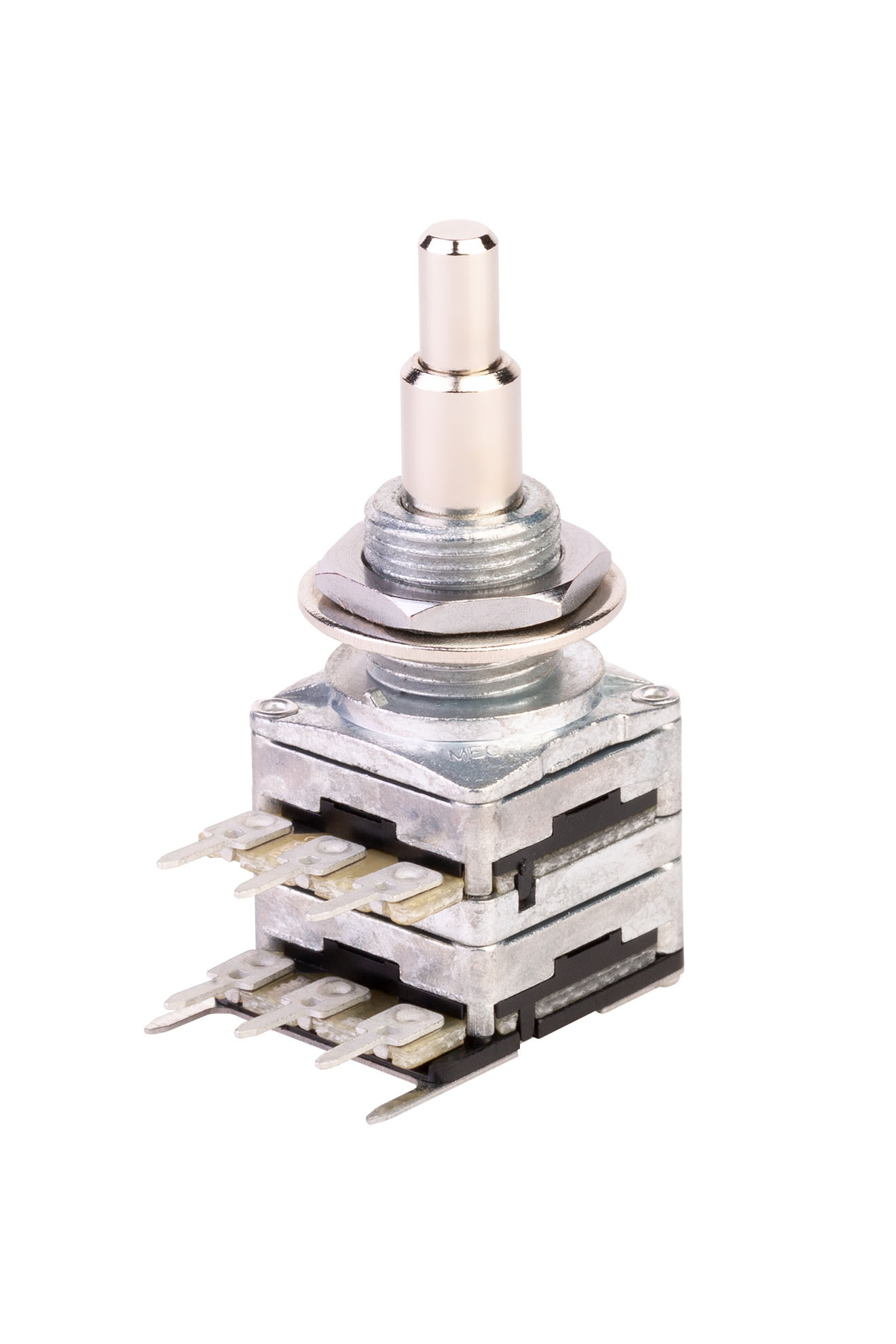

MEC Pickups Mono Stacked Potentiometer, B50K/cc / A500K

Name: MEC Pickups Mono Stacked Potentiometer, B50K/cc / A500K
Brand: MEC Pickups
SKU: M 85201
Price: 30.67 EUR
Availability: BackOrder

Potentiometer

dual mono potentiometer with concentric shaft.
R1 = B50K (50 kOhm linear) and R2 = A500K (500 kOhm logarithmic).
central detent for precise adjustments.
ideal for volume and tone control for active pickups.
compact dimensions: 24 x 16 x 17 mm including terminals.

Variants:

30⁶⁷ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

153 points of loyalty

Shipping 15.40 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, B50K/cc / A500K Add to cart: 30⁶⁷ €

- dual mono potentiometer
- concentric shaft
- R1 = B50K (resistance 50 kOhm, (B) linear)
- R2 = A500K (resistance 500 kOhm, (A) logarithmic)
- central detent
- suitable for volume and tone control for active pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm
