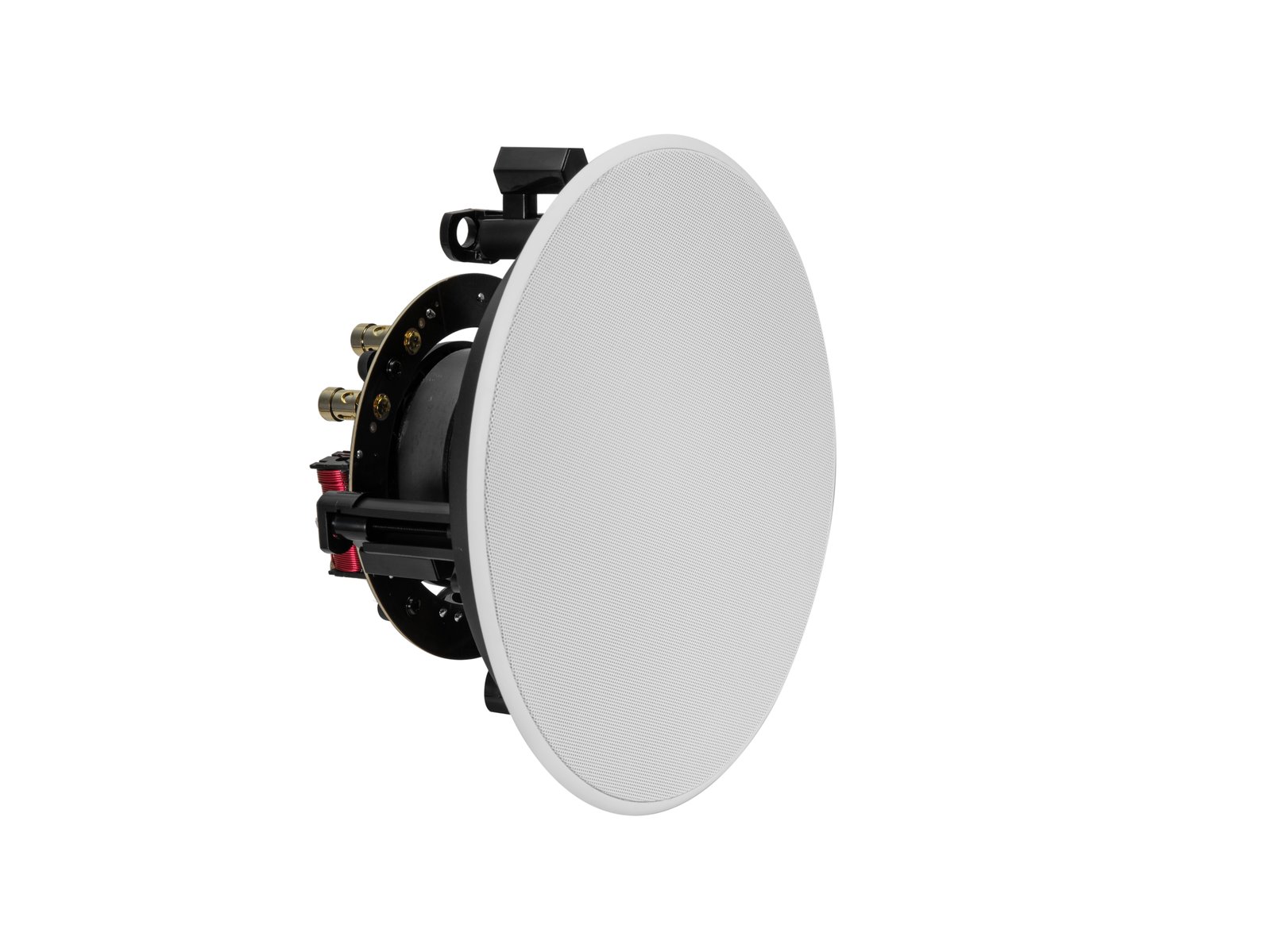

Omnitronic CST-608 2-Way Ceiling Speaker

The CST series models are frameless ceiling speakers with an exceptionally discreet appearance, designed for installation in hotels, restaurants, bars, lobbies, training rooms, conference halls, or shopping centres. The 2-way coaxial systems have a frequency response of up to 20 kHz, balanced sound, and excellent speech intelligibility. The tweeter is protected against overload by a PTC and can be tilted at 30 degrees to adapt to local conditions, as well as rotated freely at 360°. Secure mounting clips allow for quick and easy attachment. The front grille is interchangeable.

Coaxial 2-way frameless speaker, LF: 6.5" HF: 1", 8 ohms, 40 W RMS

• Excellent sound reproduction
• With 2-way passive crossover, PTC protection for tweeter
• Rotatable tweeter
• Level matching switch -3 dB/0 dB/+3 dB
• For speech and background music in indoor PA systems

Package contents

• 1 x speaker, 1 x user manual

Power:	Program: 80W Nominal power: 40 W RMS
Frequency range:	45 - 21000 Hz
Sensitivity:	88 dB (1W/1m)
Max. SPL:	107 dB
Dispersion angle:	105° omnidirectional
Impedance:	8 ohms
Speaker:	1 x woofer (6.5") approximately 17 cm Tweeter (1") approximately 2.5 cm
Speaker type:	In-ceiling mounted speaker
Material:	ABS acrylonitrile butadiene styrene
Colour:	White, scratch and shock resistant
Mounting dimensions:	11.5 cm Ø 20.7 cm
Dimensions:	Height: 11.7 cm Diameter: Ø 24.8 cm
Weight:	1.83 kg
