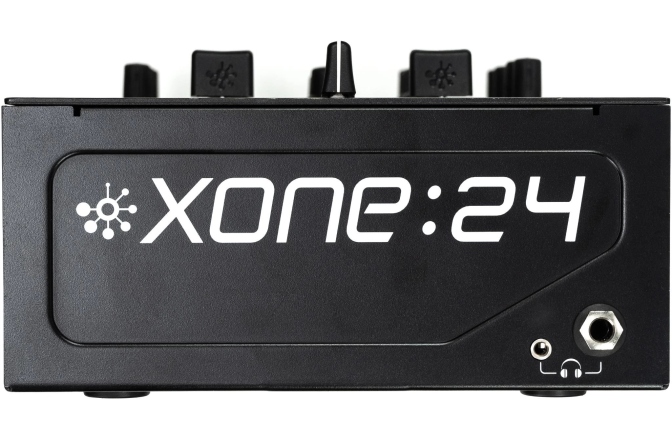

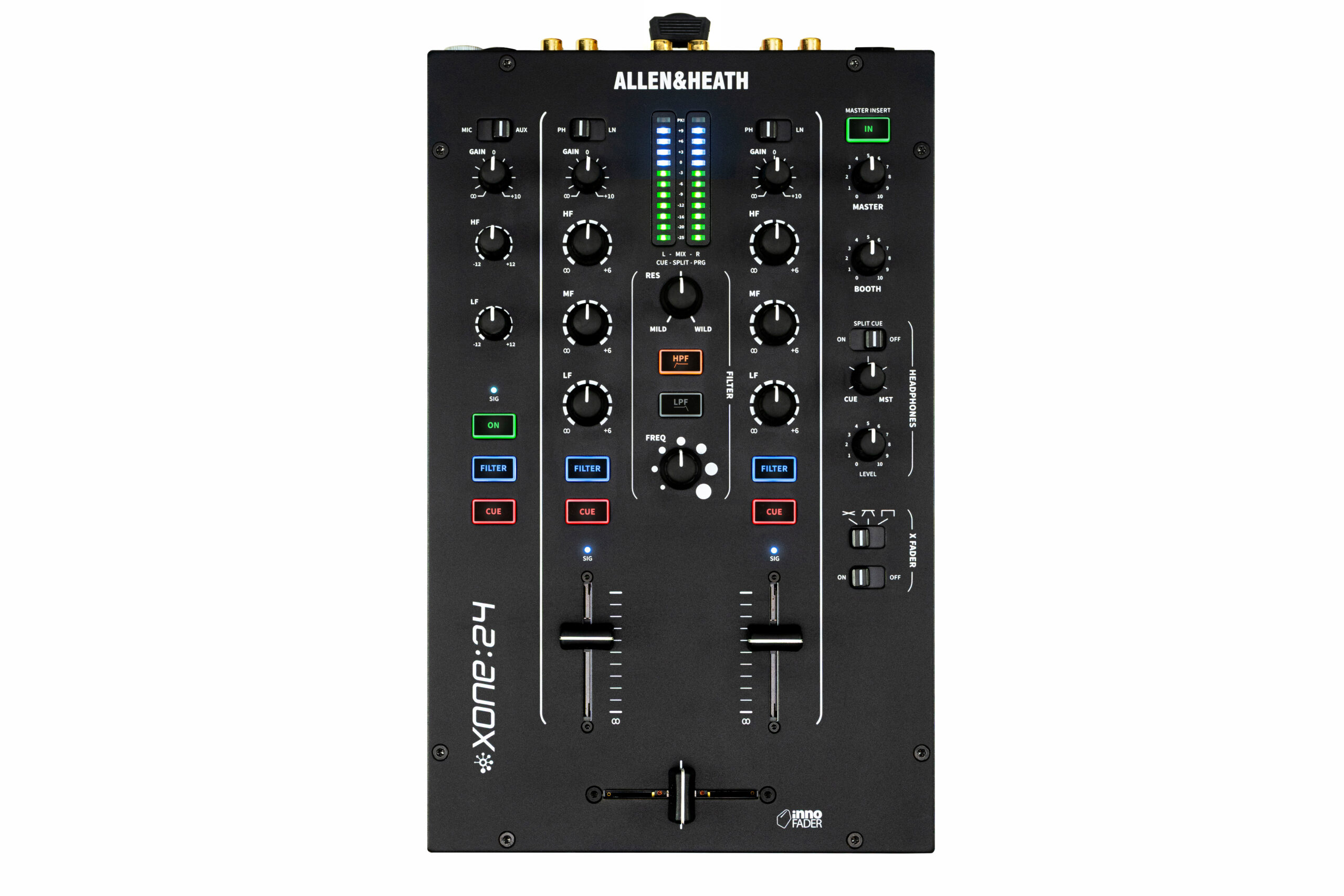

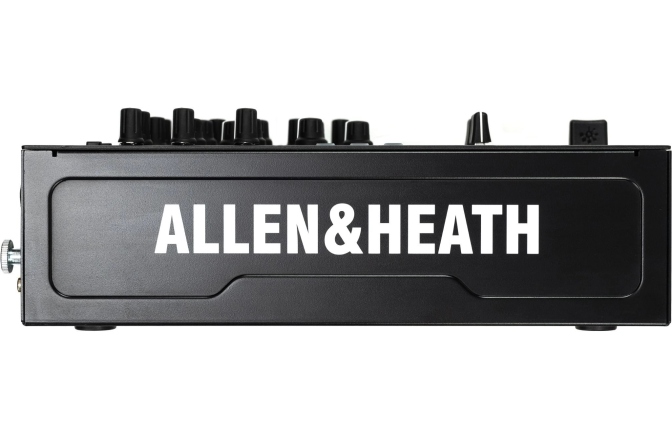

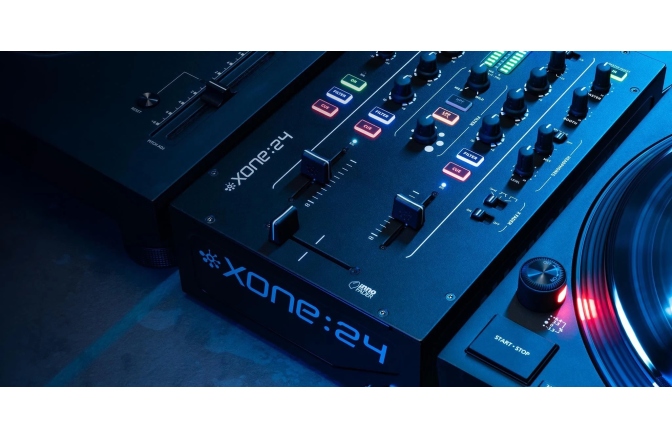

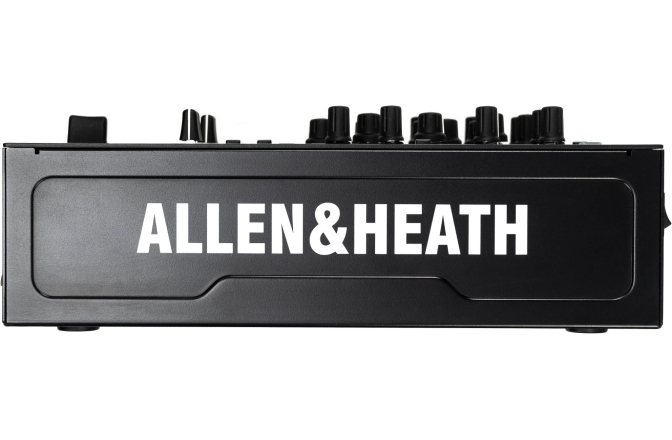

Allen&Heath Xone:24

Allen & Heath Xone:24 - analogue DJ mixer with two main channels and one auxiliary channel. Includes 3-band isolator EQ, Xone:VCF analogue filter with high-pass and low-pass modes, and Mini InnoFADER crossfader. Features Phono/Line inputs, microphone input, and Master, Booth, and Record outputs.

• Analogue DJ mixer
• Channels: 2 main channels + 1 auxiliary channel

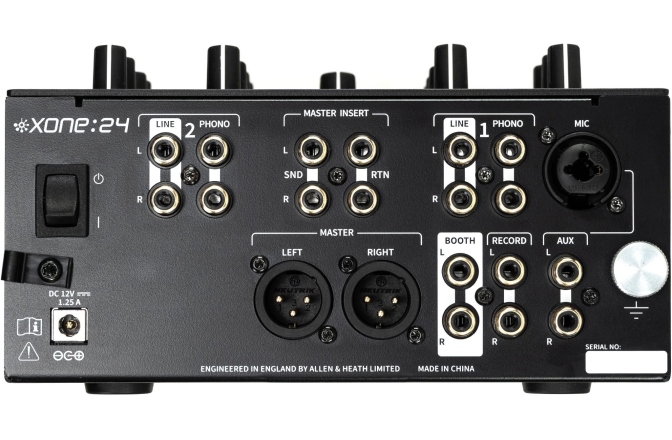

• Inputs CH1/CH2: Phono/Line
• Aux Input: RCA, Mic/Line
• Microphone input: 1 × combo XLR/TRS
• Line Inputs: 3 × RCA
• Phono Inputs: 2 × RCA
• EQ CH1/CH2: 3 bands, isolator type, with Total Kill function
• EQ Aux: 2 bands, ±12 dB
• Filter: Xone:VCF analogue, with HPF and LPF modes
• Filter control: adjustable frequency and resonance
• Crossfader: Mini InnoFADER, 45 mm
• Crossfader curves: 3 selectable modes
• Channel faders: 45 mm, VCA
• External effects: Master FX insert, stereo RCA Send/Return
• Master Output: 1 × balanced XLR
• Booth Output: 1 × unbalanced stereo RCA
• Record Output: 1 × unbalanced stereo RCA
• Headphone monitoring: Split Cue
• Headphone connectors: 6.3 mm and 3.5 mm jack
• Level indicators: RGB LEDs on channels and Master indicator with 12 LEDs
• Frequency response: 20 Hz – 30 kHz (±0.5 dB)
• Distortion: 0.01% typical at 1 kHz, 0 dBu
• Internal headroom: +18 dB
• Power supply: 100–240 V AC, 50/60 Hz
• Maximum consumption: 35 W
• Dimensions (L × W × H): 190 × 108 × 314 mm
• Colour: black
