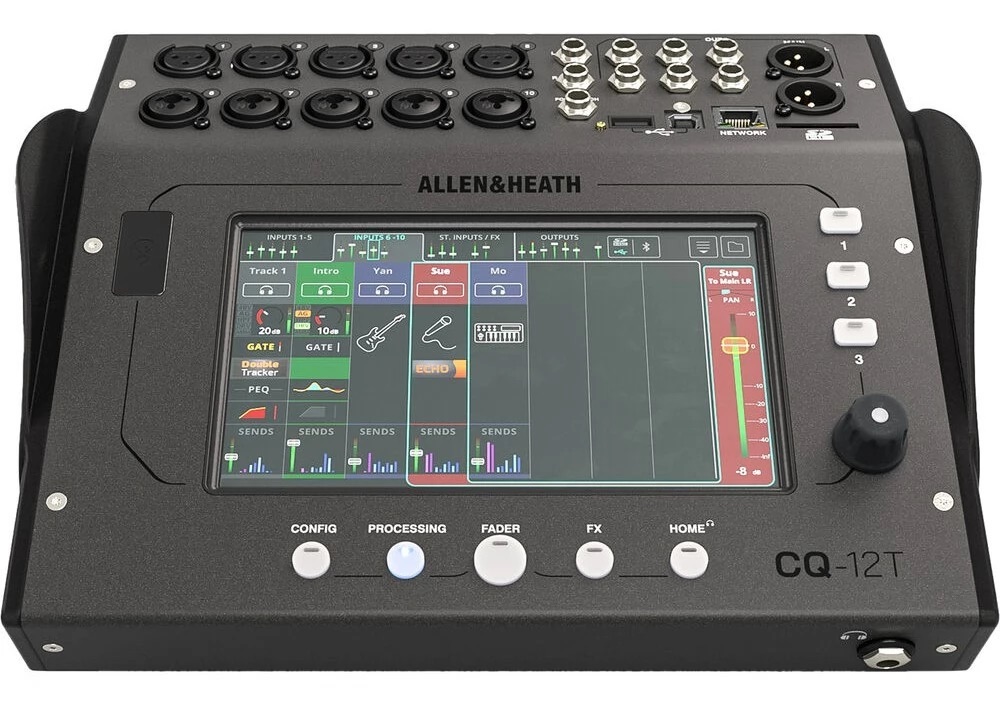

Allen & Heath CQ-12T - compact digital mixer with 12 inputs and 8 outputs, designed for audio recordings, rehearsals, live events and speech applications. It operates at 96 kHz and includes automatic gain adjustment assistance and detection and elimination of feedback frequencies.
It can also be used as a 16 × 16 USB audio interface and features a 7-inch touchscreen, built-in effects, and recording to SD card or USB devices.
Digital mixer, recorder and USB audio interface
Inputs / outputs: 12 inputs / 8 outputs
Processing: FPGA, 96 kHz
Connectivity:
Microphone inputs: 10 preamps, including 5 combo XLR/jack and 5 XLR
Phantom power: available on all 10 microphone channels
Stereo line inputs: 2 × 6.3 mm TRS jacks (L/R)
Main outputs: 2 × XLR
Monitor outputs: 6 × 6.3 mm TRS jacks
Headphone output: 1 × 6.3 mm jack
Talkback input: 1 × XLR
USB audio interface: 16 × 16 channels
USB connections: 1 × USB-B, 1 × USB-A
Recording/playback: stereo via USB and SD card slot
Connectivity: Ethernet, RJ45 and Bluetooth for stereo audio input
Remote control: CQ MixPad and CQ4You applications
Footswitch control: 1 × 6.3 mm jack
Screen: 7-inch touchscreen with rotary control
Gain assistance: Gain Assistant for adjusting and monitoring input levels
Feedback control: Feedback Assistant with up to 16 filters per output
Mixing modes: Quick Channels and Complete Channels
Effects: reverb, delay and modulation with dedicated instrument presets
