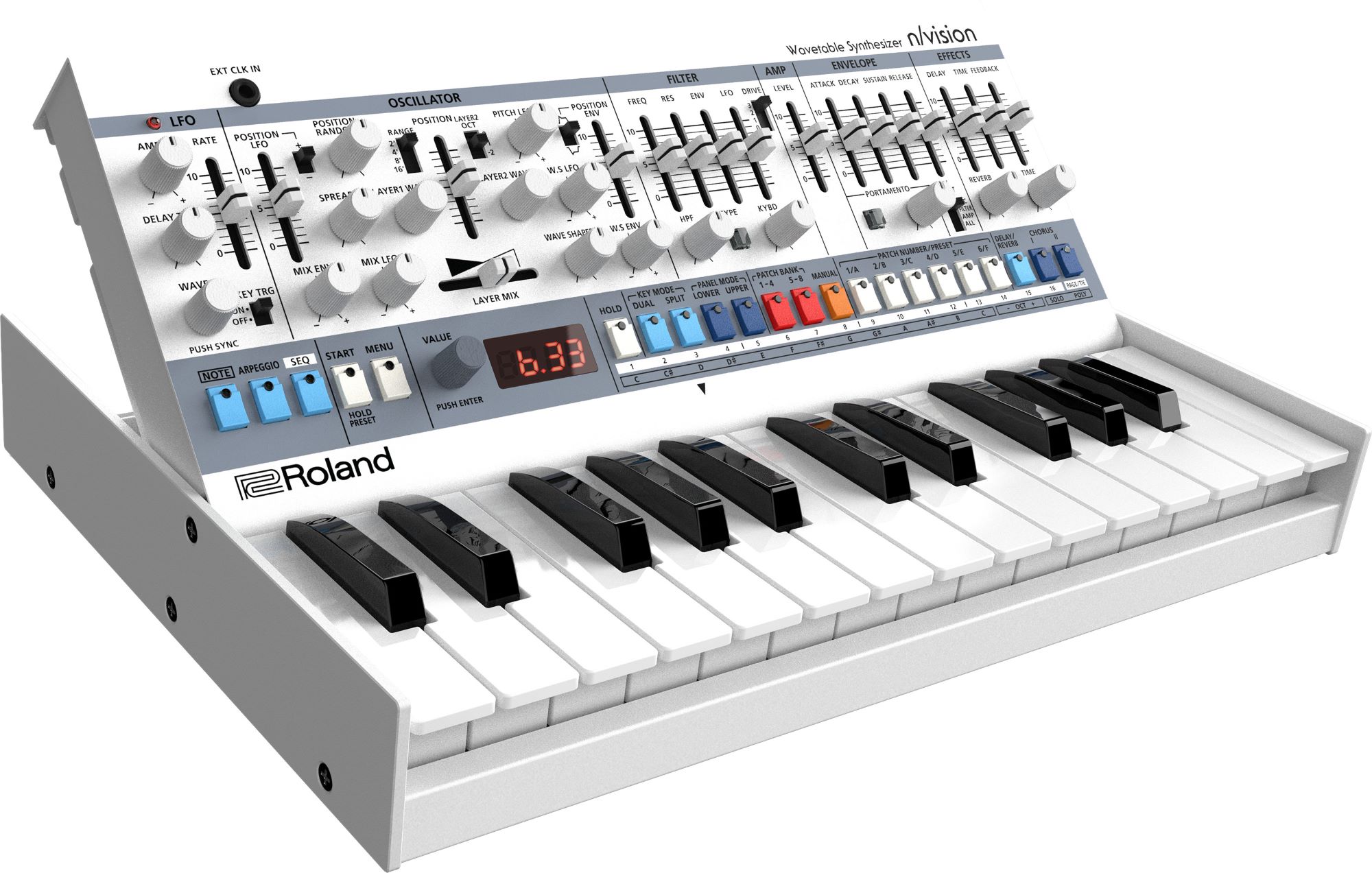

Roland n/vision

Roland n/vision - compact synthesizer with a maximum polyphony of 56 voices, based on two sound layers and waveform shaping functions. It includes filters, modulation, portamento, built-in effects, and a polyphonic sequencer in two parts. It can be powered via USB or with AA batteries.

• Compact modular synthesizer
• Maximum polyphony: 56 voices, depending on the sound generator load
• User memory: 240 patches and 96 patterns
• Sound architecture: 2 layers (Layer 1 and Layer 2)
• Oscillator control: Waveform, position, spread, mix, and wave shaping
• Modulation: LFO and envelope for position, pitch, and wave shaping
• Filter: Frequency, resonance, envelope, LFO, drive, and HPF
• Envelope section: Attack, Decay, Sustain, and Release
• Portamento: Yes
• Effects: Chorus (3 types), Delay (4 types), Overdrive, Fuzz, Drive, Bit Crusher, LOFI Comp, Phaser (2 types), Filter and Pitch Shifter (2 types)
• Sequencer: 2 parts, 64 steps, up to 8 polyphonic notes per part
• Arpeggiator: Integrated
• Performance modes: Dual, Split, Lower and Upper
• Display: 7-segment LED with 4 characters
• Connections:
  • Audio connectivity: Mini jack stereo output and headphone output
  • Audio inputs: Stereo MIX IN and mono EXT CLOCK IN
  • MIDI connectivity: MIDI IN and OUT
  • USB: USB Type-C, with audio and MIDI support
  • Power supply: USB bus power or 4 AA Ni-MH / alkaline batteries
• Consumption: 500 mA via USB
• Battery life with Ni-MH batteries: Approximately 6 hours, with 1,900 mAh batteries
• Dimensions (L × W × H): 308 × 209 × 54 mm
• Weight: 1.7 kg, with K-25m and batteries
• Included accessories: Quick Start Guide, safety documentation, 4 AA alkaline batteries, and K-25m keyboard
• Optional accessory: Boutique Dock DK-01 (sold separately)
