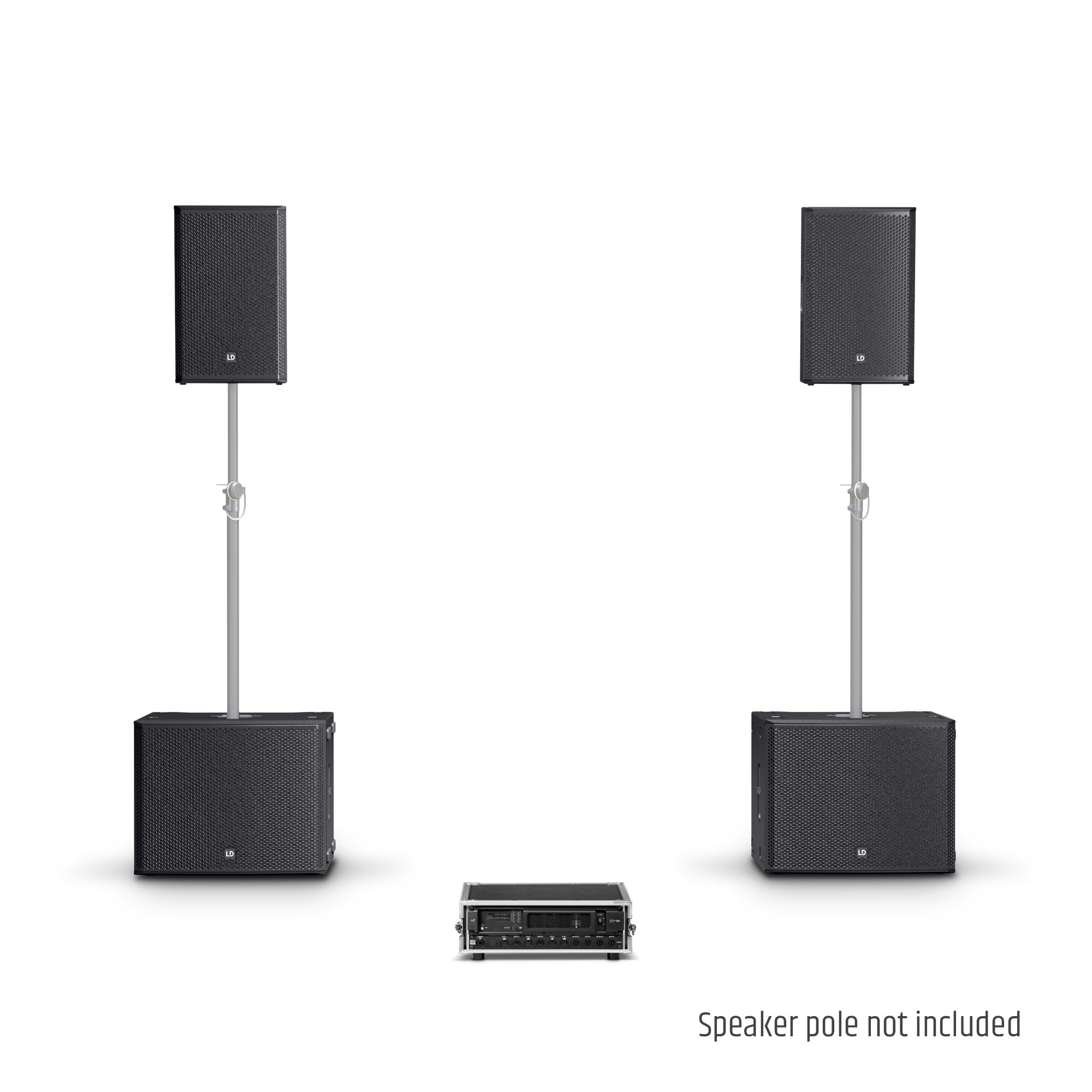

LD Systems Stinger G3 Power Set Passive - Excellent for live clubs and bands on tour, this set is a superb choice wherever the reinforcement of extremely dynamic music, with plenty of power, is of primary importance. We recommend this set for the following types of applications: bands, live clubs, events, AV presentations. STINGER G3 POWER SET A is suitable for an audience of up to 350* people.
Set consists of:
2 x STINGER 12 G3 – 12” passive speaker
2 x STINGER SUB 18 G3 – 18” passive subwoofer
1 x DSP 45K RACK – Power amplifier with DSP
2 x STINGER 12 G3 PC – Padded protective cover for speaker
2 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
2 x STINGER SUB 18 G3 CB – Wheel plate for subwoofer
*NOTE: specifications regarding audience size are approximate only. Actual figures may vary depending on the acoustics of the venue and environment.
Technical Specifications:
General:
System power (RMS): 2,400 W
Frequency response: 35 - 20,000 Hz
Dispersion (H x V): 90 x 50°
Weight: 156.24 kg
Wheel plate:
Material: Birch multiplex
Material thickness: 15 mm
Width: 540 mm
Length: 650 mm
Surface finish: Polyurethane
Colour: Black
Number of wheels: 4
Number of traction wheels: 2
Wheel diameter: 100 mm
Wheel manufacturer: Adam Hall
Weight: 7 kg
12 inch 2-way passive PA speaker:
Low/mid driver size: 12"
Width: 390 mm
Height: 627 mm
Depth: 377 mm
Woofer magnet: Ferrite
Woofer voice coil: 2.5"
Weight: 19.4 kg
Amplifier: Class D
Optimized CD Horn BEM
HF driver size: 1"
System power (RMS): 400 W
Peak power: 800 W
HF driver magnet: Ferrite
Frequency response: 58 - 20,000 Hz
HF driver brand: BMS
SPL (1W/1m): 99 dB
Max. SPL (peak): 125 dB
Dispersion (H x V): 90 x 50°
Line inputs: 1
Line outputs: 1
Input connections: Speakon compatible
Output connections: Speakon compatible
Amplifier channels (DSP44/45K): 3
Impedance: 8 Ohms
Material: 15 mm Plywood
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Monitor angle: 54°
Protective cover for Stinger® G3 PA 12" speaker:
Colour: Black
Material: Nylon 1680D
Padded thickness: 8 mm
Height: 600 mm
Width: 420 mm
Depth: 400 mm
Weight: 0.67 kg
18" passive Bass Reflex PA subwoofer:
Low driver size: 18"
Width: 677 mm
Height: 547 mm
Depth: 740 mm
Woofer magnet: Ferrite
Woofer voice coil: 4"
Weight: 40.6 kg
System power (RMS): 800 W
Peak power: 1600 W
Frequency response: 35 - Crossover Hz
SPL (1W/1m): 100 dB
Max. SPL (peak): 129 dB
Impedance: 8 Ohms
Line inputs: 1
Line outputs: 1
Input connections: Speakon compatible
Output connections: Speakon compatible
Amplifier channels (DSP44/45K): 2
Material: 18 mm Plywood
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Padded protective cover for Stinger® G3 18 inch subwoofer:
Colour: Black
Material: Nylon 1680D
Padded thickness: 8 mm
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.5 kg
4-channel DSP power amplifier with patch bay in 19 inch rack case:
