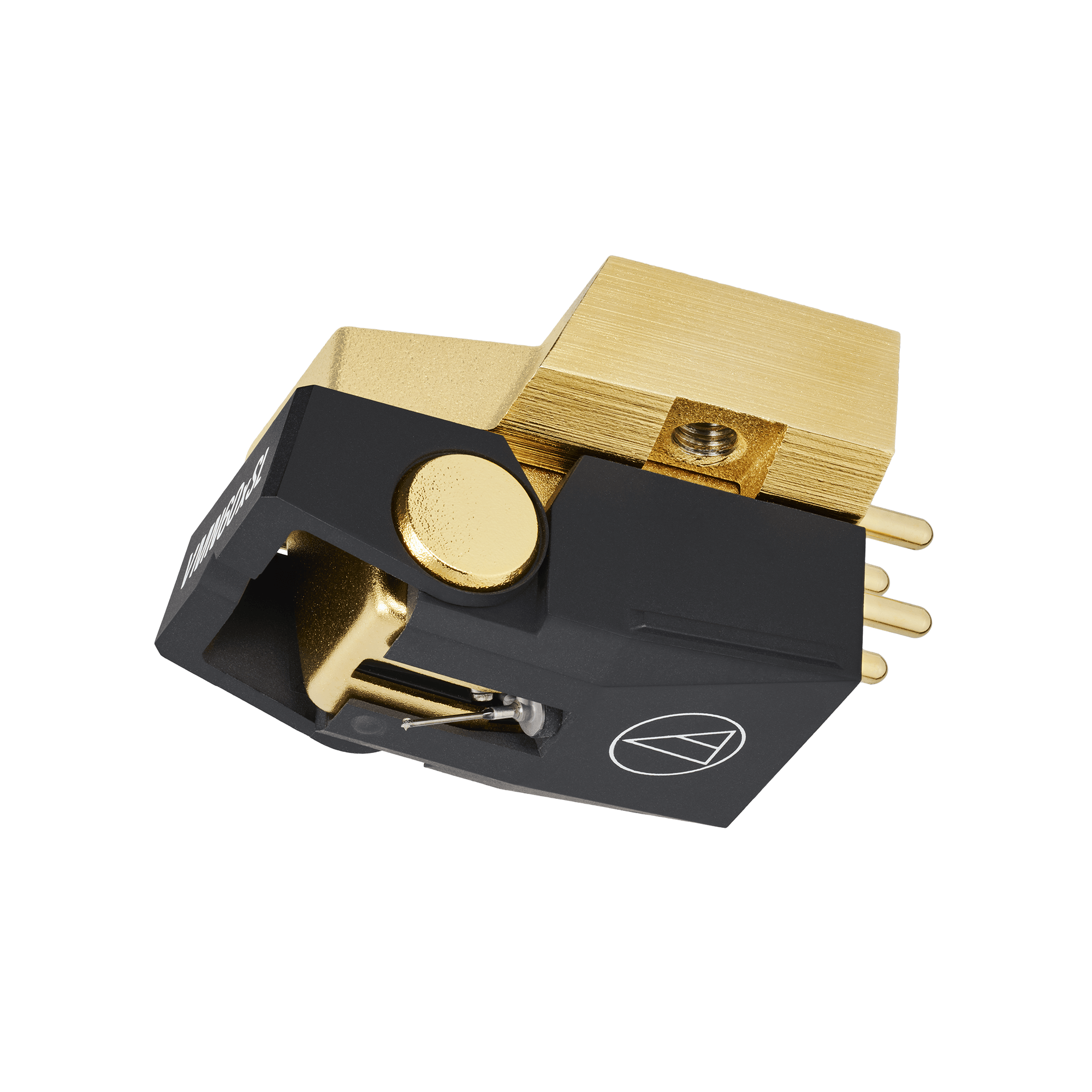

Audio-Technica AT-VM760xSL - Pickup cartridge with dual moving magnets, nude stylus with special line contact and boron cantilever, designed for high-end turntables, advanced playback of stereo vinyl, refined music genres (classical, jazz, ambient, progressive rock).
AT-VM760xSL is the flagship model of the VMx series, aimed at audiophiles who desire the cleanest and most precise analog playback, faithful to the artist's intention.
Main features:
Pickup cartridge, with dual magnets and nude stylus with special line contact and boron cantilever

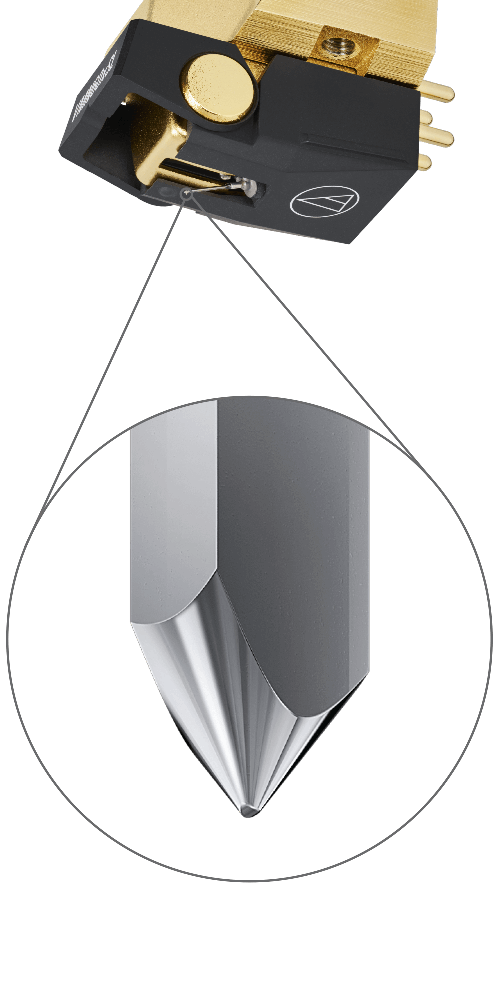

Nude stylus with special line contact – extended contact area for extraordinary detail and minimal wear

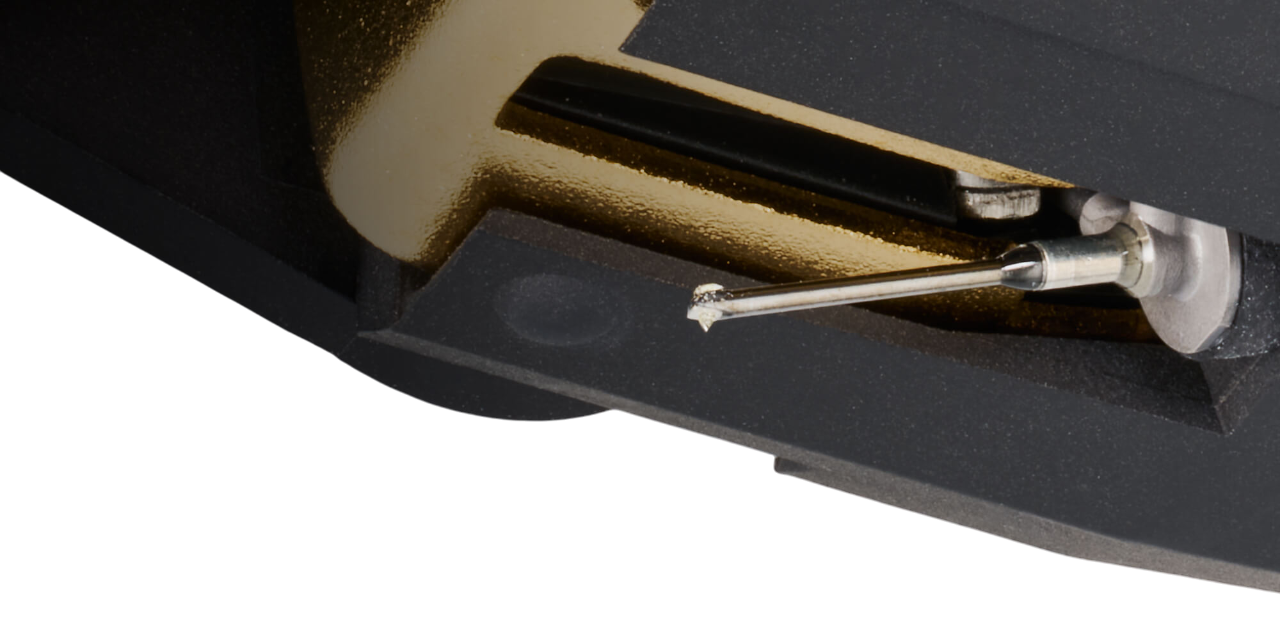

Solid boron cantilever – fast transmission, superior precision in dynamic passages
Output voltage: 3.7 mV
Channel separation: 26 dB at 1 kHz
Extended frequency response: 20 – 30,000 Hz
Rigid die-cast aluminium body – minimising vibrations and resonances

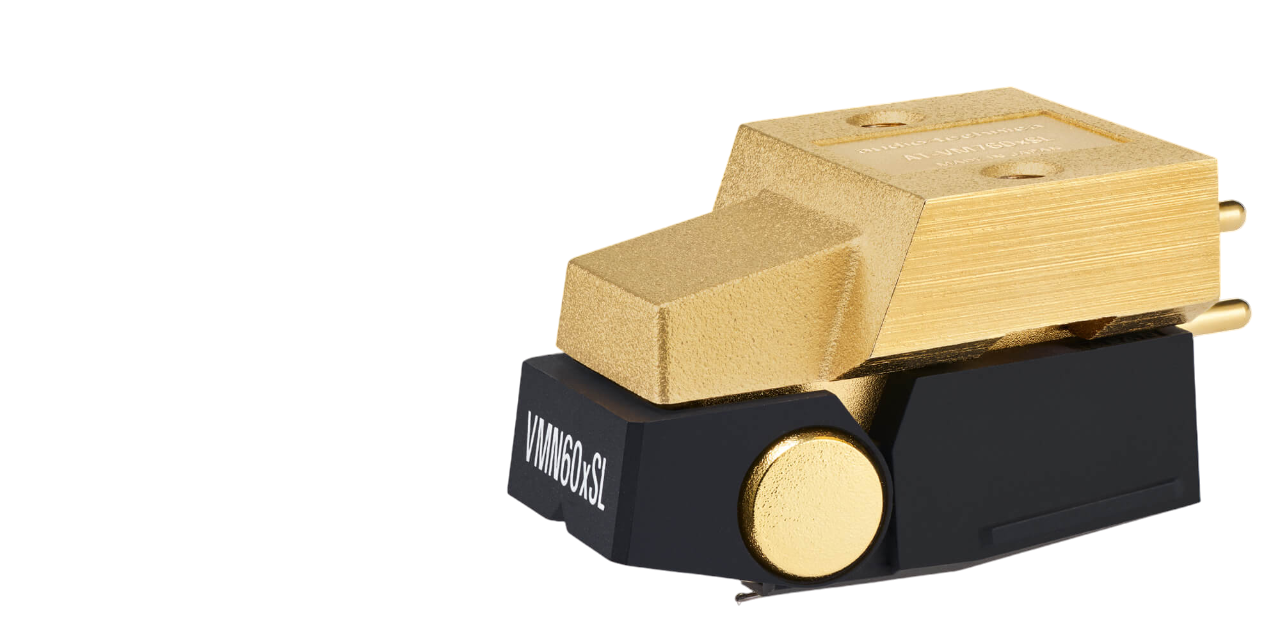

Detachable stylus and VM/VMx interchangeable – allows for sound customization
Easy mounting: threaded inserts + stylus protector with V-shaped guide
Distinctive features:

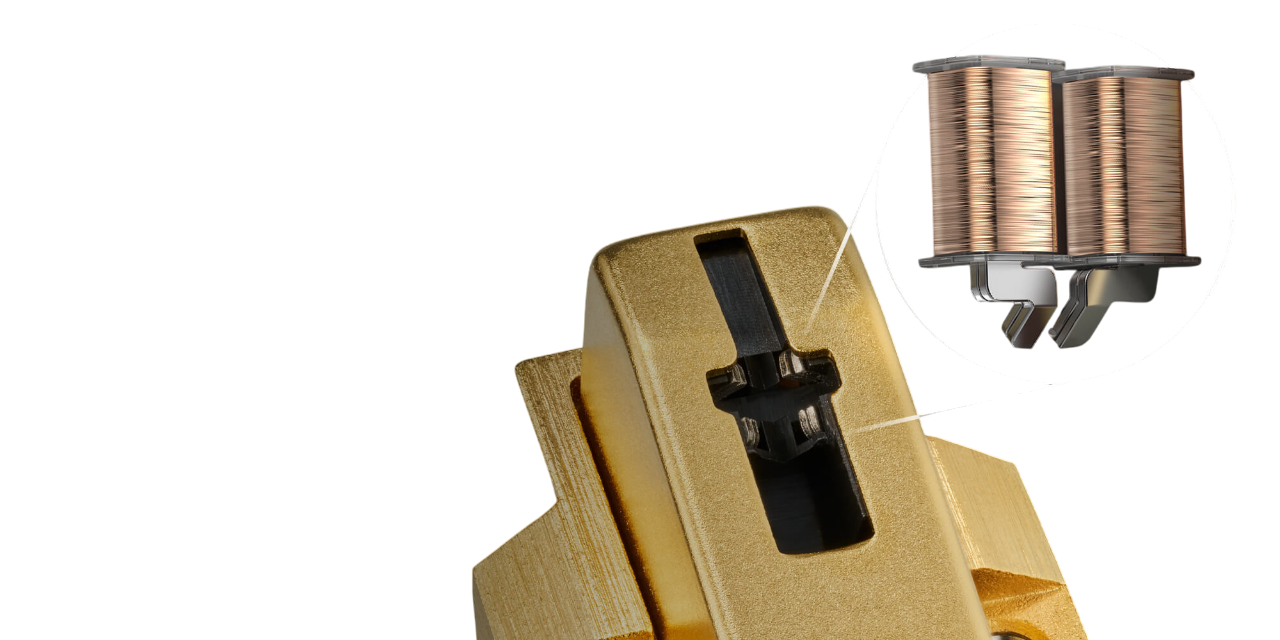

Toroidal coil: two PCUHD coils stacked on each channel for maximum electromagnetic efficiency
PCUHD® copper (ultra pure): rich audio reproduction in harmonics and details
Reduced number of turns: fast transient response for clear sound, with natural attack and decay
Central shielding plate: reduces crosstalk, coherent and well-defined stereo image
Included:
M2.6 screws (lengths: 10 mm × 2, 8 mm × 2, 5 mm × 2)
Washers × 2
Non-magnetic screwdriver
Stylus cleaning brush
Threaded hole: M2.6 × 2
Technical specifications:
Type: Dual moving magnet (VMx)
Stylus: Special line contact (1.5 × 0.28 mil)
Rod: Solid boron, Ø 0.28 mm
Coil impedance: 3.2 kΩ
Coil inductance: 480 mH
DC resistance: 750 Ω
Recommended load impedance: 47 kΩ
Recommended loading capacitance: 150 – 250 pF
Vertical tracking angle: 20°
Static compliance: 17.5 × 10⁻⁶ cm/dyne
Dynamic compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
Channel balance: 1.0 dB (1 kHz)
Dimensions: 29 × 18.3 × 17.5 mm
Weight: 8.8 g
Compatible replacement stylus:
AT-VMN60xSL (included – special line contact, nude, solid boron)
AT-VMN10xCB, AT-VMN20xEB, AT-VMN30xEN, AT-VMN40xML, AT-VMN45xML, AT-VMN50xSH etc.
✔ Compatible with all styluses from the VMN/VMNx series for additional customization
