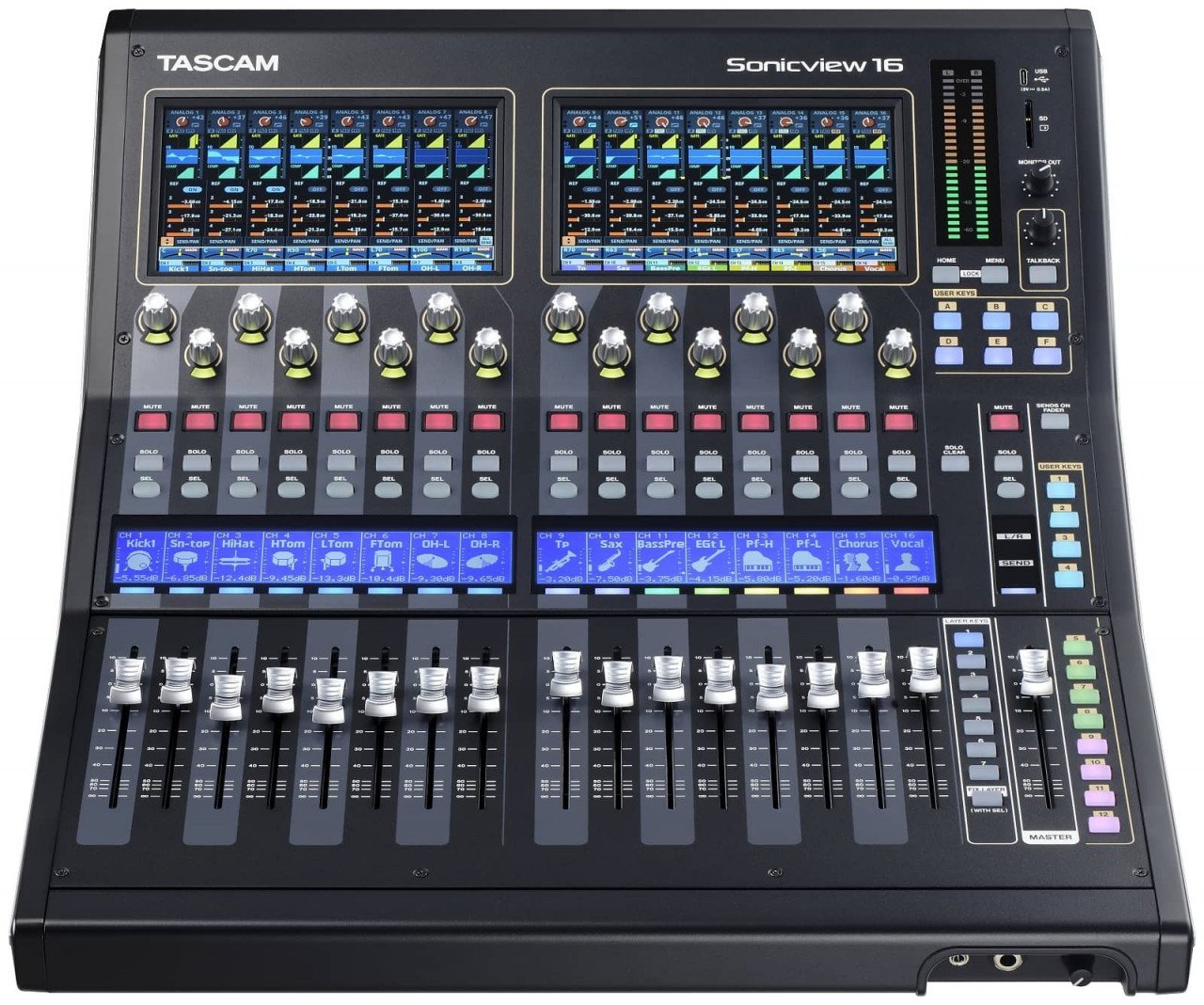

Tascam Sonicview 16

Sonicview 16 is a digital mixer with 2 touch-screen displays, microphone preamplifier on 16 channels, Dante audio interface 44 in / 24 bus, USB and optional multitrack recording capability.

• Tascam VIEW (Visual Interactive Ergonomic Workflow) interface allowing intuitive operation with three different viewing modes
• Multiple displays via two 7-inch colour touch-screen displays
• 44 input channels (40 mono, 2 stereo)
• 22 flexible output buses plus main L/R bus with 31-band graphic EQ
• 54-bit float-point FPGA mixing engine, 96 kHz sampling frequency
• Ultra-low latency: 2× Fs (20.8 μs) in mixing engine, 0.51 ms analog-to-analog
• 32-bit/96 kHz A/D and D/A conversion
• Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifiers.
• Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110
• 32-bit/96 kHz USB audio interface (32 inputs/outputs)
• 16 microphone/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
• Four multi-effect processors
• Tascam Sonicview Control software for Windows, macOS and iPadOS allows remote control and offline editing
• Two Tascam expansion slots
• SDXC recorder with 32 tracks, MADI, AES/EBU and analogue I/O cards available for the second slot
• Faders can be removed and replaced individually, the top panel can be disassembled without disconnecting cables for easy maintenance
• 18 customizable user buttons, 8 DCA groups
• 16 +1 motorized faders of 100 mm
• 16 encoders with coloured LEDs
• 16 LC displays with coloured LEDs for channel name, input level and gain meter
• Internal recording/playback with 2 tracks using SD card or USB flash drive
• 8 TRS line inputs, 2 pairs of RCA stereo inputs, XLR talkback input
• XLR monitor outputs
• Standard (6.3 mm) and mini (3.5 mm) headphone outputs
• Wordclock In, Out/Thru
• 1000BASE-T gigabit Ethernet
• GPIO 8-in/8-out on DB25 connector
• Footswitch TRS connector
• XLR 4-31 lamp connector
