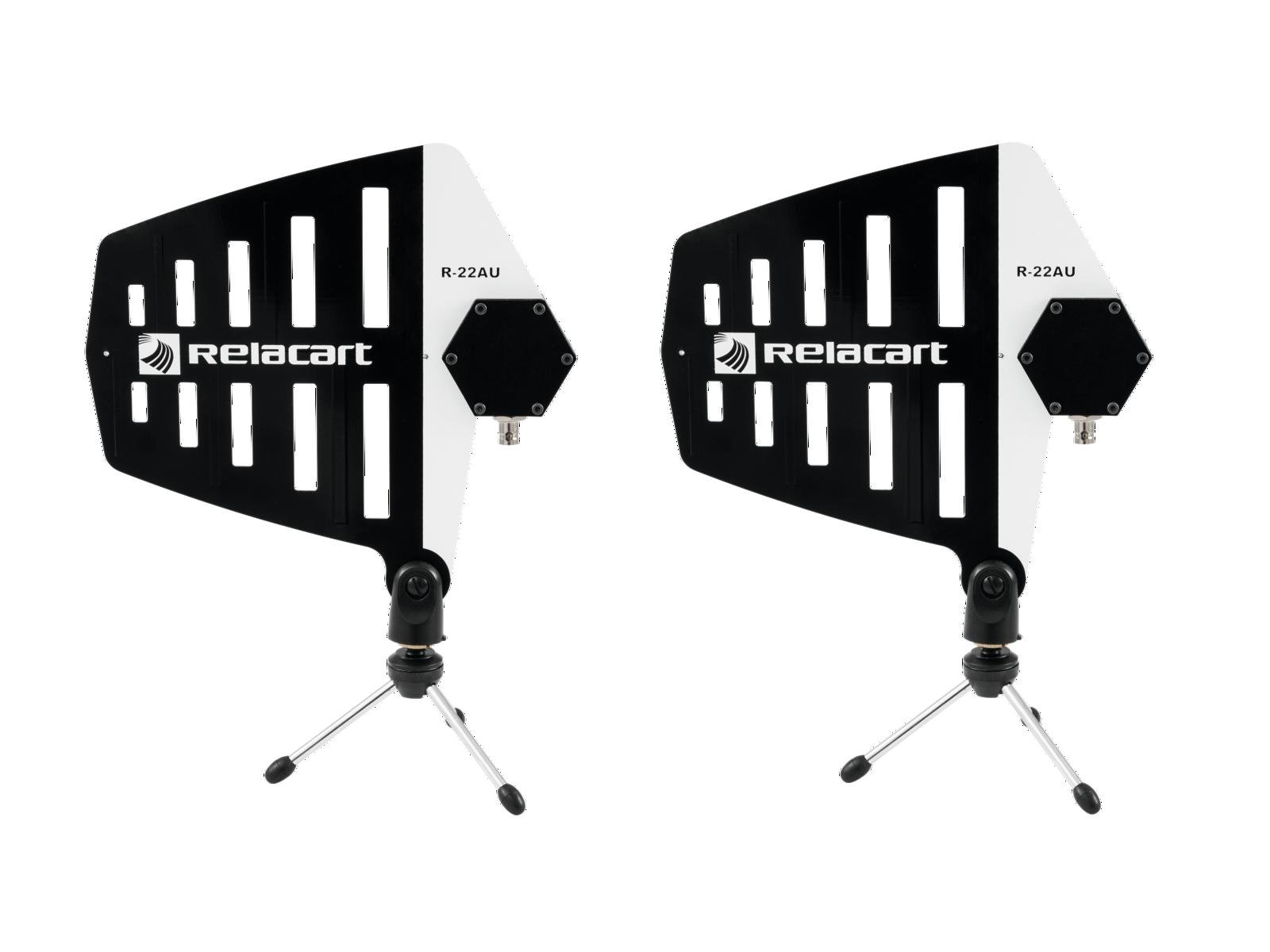

Relacart R-22AU Wide-band directional active Antenna 2x

Wide-band directional antenna

active directional antennas with built-in amplifier.
ideal for use with the RELACART R-14D antenna distributor.
wire length of 1.5 cm (5/8").
cardioid polar pattern for focused reception.
uHF 640-950 MHz, license-free in many parts of Europe.

480⁹⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2401 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Relacart R-22AU Wide-band directional active Antenna 2x Add to cart: 480⁹⁷ €

Wide-band directional antenna

Active directional antennas with built-in amplifier
For use with the RELACART R-14D antenna distributor
Wire of 1.5 cm (5/8")
Polar pattern: cardioid
UHF 640-950 MHz License-free and approved in large parts of Europe

Package contents

2 x antenna, 1 x user manual, 1 x declaration of conformity

Type:	Antennas and distributors
Power supply:	8-12 V DC
Power connection:	Via BNC (M)
Polar pattern:	Cardioid
Impedance:	50 ohms
Gain:	Output: 5 dB up to +13 dB
Control elements:	Power switch of the transmitter (high-low)
Connections:	Antenna via BNC (F)
Frequency band:	UHF 640 - 950MHz
Signal reception:	6 dBi
Dimensions:	Width: 23.7 cm Height: 24.5 cm
Weight:	690 g
