Audac SCP 230

Compact Amplifier

compact power amplifier with RMS power of 2 x 300 W @ 4 Ohm or 600 W @ 70/100 V.
frequency response of 20 Hz - 20 kHz with low total harmonic distortion.
multiple input and output connectors including EURO TERMINAL and RJ45.
convection cooling and Class D technology for efficient performance.
compatible with WP2xx series wall panels (not included).

978²⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

4883 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audac SCP 230 Add to cart: 978²⁸ €

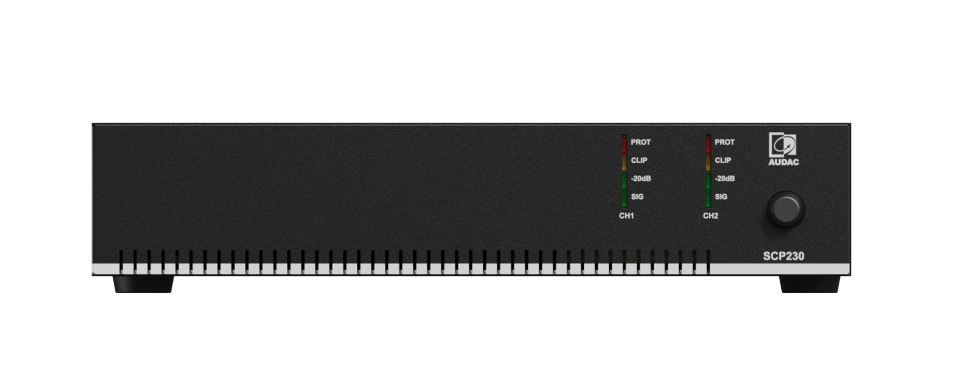

Audac SCP 230 - power amplifier with a compact design that operates on two channels, with an RMS power of 2 x 300 W @ 4 Ohm or 600 W @ 70/100 V, ideal for commercial use. It is also compatible with remote wall input panels from the WP2xx series.

RMS/AES Power
- at 4 Ω Stereo 2 x 300 W
- at 8 Ω Stereo 2 x 150 W
- at 70/100 V bridge 600 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
THD+N (at 1 kHz) <0.05%.
Signal / Noise > 95 dB
VU LED Bar Indicators (front)
Voltage / Impedance Outputs 70-100 V / 4 Ω
Connectors:
- EURO TERMINAL with 4 pins (pitch - 5.08 mm)
- EURO TERMINAL inputs with 3 pins (pitch - 3.81 mm)
- IEC C14 Connector
- RJ45 Connector
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Control
- Gain control potentiometers (rear)
- Stereo Low Z & Mono High Z switch
- 70/100V switch
Convection Cooling
Class D Technology
Dimensions 217.5 x 44 x 300 mm
Weight 2.70 kg
Construction Steel
Mounting 1/2 19" / 1 HE or on the table
Compatible Accessories - WP2xx Universal Wall Panel (NOT INCLUDED)
