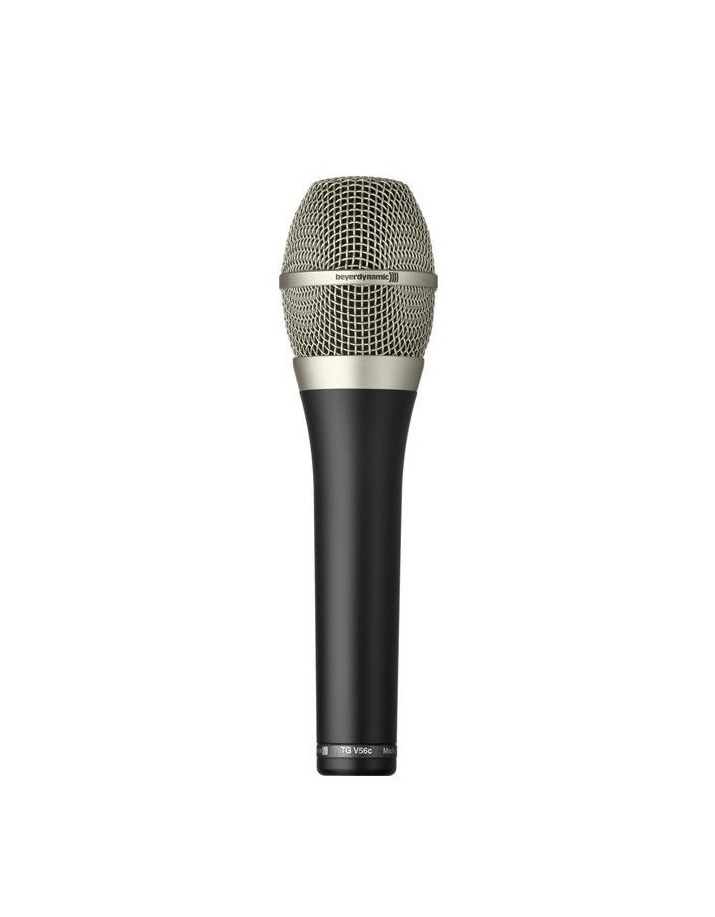

Beyerdynamic TG V56c – Vocal dynamic microphone, with a cardioid polar pattern, designed to provide clear and natural sound for lead or background vocals. Due to its cardioid characteristic, it offers excellent feedback rejection and captures sound from the front, reducing noise from the sides and rear, while the sturdy housing will withstand the most intense rehearsal or concert sessions.
Capsule type: Electret condenser (back electret)
Capsule principle: Pressure gradient
Polar characteristic: Cardioid
Frequency response:
At short distance: 40 – 20,000 Hz
At 1 meter: 65 – 20,000 Hz
Output voltage: 3.3 mV/Pa (-49.5 dBV) ±2.5 dB
Nominal impedance: 190 Ω
Load impedance: 1 kΩ
Max SPL: 140 dB SPL at 1 kHz
Signal-to-noise ratio: 62 dB [CCIR, Q-Peak]
Equivalent SPL level: 22 dB [A, RMS]
Power supply: Phantom 12 – 48 V (recommended 48 V)
