img Stage Line TXA-800ST

Wireless Transmitter

16 selectable UHF frequencies (863.1-864.9MHz) for versatile use.
simultaneous operation of up to 8 transmitters with different frequencies.
compatible with TXA-800 series amplifiers and ATS-16 receivers.
features stereo line input, balanced XLR microphone input, and headphone output.
rack mountable in 19" with included brackets for easy installation.

601¹⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

2966 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

img Stage Line TXA-800ST Add to cart: 601¹⁴ €

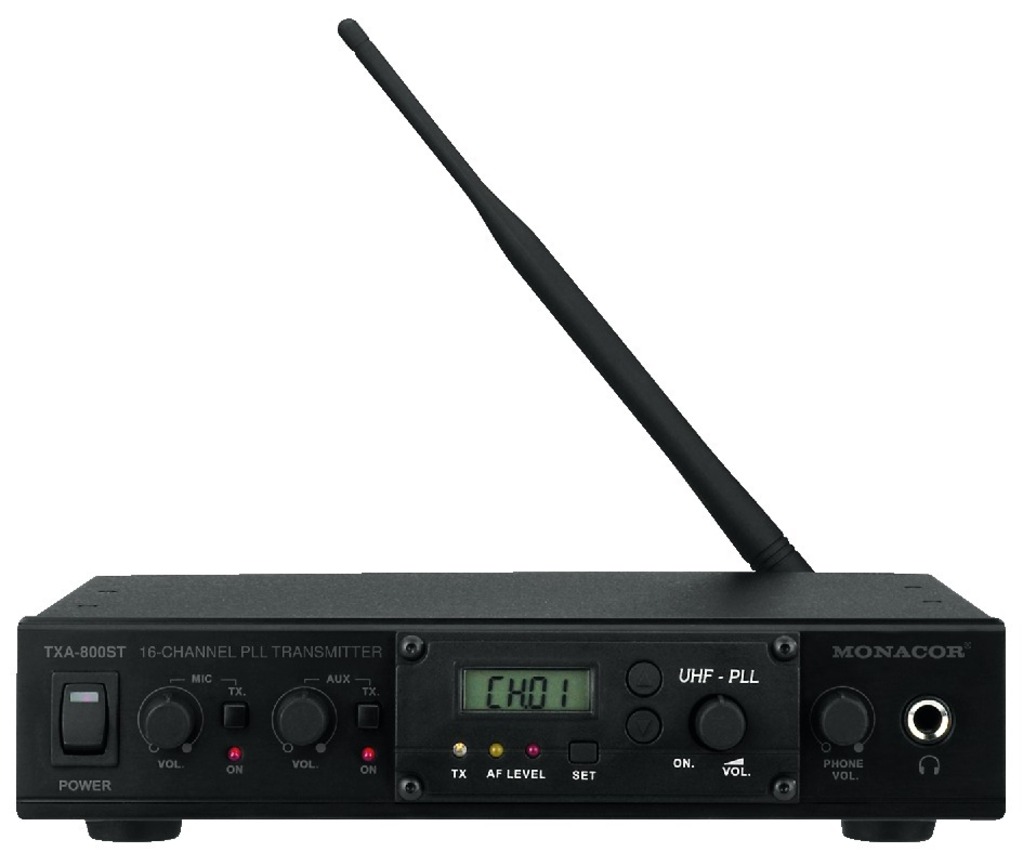

StageLine TXA-800ST, professional mono PLL transmitter with 16 channels on frequencies 863-865, for microphone or line signals:

compatible with portable amplifiers from the TXA-800 series
can be combined with TXA-800 systems or used as an info-guide system or other applications where an audio source needs to be distributed to multiple receivers
can be used together with receivers and transmitters from the ATS-16 series
simultaneous operation of 8 transmitters with different frequencies
16 selectable UHF frequencies (863.1-864.9MHz)
stereo line input via RCA L/R
balanced microphone input XLR and 6.3 mm jack
line output RCA
headphone output with amplifier
LCD display for channel/frequency, LED display for signal and peak signal
DC power output to power an additional transmitter
rack mountable in 19" with included brackets
dimensions: 215 x 50 x 210 mm
weight: 1.25kg
