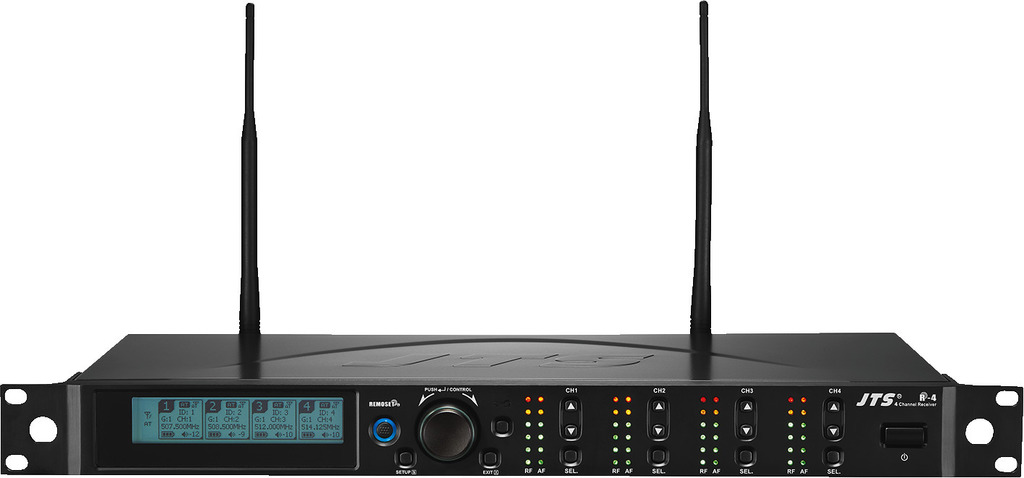

JTS R-4/5

JTS R-4/5, wideband UHF PLL wireless receiver with diversity and 4 channels:

• bandwidth: 36 MHz, UHF band 506 - 542 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1441 individually selectable frequencies
• RF output and power supply output allowing easy cascading connection of up to 10 x R-4/5 receivers without additional splitter
• REMOSET technology for receiver/transmitter synchronization
• automatic scanning function
• pilot tone Squelch and noise disabled
• LED for indicating RF level and AF level
• display for indicating transmitter battery status, frequency setting, active antenna
• XLR outputs per channel, balanced
• XLR output and 6.3 mm output for mixed signal
• mic/line signal switch for outputs
• metal housing
• audio frequency range: 50 Hz -18 kHz
• dynamic range: > 105 dB
• dimensions: 485 x 230 x 44 mm
• weight: 2.65 kg
