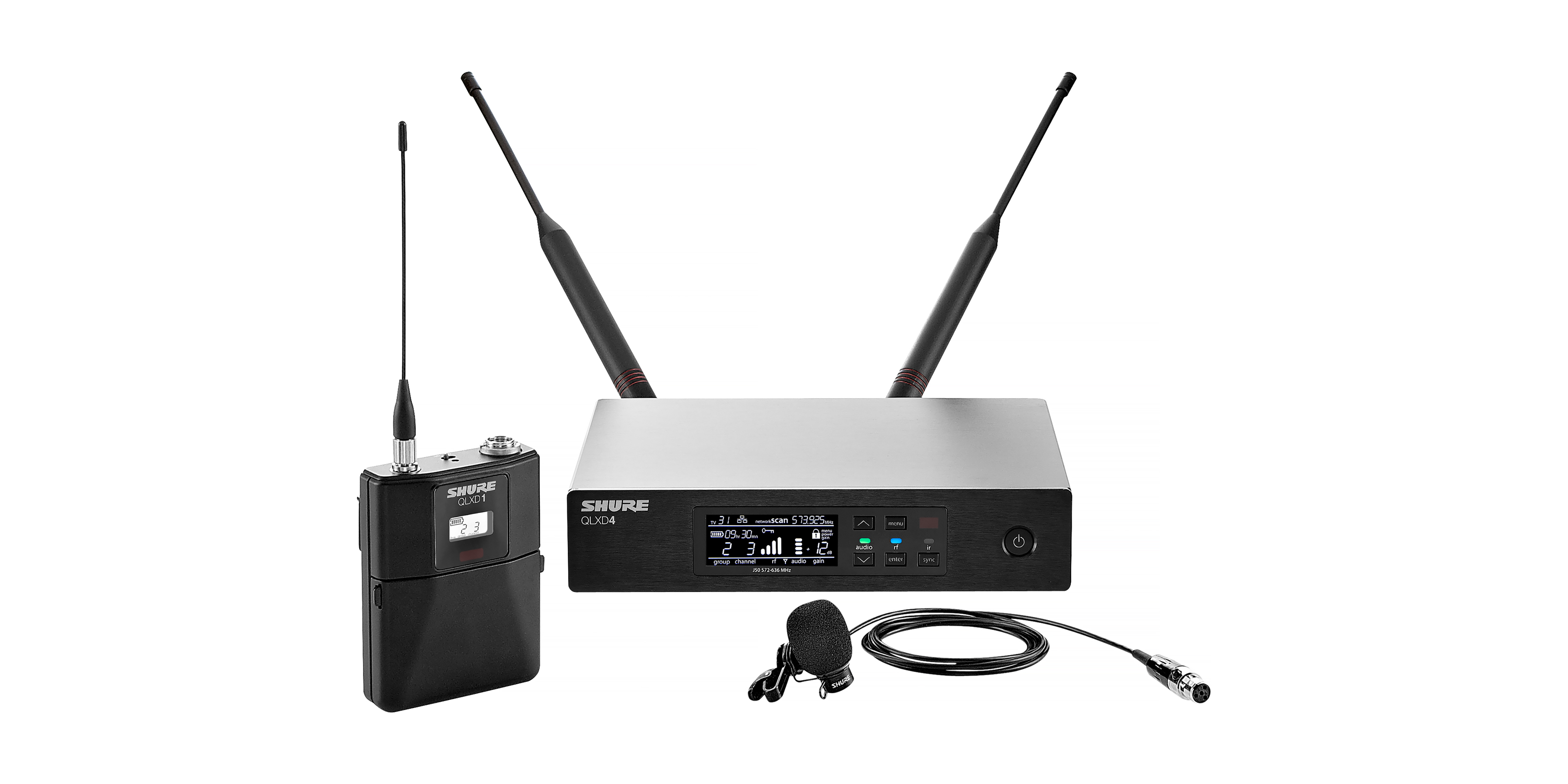

Shure QLXD14 / 85, wireless set on UHF, receiver-transmitter and lavalier microphone WL185 with digital transmission. The QLXD systems combine professional features and ease of use thanks to the 24-bit digital transmission and very efficient use of the RF spectrum. The automatic scanning function quickly finds open frequencies and the IR sync function sets the transmitter frequency with a single button press.
The QLXD4 receiver has networking capabilities via Ethernet, scans frequencies of units in the network and allows remote control and monitoring from a PC/Mac via Wireless Workbench® software or iOS via the ShurePlus™ Channels Mobile App.
64 MHz bandwidth
up to 60 compatible preset channels
can use up to 17 simultaneous systems / 6 MHz TV channel or 22 systems / 8 MHz channel
predictive digital frequency switching
AES 256-bit encryption for transmission security
adjustable audio gain up to 60 dB
LCD display
audio and RF signal indicators
detachable antennas
switchable microphone/line output via XLR
instrument output via 1/4" jack
aluminium housing
dynamic range up to 120 dB
operating range: max. 100 meters in open field
image rejection: >70 dB, typical
RF sensitivity: -97 dBm at 10-5 BER
QLXD1 transmitter:
RF power: 10 mW
dynamic range 120 dB
AES 256-bit encryption
up to 9 hours of operation with AA batteries or 10 hours with lithium-ion batteries
