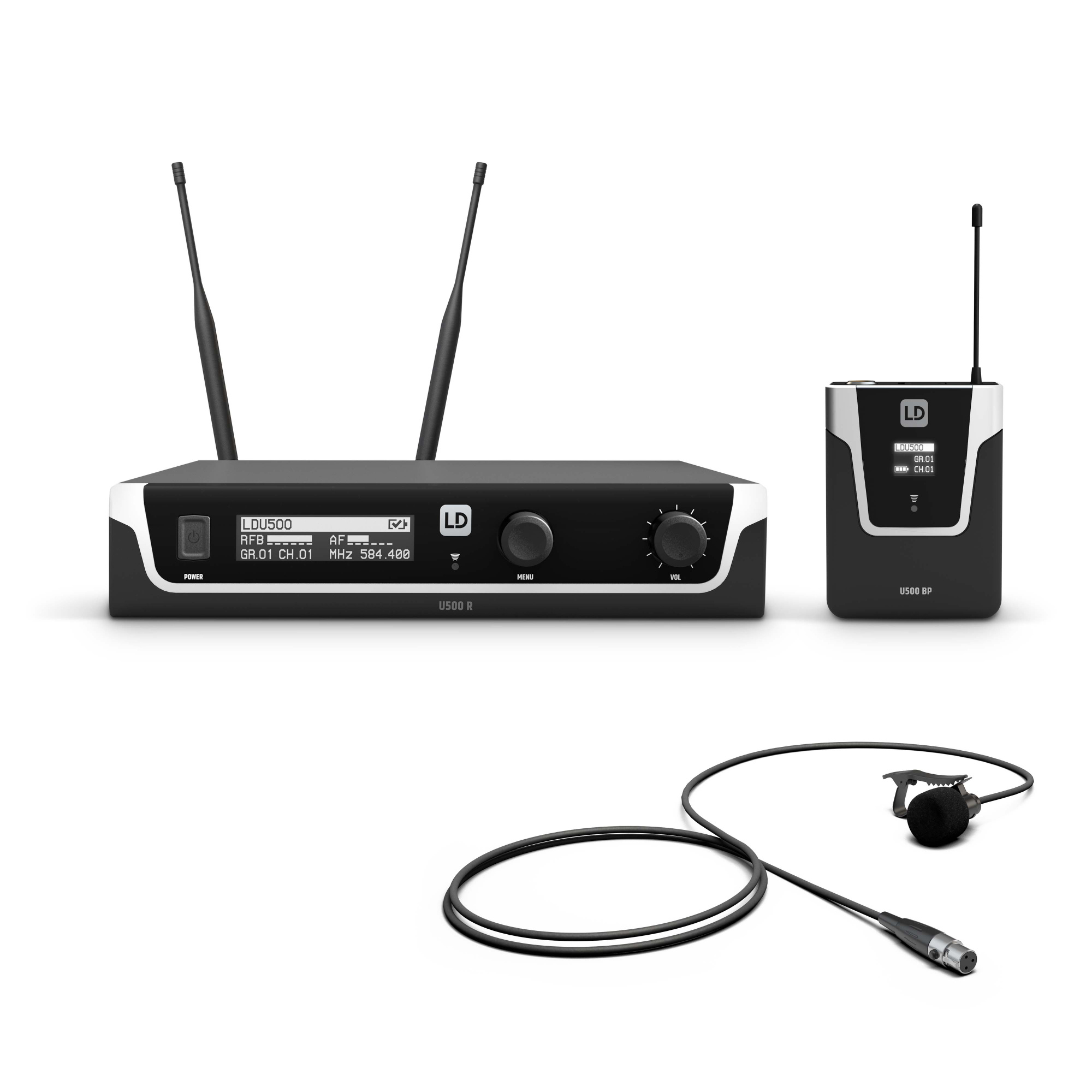

LD Systems U506 BPL - a wireless system composed of a wireless receiver and a pocket transmitter with lavalier microphones. The transmission power is selectable up to 30 mW and allows a transmission distance in free field of over 100 m. The system features automatic scanning to find the best available frequency and convenient infrared synchronization between the receiver and transmitter. The high-contrast OLED display provides an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength, and battery status. You can even enter individual user names.
In addition to the squelch function, the silent pilot tone of the transmitter ensures reliable operation, while interference protection interrupts the receiver if signals without this tone are present. The efficient U500 technology and high-quality components provide clear transmission, free from distortion and latency. The low power consumption allows the transmitter to operate for up to 10 hours powered by 2 AA batteries.

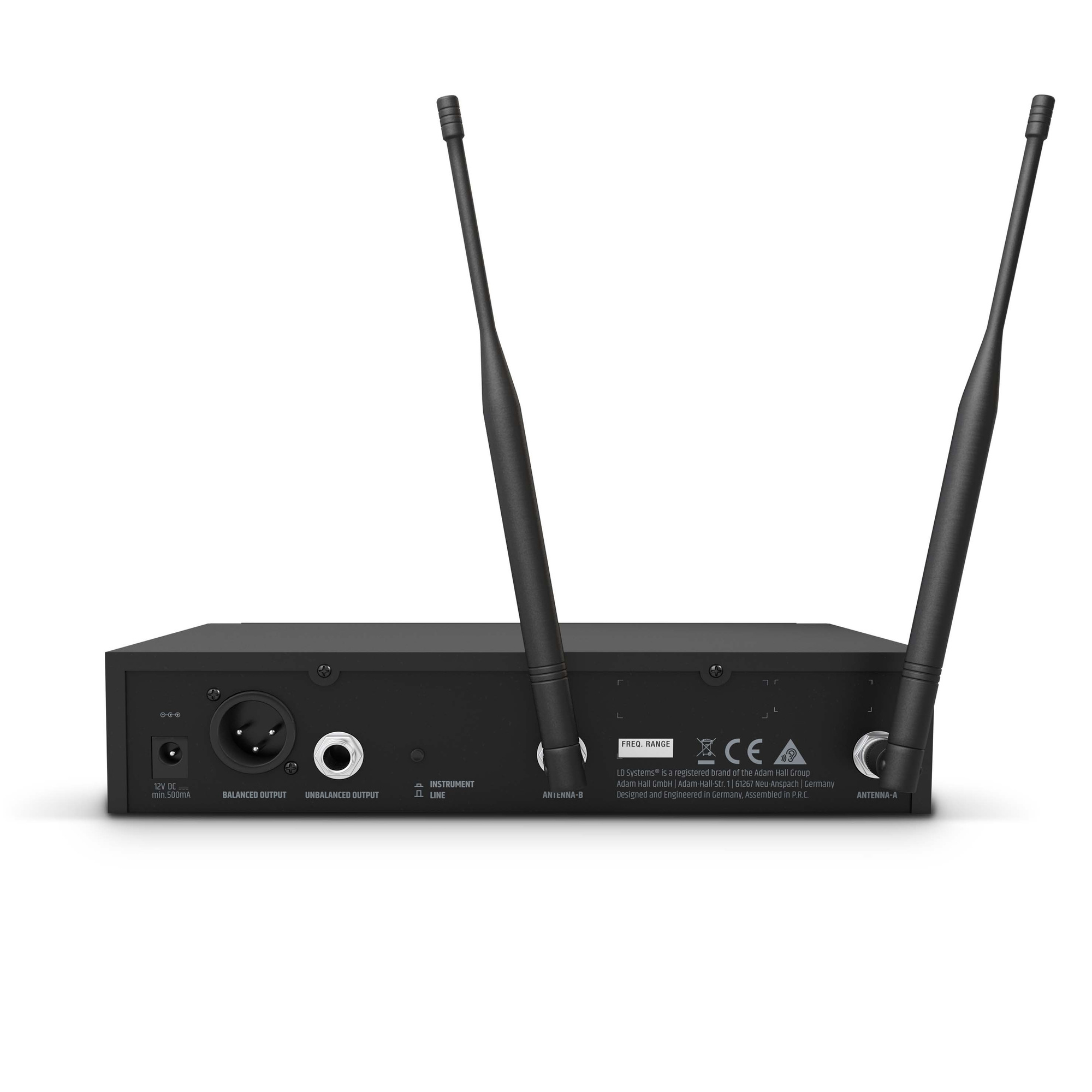

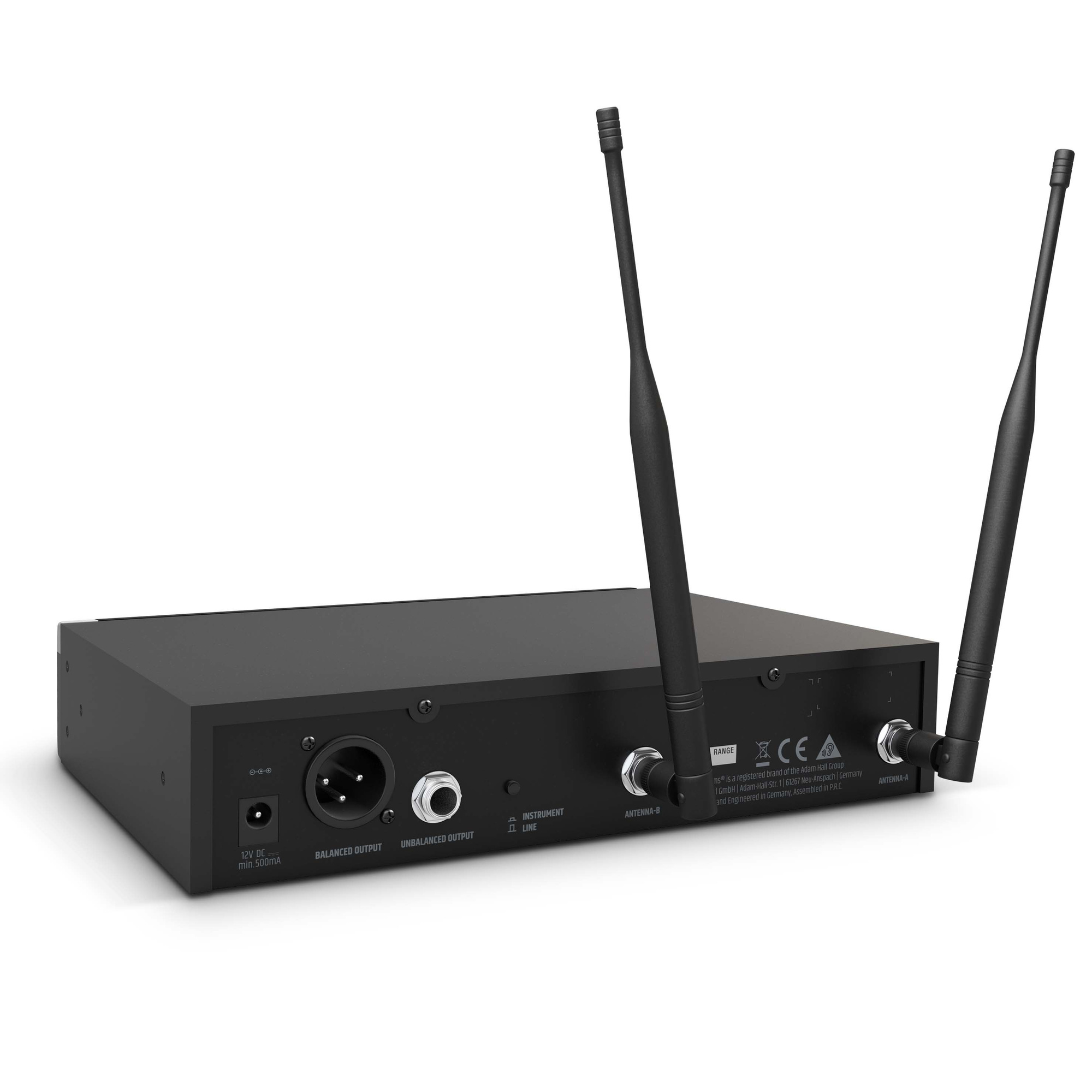

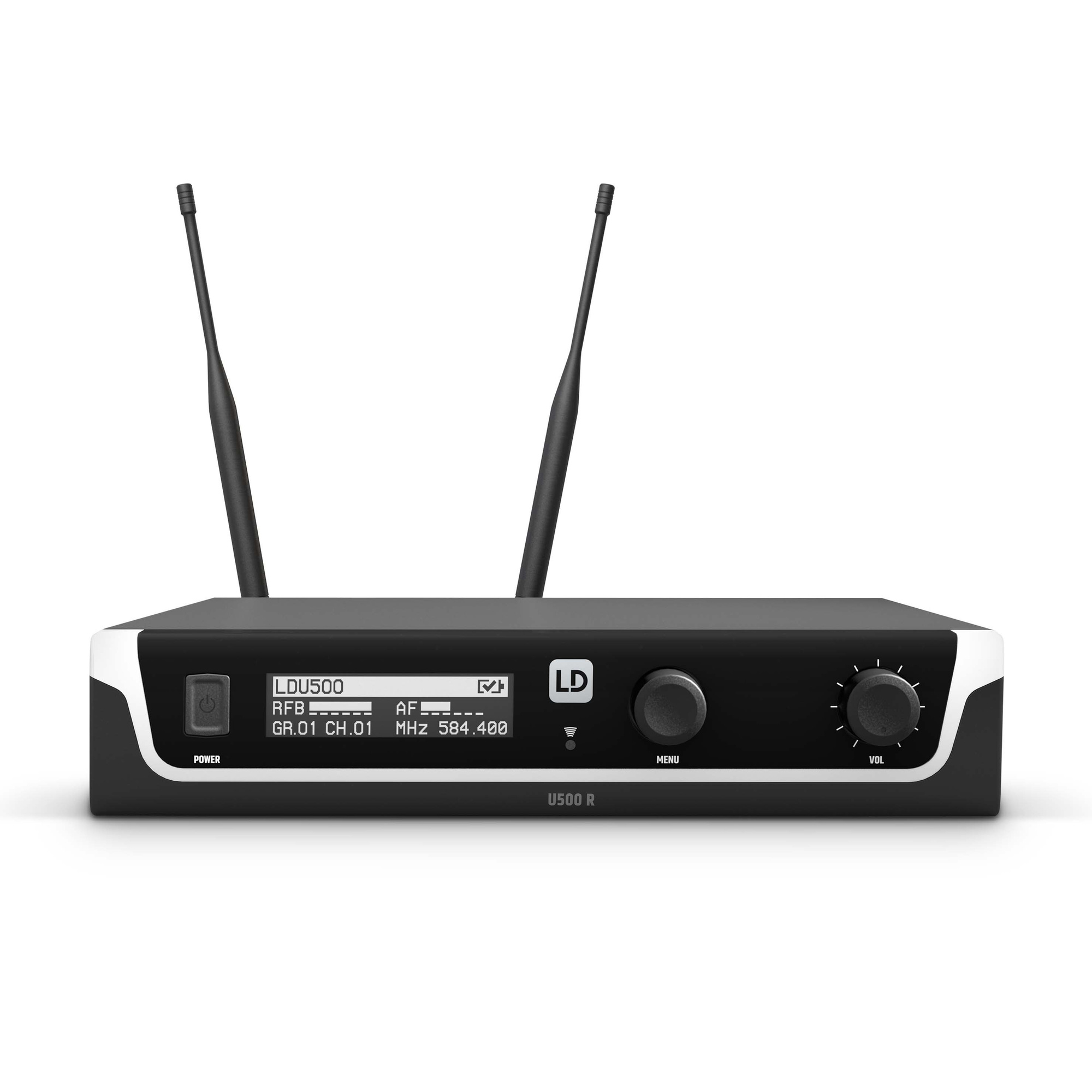

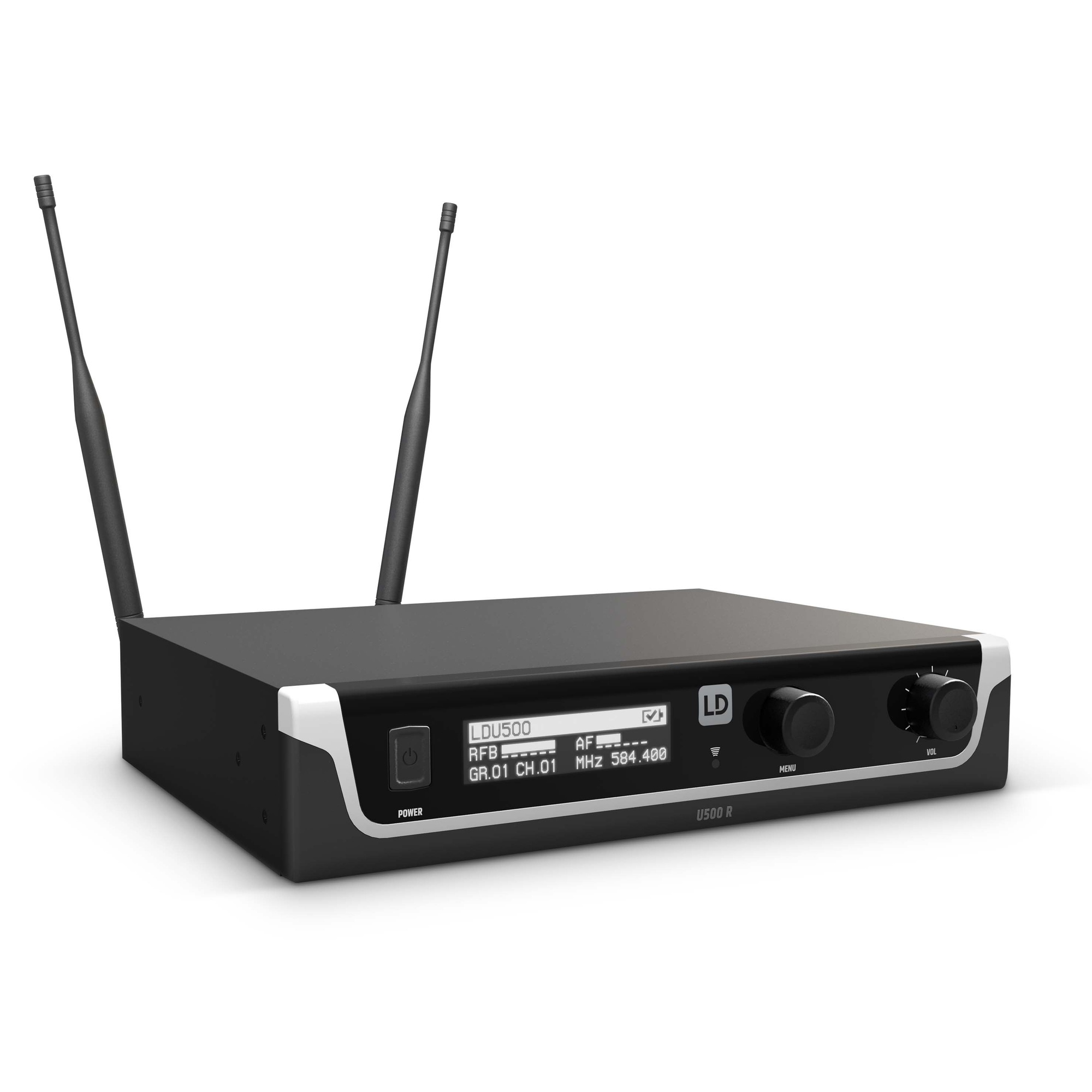

Dual Receiver - LD Systems U506 R
UHF frequency range: 655 - 679 MHz
Type: true diversity
Modulation type: FM
Channels: 96
Groups: 8 x 12
Antenna inputs: 2
Antenna connector: BNC
Noise reduction: squelch
Signal-to-noise ratio: > 100 dB
THD: < 0.3 %
Controls: volume
Audio output: XLR balanced, 6.3 mm Jack TRS - 18 dBV
Power supply: 12 V DC, 500 mA
Maximum output level: +10 dBu
Weight: 0.85 kg
IR frequency synchronization: yes
Dimensions (W x H x D): 212 x 44 x 159 mm
Included accessories: power supply

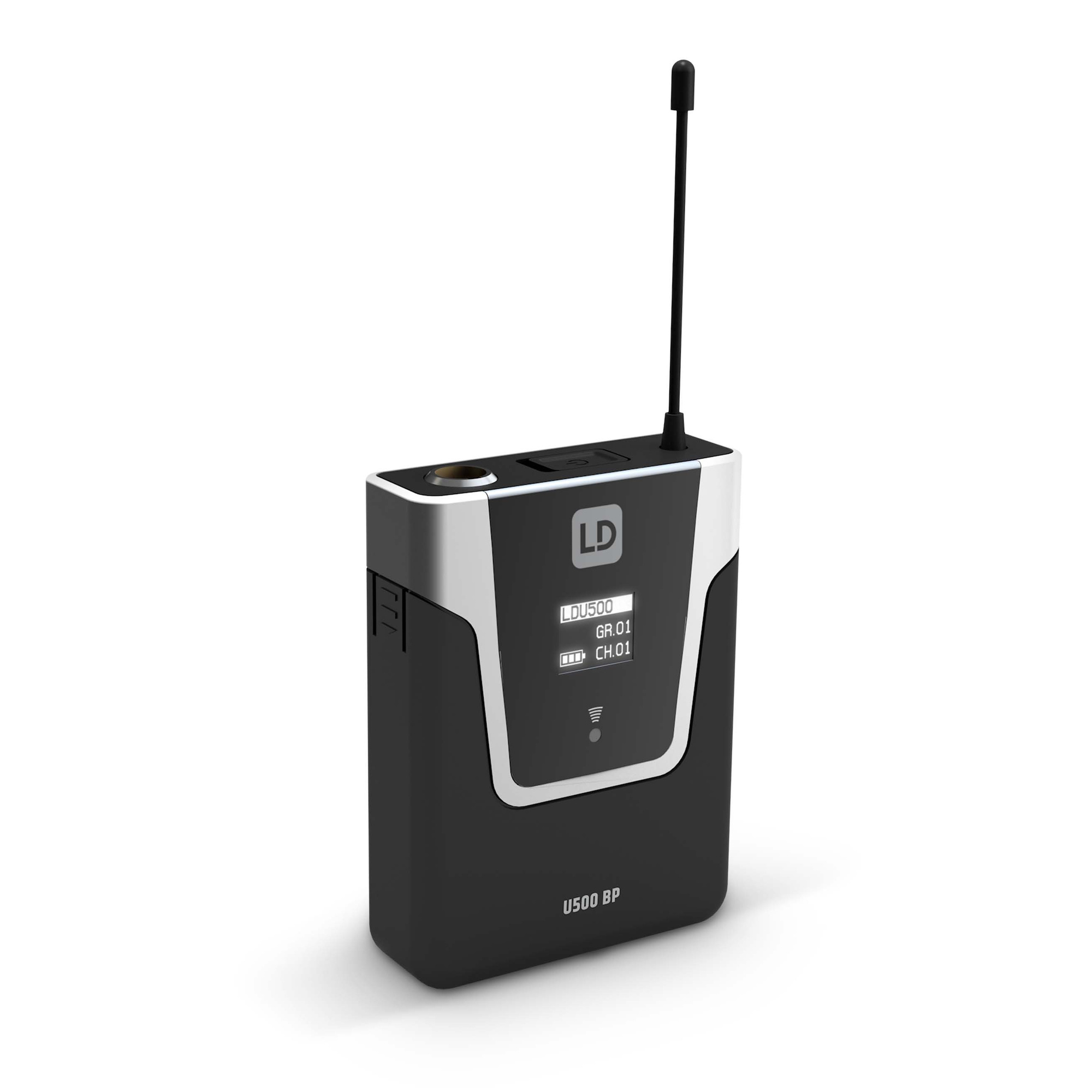

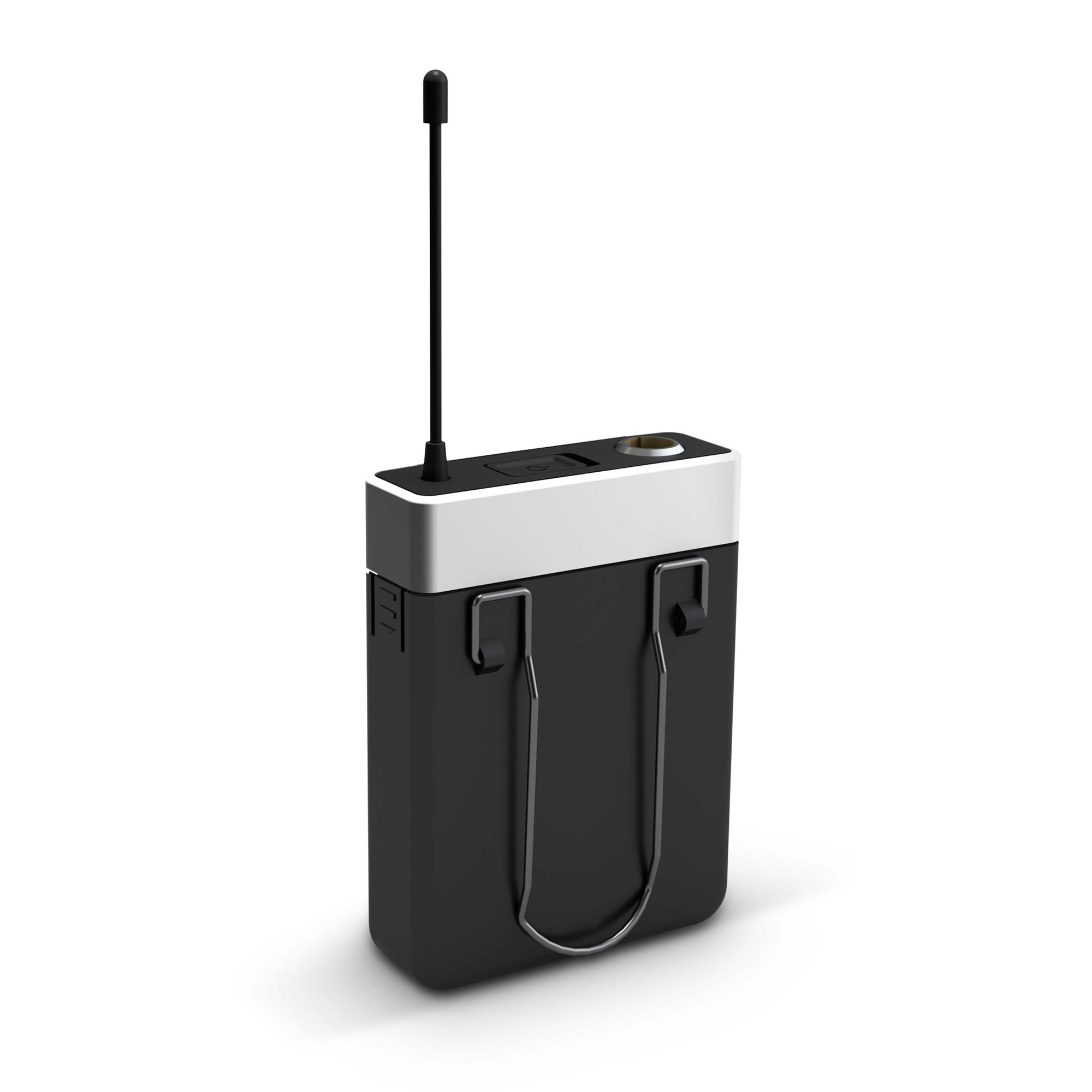

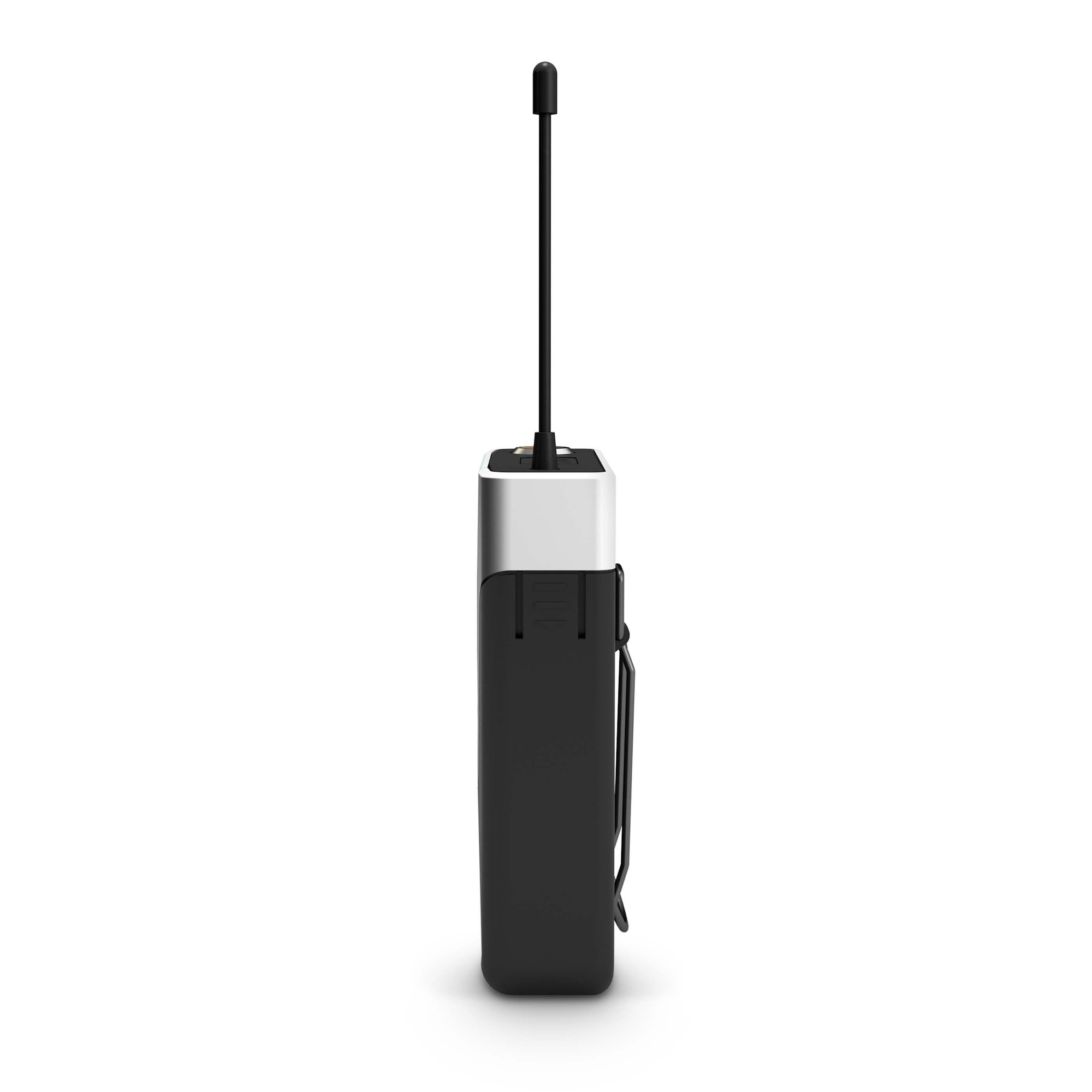

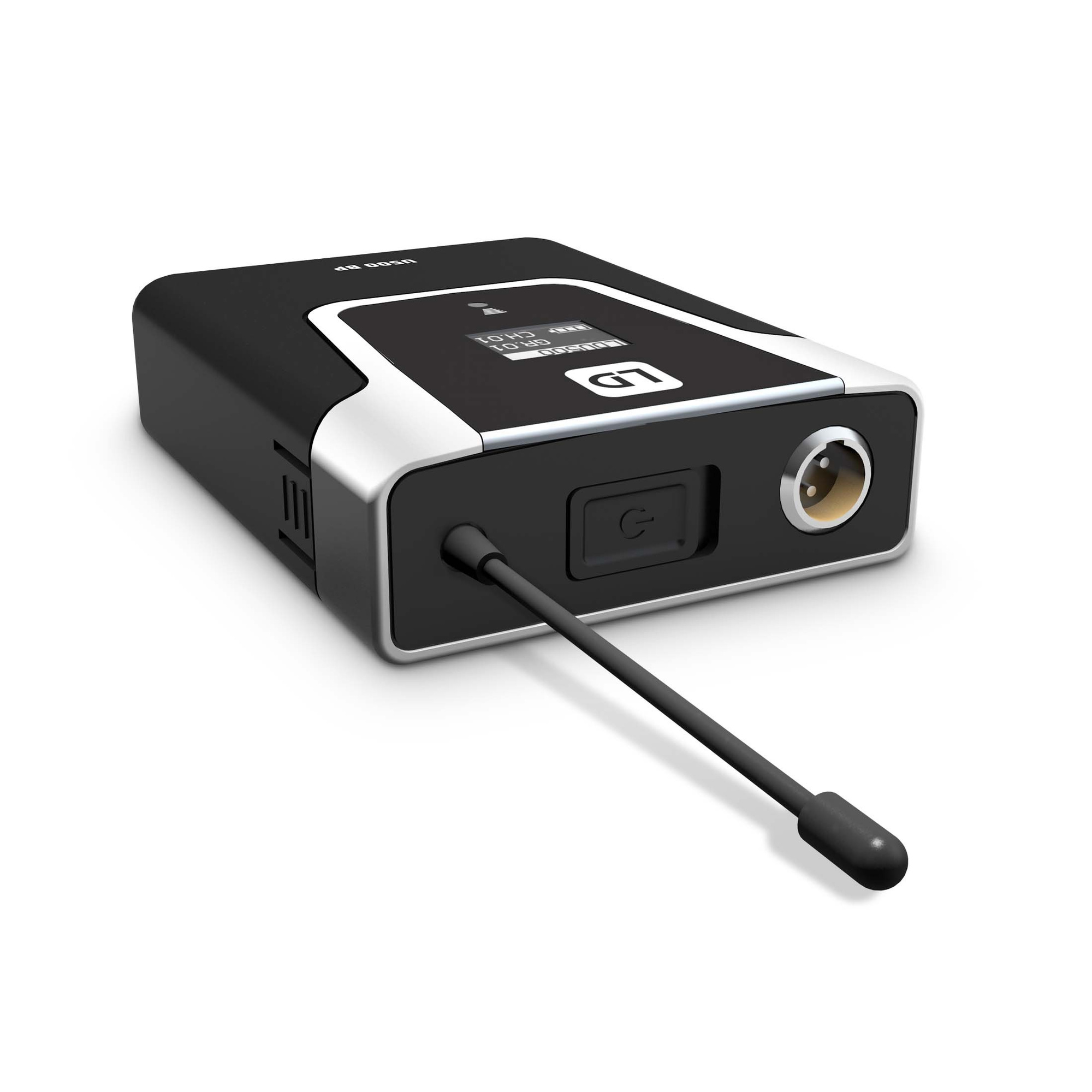

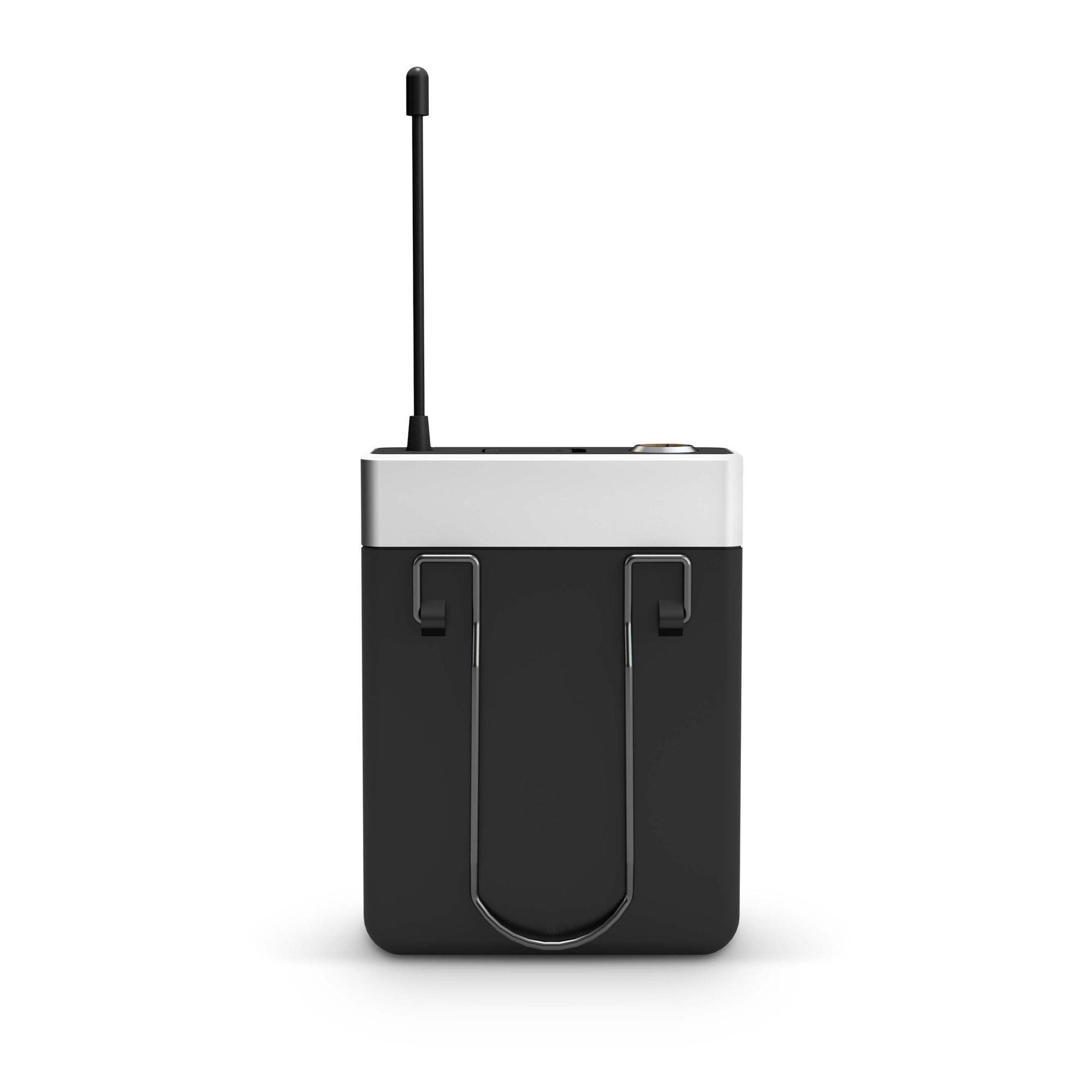

Pocket/Belt Transmitter U506 BP:
Mini XLR 3-pin connection
Signal-to-noise ratio: over 90 dB
Variable RF signal power: 2 mW, 10 mW, 30 mW
Audio frequency range: 30 Hz - 16 kHz
Power supply: 2 x AA batteries, over 10 hours of operation
Detachable antenna, pilot tone squelch, switchable gain
WS 100 ML Lavalier Microphone:
Condenser type
Cardioid characteristic
Frequency range: 20 - 20,000 Hz
Impedance 680 Ohms
Mini XLR connector compatible with LD Systems transmitters
