Boss RC-202

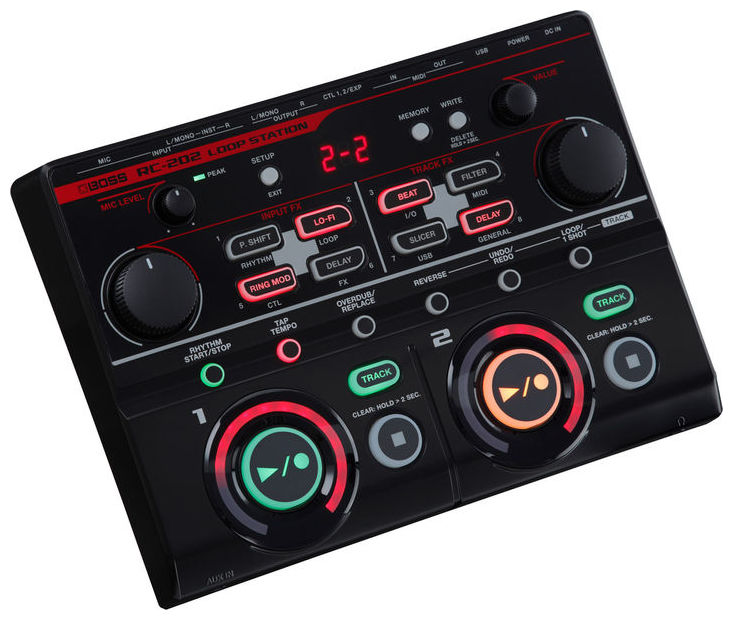

Boss RC-202 - Desktop loop station, ideal for studio or live applications, recommended for DJs, beatboxers, and singers. It is based on the popular RC-505 and is designed for hand control, offering 2 stereo tracks with individual controls, 4 inputs and effects, 64 memory locations (8 memories x 8 banks) to save tracks, extended MIDI control, USB Audio/MIDI function for use with DAW software. L/R inputs (L = mono) with 6.3 mm jack connector. Provides phantom power on the XLR connector for microphones.

Technical specifications:

• Nominal input level:
  • INPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
  • INPUT INST: -10 dBu
  • AUX IN: -20 dBu
• Input impedance:
  • INPUT MIC: 4 k ohms
  • INPUT INST: 1 M ohm
  • AUX IN: 22 k ohms
• Nominal output level: -10 dBu
• Output impedance: 1 k ohm
• Recommended load impedance:
• Output: 10 k ohms or greater
• Recording/Playback
  • Maximum recording time: Approximately 3 hours (stereo)
  • Maximum phrase memory: 8 Memory x 8 Bank
  • Number of Tracks: 2
  • Format: WAV (44.1 kHz, 16-bit linear, stereo)
• Effect types (INPUT FX/TRACK FX)
  • LPF
  • BPF
  • HPF
  • PHASER
  • FLANGER
  • SYNTH
  • LO-FI
  • RING MODULATOR
  • GUITAR TO BASS
  • SLOW GEAR
  • TRANSPOSE
  • PITCH SHIFT
  • ROBOT
  • VOCAL DIST
  • VOCODER
  • NATURAL COMP
  • HARD COMP
  • NATURAL LIM
  • HARD LIM
  • PHONE VOX
  • EQ
  • LOW ISOLATOR
  • MID ISOLATOR
  • HIGH ISOLATOR
  • OCTAVE
  • AUTO PAN
  • MANUAL PAN
  • TREMOLO
  • SLICER
  • DELAY
  • PANNING DELAY
  • TAPE ECHO
  • GRANULAR DELAY
  • ROLL
  • CHORUS
  • REVERB
  • BEAT REPEAT *1
  • BEAT SHIFT *1
  • BEAT SCATTER *1
  • VINYL FLICK *1
• Effect types (MASTER FX)
  • COMP
  • REVERB
• Rhythm types: 17
• Display: 7 segments, 3 characters (LED)
• USB:
  • Mass Storage Class
  • Audio/MIDI
• Connectors:
  • Microphone input: XLR balanced,
    • phantom power: DC 48 V, 10 mA Max
  • Instrument input (L/MONO, R): 1/4-inch jack connector
  • AUX input: mini stereo jack
  • Headphone output: mini stereo jack
  • Outputs (L/MONO, R): 1/4-inch jack connector
  • CTL 1, 2/EXP input: 1/4-inch TRS jack connector
  • USB port: USB B type
  • MIDI (IN, OUT)
  • DC power connector
• Power: AC adapter
• Current consumption: 400 mA
• Accessories: AC adapter, user manual, safety instructions
• Dimensions (WxDxH): 239x175x55
• Weight: 950 g
