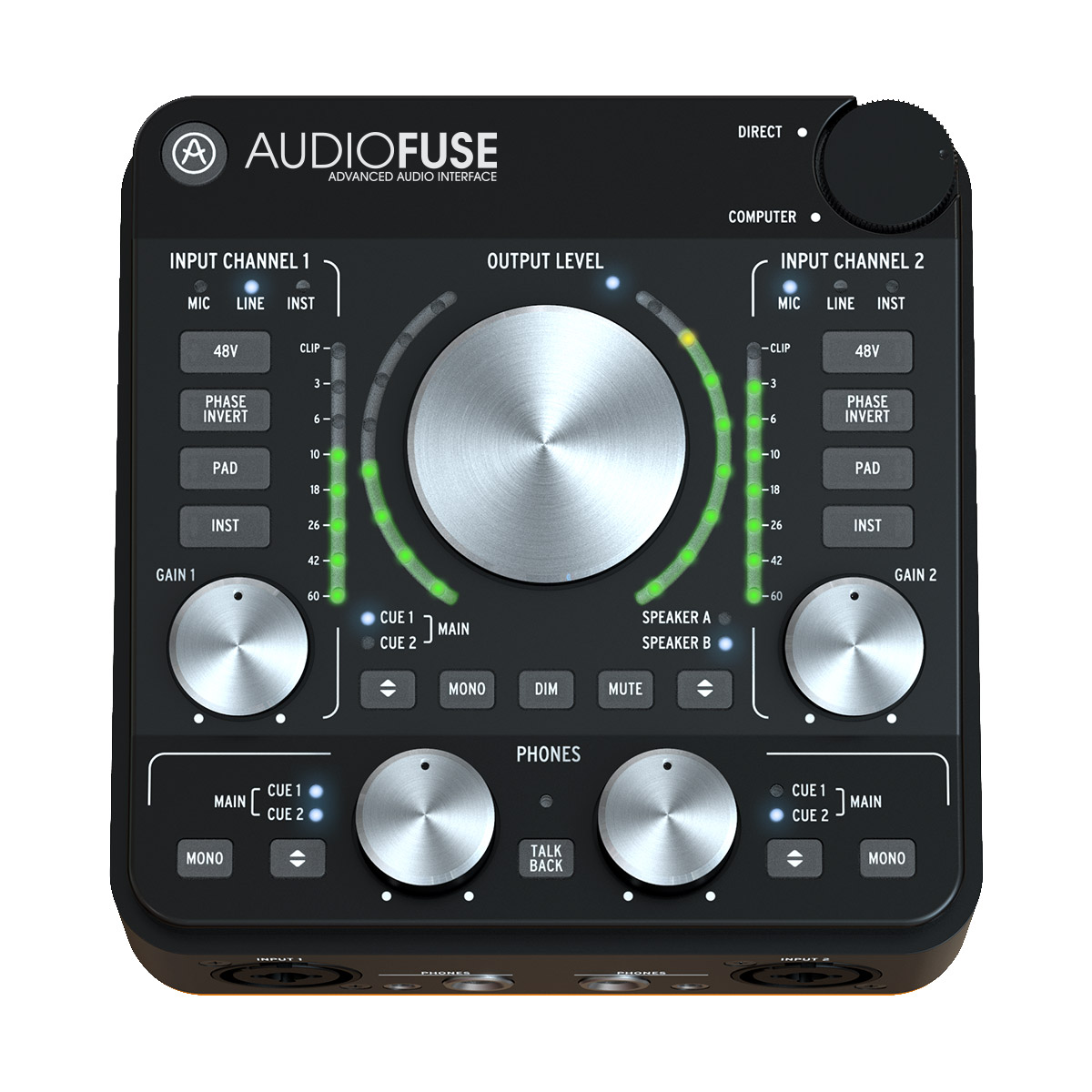

Arturia AudioFuse Rev2 is a USB audio interface with 4 analog inputs (2 for microphone/instrument/line and 2 phono/line) and 4 analog outputs, plus 2 analog inserts. It offers extensive connectivity via ADAT, SPDIF, MIDI and Word Clock, as well as a USB hub with 3 ports. It features 2 RIAA phono preamps and 2 microphone preamps with DiscretePRO technology.
It has state-of-the-art AD/DA converters with a sampling rate of up to 192 kHz and a Talkback function with an integrated microphone. It supports direct monitoring with A/B switching for monitors and separate channels for mix master and monitoring. It is compatible with PC, Mac, iOS, Android and Linux, has an aluminium casing and can be powered via USB or included AC adapter.
Impeccable studio quality is at the heart of AudioFuse, with each component designed to deliver audio excellence at the highest level. The weighted A EIN value of >131.5 dB guarantees the widest dynamic range for your sound, a top signal-to-noise ratio for preamps, and the purest discrete analog signal paths ever encountered in an audio interface. Add to all this a wide range of connectivity options and an intuitive workflow, and AudioFuse is ready to become the centre of your studio.
Sound: To create a truly next-generation interface, Arturia designed every element from the ground up. From the casing to the converters, from the connections for headphones to the DiscretePRO® preamps, every detail has been carefully chosen to provide the user with the best possible experience.
Without compromises — every component has been selected to perfectly serve the sound, complemented by state-of-the-art AD/DA converters and an extremely clear signal path.
Connectivity: AudioFuse offers a wide range of connectivity options:
4 analog inputs, including two DiscretePRO® microphone preamps
ADAT and S/PDIF inputs/outputs
2 RIAA preamps for turntables
4 analog outputs (1/4" TRS jack)
Word Clock I/O
MIDI I/O
USB hub with 3 ports for dongles, hard drives, controllers and more
You can simultaneously connect microphones, turntables, and external analog equipment. For guitarists, AudioFuse also offers reamping functionality, ideal for creative sound engineers.
Workflow: Built around the idea that an interface should be a gateway to creativity, not an obstacle, AudioFuse emphasises the principle of “one button – one function”.
Want to activate talkback? Press the button.
Want to hear more of the input signal? Turn a knob.
Want to switch between monitors A and B? Press a button.
Need more volume on one of the headphone pairs? Each output has its own volume potentiometer.
It’s like having your own mini-console right on your desk.
An interface that works with you: No matter how you create – in the studio, on PC or Mac, on the move with a tablet or iPad, or even on a Linux system – AudioFuse adapts. If you want full power at home or a low power consumption mode when you’re on the road, AudioFuse offers 4 unique power modes and can also be powered via USB.
With top audio quality, all the connectivity you might need, and a smartly designed workflow, AudioFuse does it all.
Features:
Exceptional audio quality: using the latest technology, top converters and revolutionary electronic designs, AudioFuse delivers crystal-clear sound
Extensive connectivity: from compact MIDI cables to multi-channel ADAT, combi jack/XLR preamps with direct insert points and switchable A/B outputs, AudioFuse has it all – even a talkback microphone
Exclusive technology: created from the ground up, Arturia engineers developed low-noise DiscretePRO® preamps to capture the perfect sound, without any coloration
Versatile headphone system: no more need for adapters – AudioFuse has 2 independent headphone outputs, each with 3.5 mm and 6.35 mm jacks
Multi-platform compatibility: AudioFuse works the way you do – compatible with Windows, Mac, iOS, Android and even Linux
Ultra-low latency: with a total latency of up to 3 ms and direct control over the mix between the input signal and playback from the computer, AudioFuse keeps you in sync and performing
Robust construction: solid and intelligently designed, the controls on the main panel can be protected with the included cover, preventing accidental changes during performance or recording
Reamping for guitar: facilitates the creative process and offers maximum flexibility in the studio through dedicated Hi-Z inputs and outputs
Ideal monitoring solution: multiple outputs, extremely quiet analog components, and audiophile-quality AD/DA converters make AudioFuse an excellent studio tool for listening and comparison
Included software: AudioFuse Control Center
Technical specifications:
2 DiscretePRO microphone preamps
2 RIAA preamps for turntable
4 analog inputs
2x Mic/Instrument/Line (XLR / 1/4" TRS jack)
2x Phono/Line (RCA / 1/4" TRS jack)
4 analog outputs (1/4" TRS jack)
2 analog inserts (1/4" TRS jack)
ADAT in/out
S/PDIF in/out
Word Clock in/out
New generation A/D and D/A converters, 24-bit, with sampling rates of up to 192kHz
MIDI in/out
Talkback function with dedicated built-in microphone (up to 96 kHz sampling rate)
A/B switching between monitors
Direct monitoring
2 independent headphone outputs
Separate channels for master and monitor mix
USB interface compatible with PC, Mac, iOS, Android
USB hub with 3 ports
Aluminium casing with a top cover wrapped in leather
