Omnitronic XPA-700

Amplifier

pA amplifier with limiter, delivering 2 x 350 W at 4 ohms and 2 x 240 W at 8 ohms.
selectable operating modes: stereo or bridge, with 2 level controls.
includes LED indicators for protection circuit and output level monitoring.
efficient airflow design with temperature-controlled fan for optimal cooling.
rack-mountable design (19", 2U) with comprehensive connectivity options.

263¹² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1297 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic XPA-700 Add to cart: 263¹² €

PA amplifier with limiter, 2 x 350 W / 4 ohms, 2 x 240 W / 8 ohms

2 operating modes can be selected (stereo or bridge)
2 level controls
Each channel with LED for activated protection circuit (protection) and output meter with LED clip
Signal inputs via XLR connectors or 6.3 mm jack
Speaker outputs via lockable speaker plugs and pairs of screw terminals
Additional speaker socket for operation in bridge mode at 8 ohms
Class AB circuits
Very efficient airflow from front to back
The device is cooled by a temperature-controlled fan
(19") 48.3 cm rack installation 2 U

Package contents

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	495 W 1/8 power
Output power:	2 x 350 W RMS (4 ohms) 2 x 240 W RMS (8 ohms) 700 W RMS in bridge mode (8 ohms)
Power connection:	Network input via IEC (M) connector, power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20000 Hz
S/N ratio:	>95 dB
THD:	<0.5 % at 1 kHz
Cooling:	1 x temperature-controlled fan, airflow from front to back
Impedance:	Input: 20 kOhm, balanced Input: 10 kOhm, unbalanced
Circuits:	Class AB
Slew rate:	>20 V/μs
Damping factor:	>350
Control elements:	Power switch, channel level control, limit threshold selector, mode switch (stereo/bridged)
Protections:	Short circuit; overheat; DC voltage; turn-on/off transients; soft start
Status LED:	Power, level meter, clip, bridge, protect

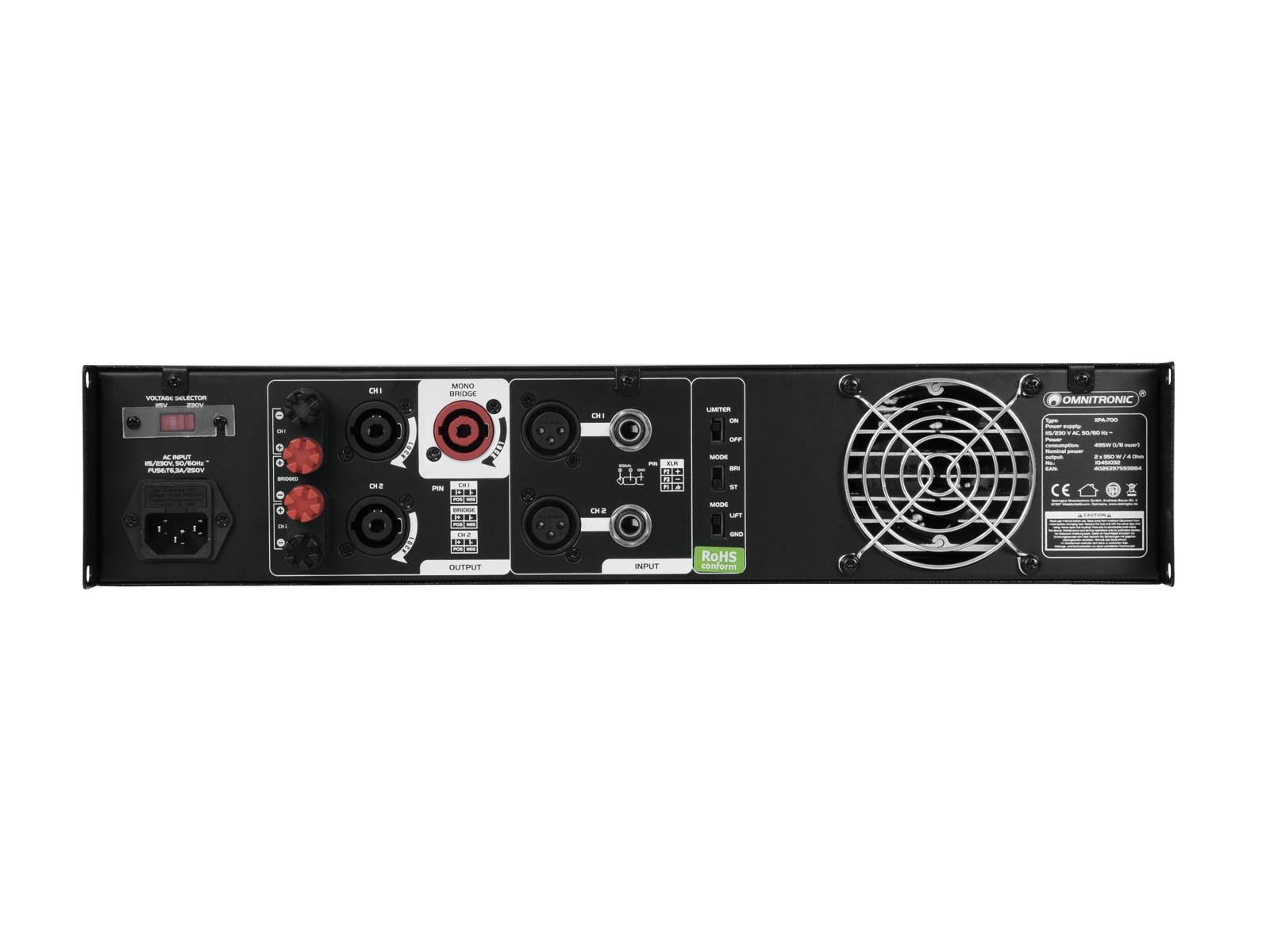

Connections:	Input: line via 2 x 3-pin XLR Input: line via mounting version with 2 x 6.3 mm jack plugs (stereo). Output: speaker via 2 x built-in speaker socket (F) Output: speaker via screw terminal Output: speaker (bridge) via 1 x built-in speaker socket (F) Output: speaker (bridge) via screw terminal
Input sensitivity:	1.4 V
Max. level:	Input: +21 dBV Input: +9 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 35.4 cm Height: 8.9 cm
Weight:	8.70 kg

Product code: 10451032

Unit of sale: piece

Specifications:
