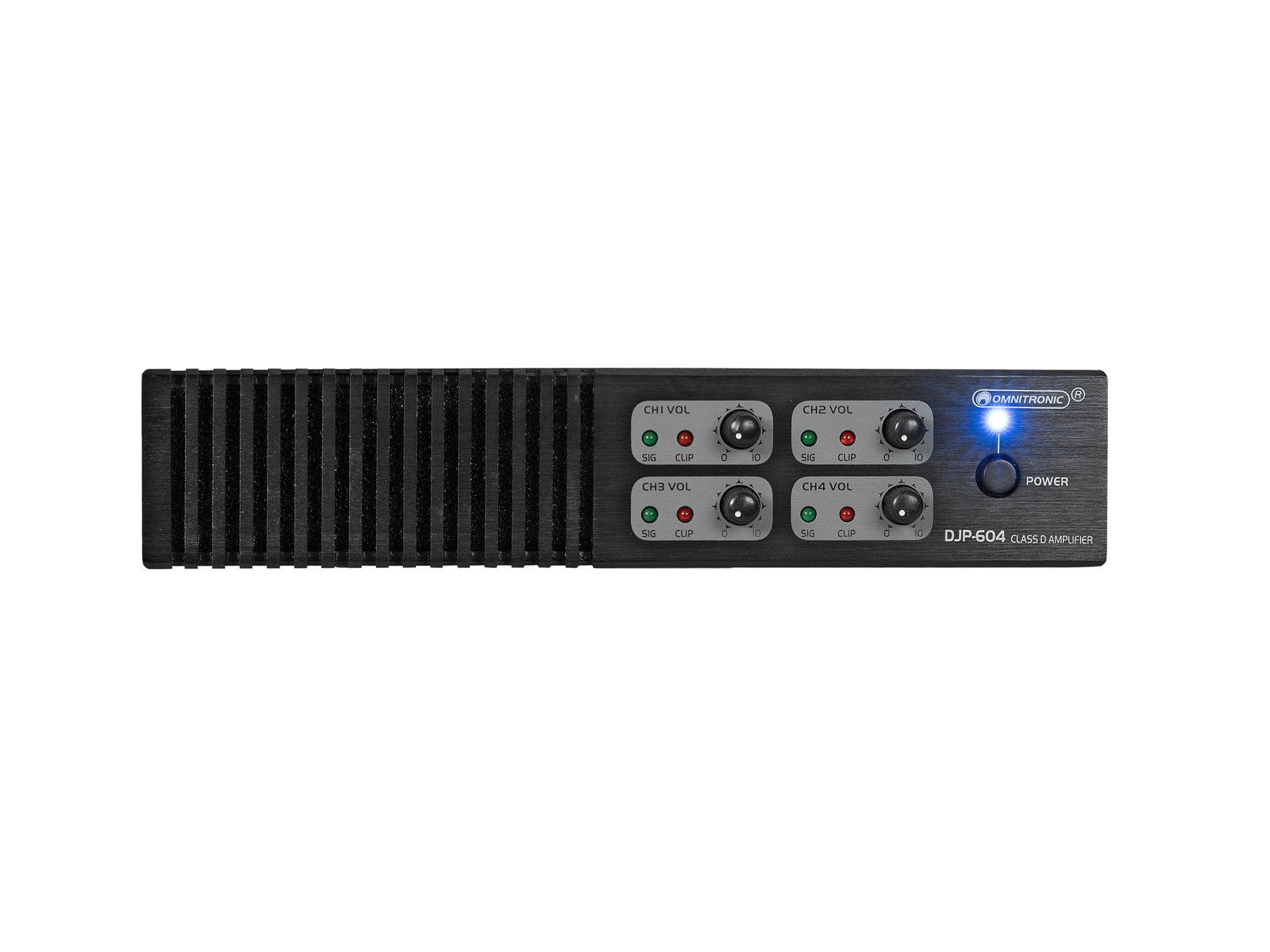

Omnitronic DJP-604

Class D amplifier with 4 channels in 9.5 inch housing

greutate și înălțime extrem de reduse datorită sursei de alimentare cu comutare integrată
controlul nivelului pe canal
intrări care pot fi conectate pentru configurație flexibilă
Șasiu robust din oțel cu panou frontal din aluminiu
carcasa consolei desktop

352⁸⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1740 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic DJP-604 Add to cart: 352⁸⁸ €

Class D amplifier with 4 channels in 9.5 inch housing, 4 x 150 W / 4 ohms, 4 x 80 W / 8 ohms

Package contents

1 x user manual, 1 x amplifier, 4 x feet, 6 x angle, 8 x screws, 1 x power cable

Power supply:	230 V AC, 50 Hz
Power consumption:	185 W 1/8 power
Output power:	4 x 150 W RMS (4 ohms) 4 x 80 W RMS (8 ohms)
Power connection:	Network input via IEC (M) connector, power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20,000 Hz
S/N ratio:	>105 dB
Impedance:	Input: 20 kOhm, balanced. Input: 10 kOhm, unbalanced.
Chassis colour:	Black
Circuits:	Class D
Slew rate:	20 V/µs
Damping factor:	>300
Control elements:	Power switch, level control per channel
Controls:	Soft start; short circuit; overheating; overload; VHF; DC voltage
Status LED:	Power, signal, clip
Connections:	Input: line via 4 x screw terminals Output: speaker via 4 x screw terminals
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible
Dimensions:	Width: 26.5 cm Depth: 21.4 cm Height: 4.4 cm
Weight:	2.46 kg
