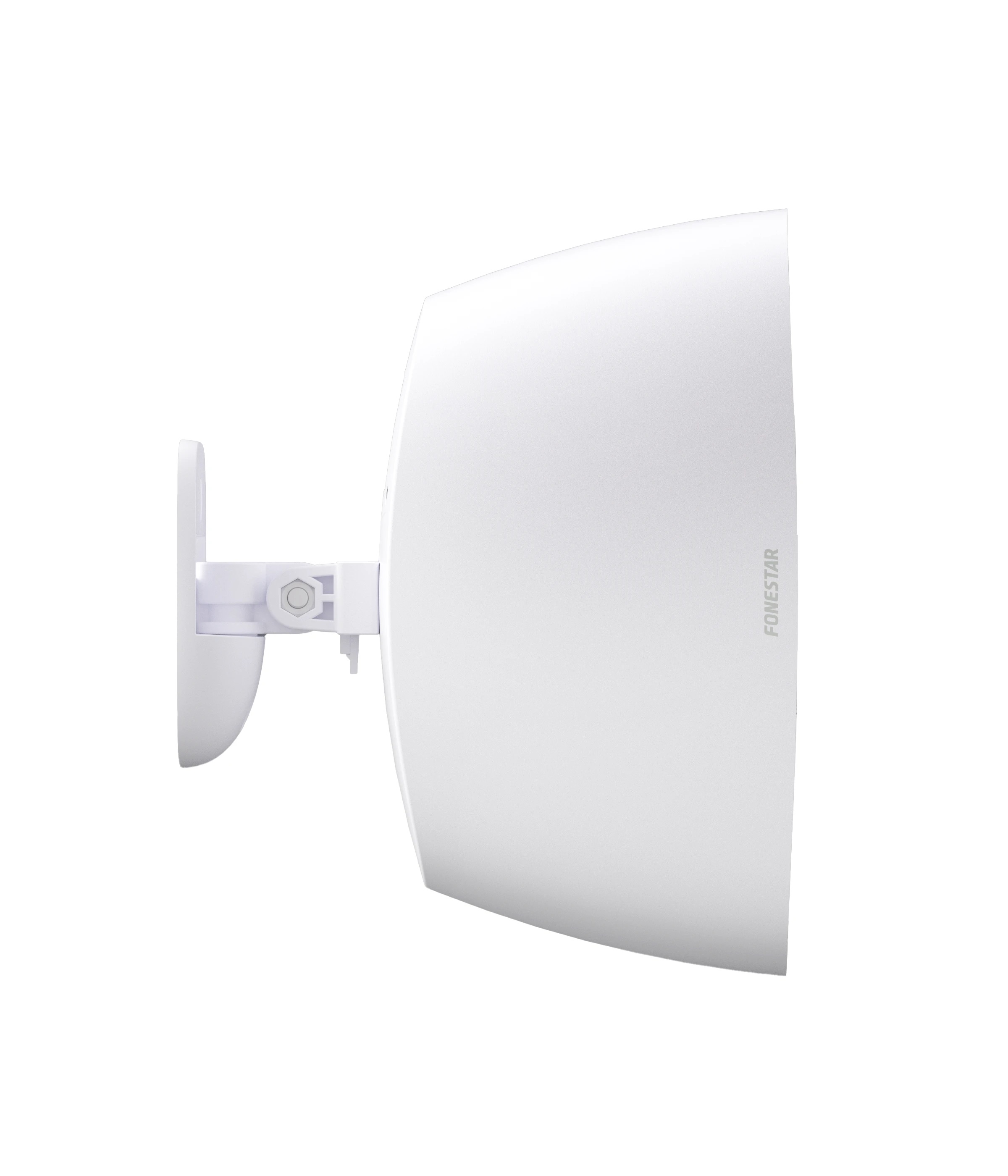

Fonestar SONORA-5B16

Fonestar SONORA-5B16 – Passive speaker with low impedance, specially designed for public address (PA), music and ambient sound applications. This model with reduced impedance offers excellent sound quality, clear and distortion-free, ideal for restaurants, cafes, supermarkets, shopping centres and other public spaces.

Its elegant design and high-quality finish allow for harmonious integration in any environment, both indoor and outdoor. The SONORA-5B16 is protected against water and marine conditions, having an IP-66 protection rating and a durable aluminium grille. Installation is simple and quick due to the included accessories: weather-resistant adjustable bracket, stainless steel screws and safety cable made of steel.

FEATURES:

• Passive speaker with reduced impedance
• Ready for outdoor use, with IP-66 protection

POWER:

• Maximum power: 80 W
• RMS power: 40 W

SPEAKERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 - 20,000 Hz

IMPEDANCE:

• 16 Ω

SENSITIVITY:

• 3 dB @ 1 W/1 m

MAXIMUM ACOUSTIC PRESSURE:

• 2 dB @ maximum power / 1 m

COVERAGE ANGLES:

• Horizontal/Vertical:
  • 200º/200º @ 500 Hz
  • 135º/135º @ 1 kHz
  • 100º/120º @ 2 kHz
  • 60º/80º @ 4 kHz (-6 dB)

PROTECTION:

• IP-66 according to standard EN 60529
• IEC 60068-2-11 (environmental test with salt spray)

MATERIAL:

• ABS housing with UV resistance
• Aluminium grille with electrostatic paint finish
• Weather-resistant bracket
• Stainless steel screws

CONNECTORS:

• Euroblock

OPERATING TEMPERATURE:

• -10ºC to 60ºC

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm (depth)
• Wall mount plate: 68 x 110 mm
• Speaker with mount: 216 mm depth

WEIGHT:

• 6.5 kg

ACCESSORIES:

• Adjustable bracket for mounting ± 60º in all directions
• Steel safety cable
