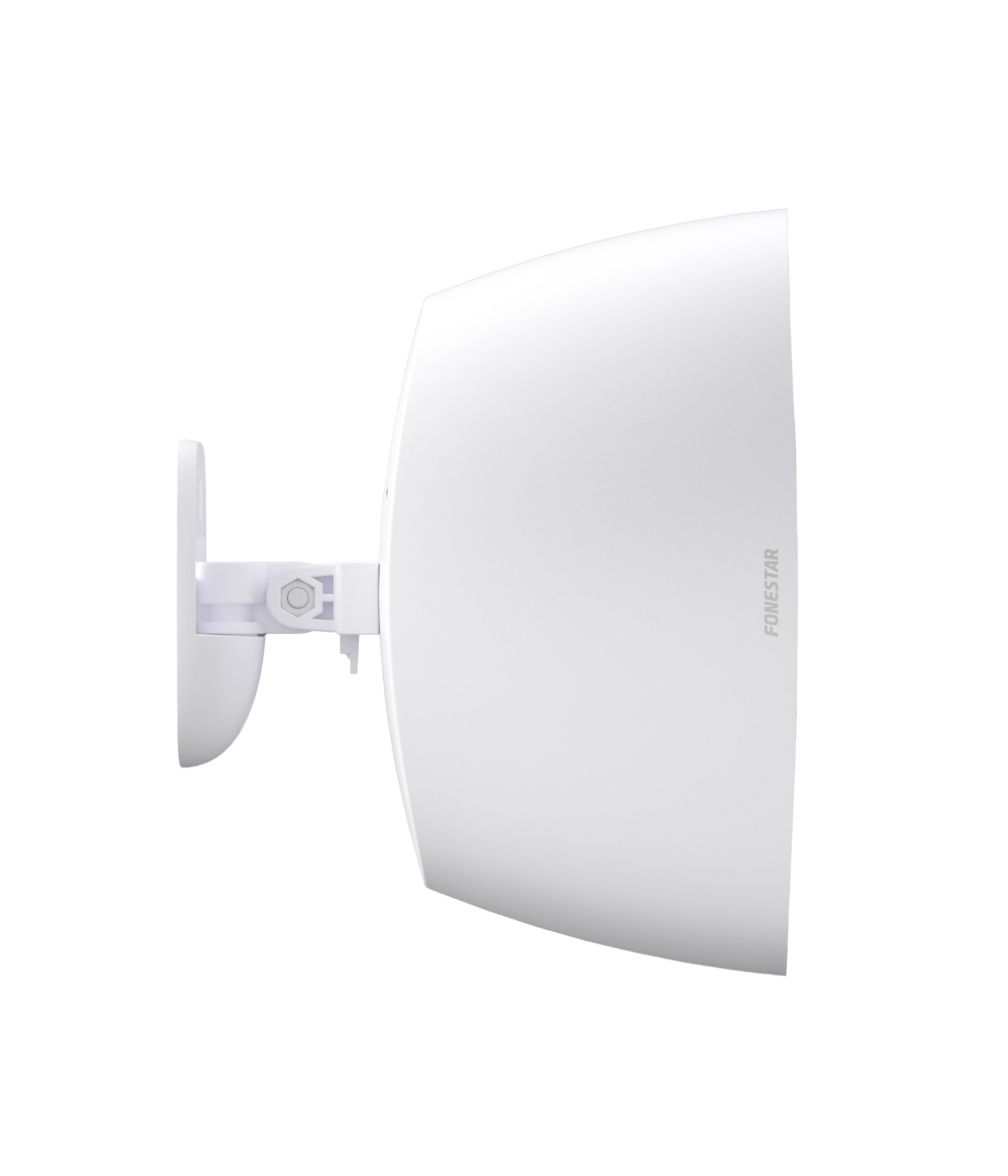

Fonestar SONORA-5B

Fonestar SONORA-5B - Passive speaker with low impedance for installation, part of the SONORA series, specially created for public address (PA), music, and ambient sound applications. The elegant design and superior quality finish allow for perfect integration into any type of space, whether indoors or outdoors.

Built for use in challenging conditions, the SONORA-5B features an aluminium grille and IP-66 protection, making it resistant to water and marine conditions. It delivers clear and well-defined sound without distortion, ideal for playing music or vocal messages in commercial spaces.

Installation is quick and secure, thanks to the included accessories: weather-resistant adjustable mount, stainless steel screws, and safety cable made of steel. The SONORA-5B is the ideal choice for restaurants, cafes, supermarkets, shopping centres, terraces, or other spaces that require a high-quality and reliable sound system in demanding environments.

FEATURES:

• Passive speaker with low impedance
• Designed for outdoor use, with IP-66 protection against weather and marine environments

POWER:

• 80 W maximum
• 40 W RMS

DRIVERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 – 20,000 Hz

IMPEDANCE:

• 8 Ω

SENSITIVITY:

• 88.3 dB @ 1 W / 1 m

MAXIMUM ACOUSTIC PRESSURE:

• 102.2 dB @ maximum power / 1 m

COVERAGE ANGLE (H/V):

• 200° / 200° @ 500 Hz
• 135° / 135° @ 1 kHz
• 100° / 120° @ 2 kHz
• 60° / 80° @ 4 kHz
• (-6 dB)

PROTECTION:

• IP-66 according to EN 60529
• Environmental test IEC 60068-2-11 (salt mist)

MATERIAL:

• ABS housing (UV resistant)
• Aluminium grille with electrostatic paint finish
• Weather-resistant mounting bracket
• Stainless steel screws

CONNECTORS:

• Euroblock for input and output
  • Compatible with cables with a cross-section between 0.25 and 2.5 mm²

TEMPERATURE RANGE:

• -10°C to 60°C

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm (depth)
• Wall mounting plate: 68 x 110 mm
• Speaker with bracket: 216 mm depth

WEIGHT:

• 1.65 kg

ACCESSORIES:

• Adjustable mounting bracket ± 60° in all directions
• Steel safety cable
