LD Systems ICOA 12

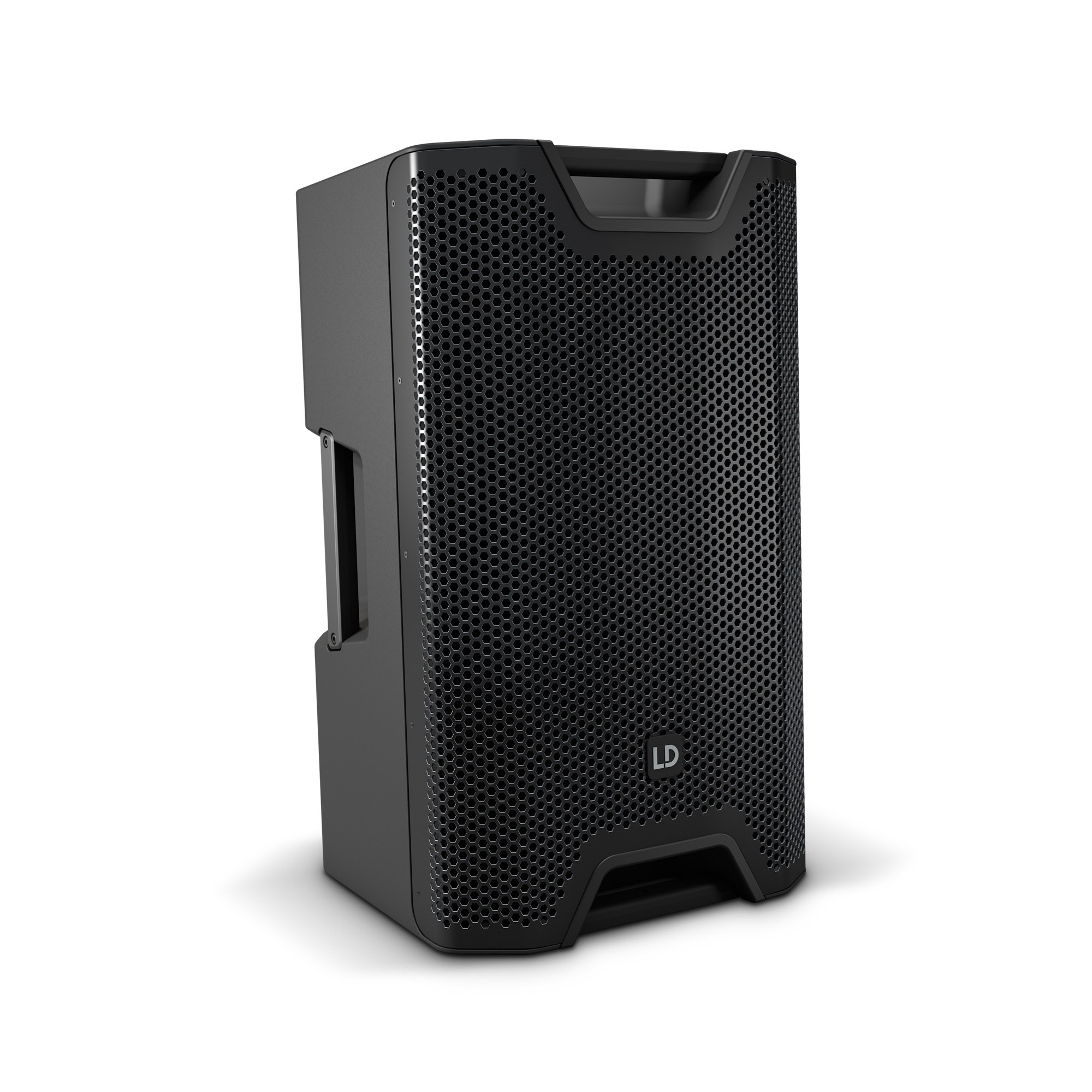

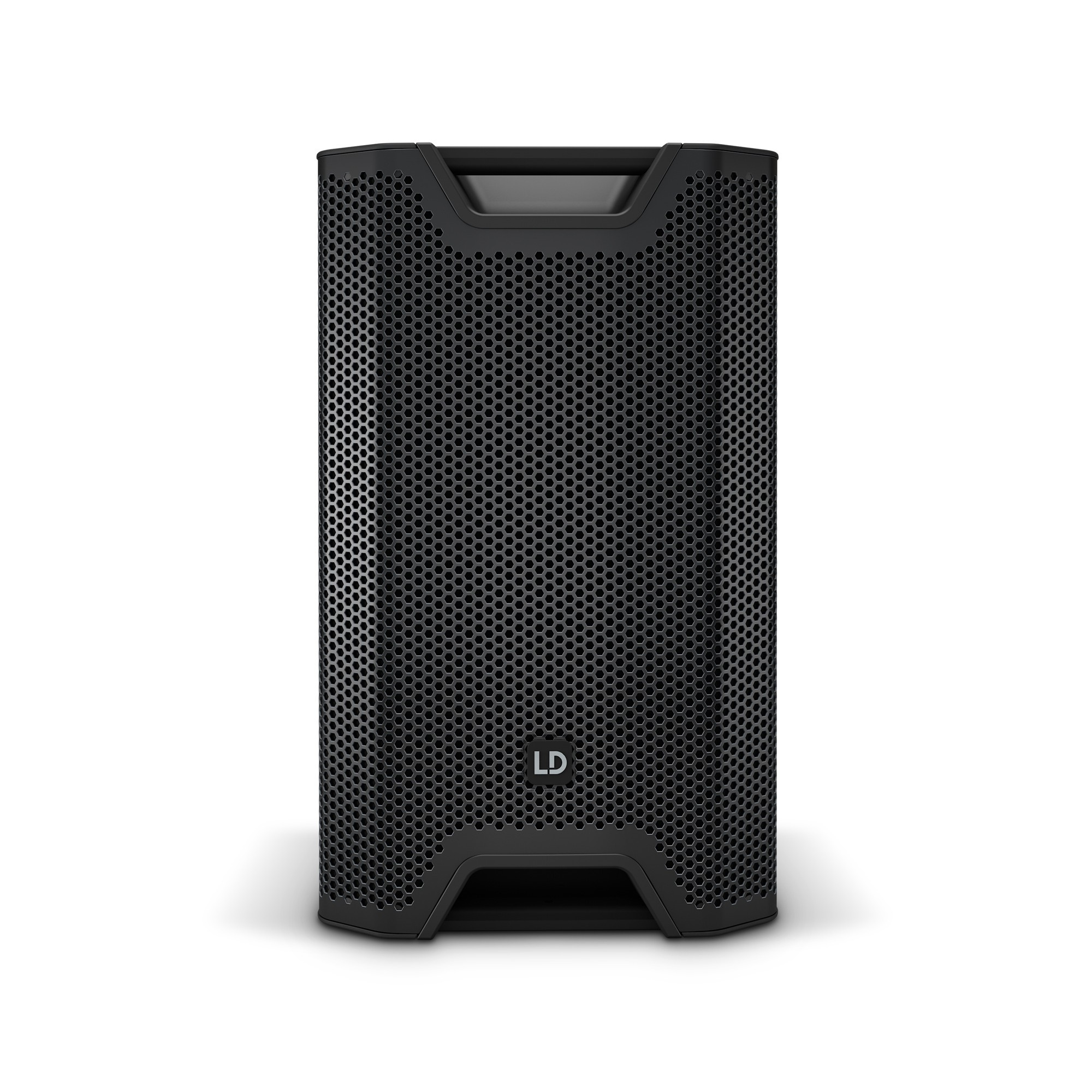

Coaxial passive speaker LD Systems ICOA 12

Coaxial passive speaker

12" low-frequency driver and 1" high-frequency driver for high-quality sound.
rotatable CD horn for versatile coverage.
maximum sound pressure level of 123 dB SPL, ideal for live performances.
bass-reflex construction for enhanced bass response.
compact dimensions: 375 x 635 x 396 mm, weight: 19.8 kg.

326¹¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1608 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems ICOA 12 Add to cart: 326¹¹ €

LD Systems ICOA 12 - Coaxial passive speaker:

12" / 304.8 mm low-frequency driver
1" / 25.4 mm high-frequency driver, 1" voice coil

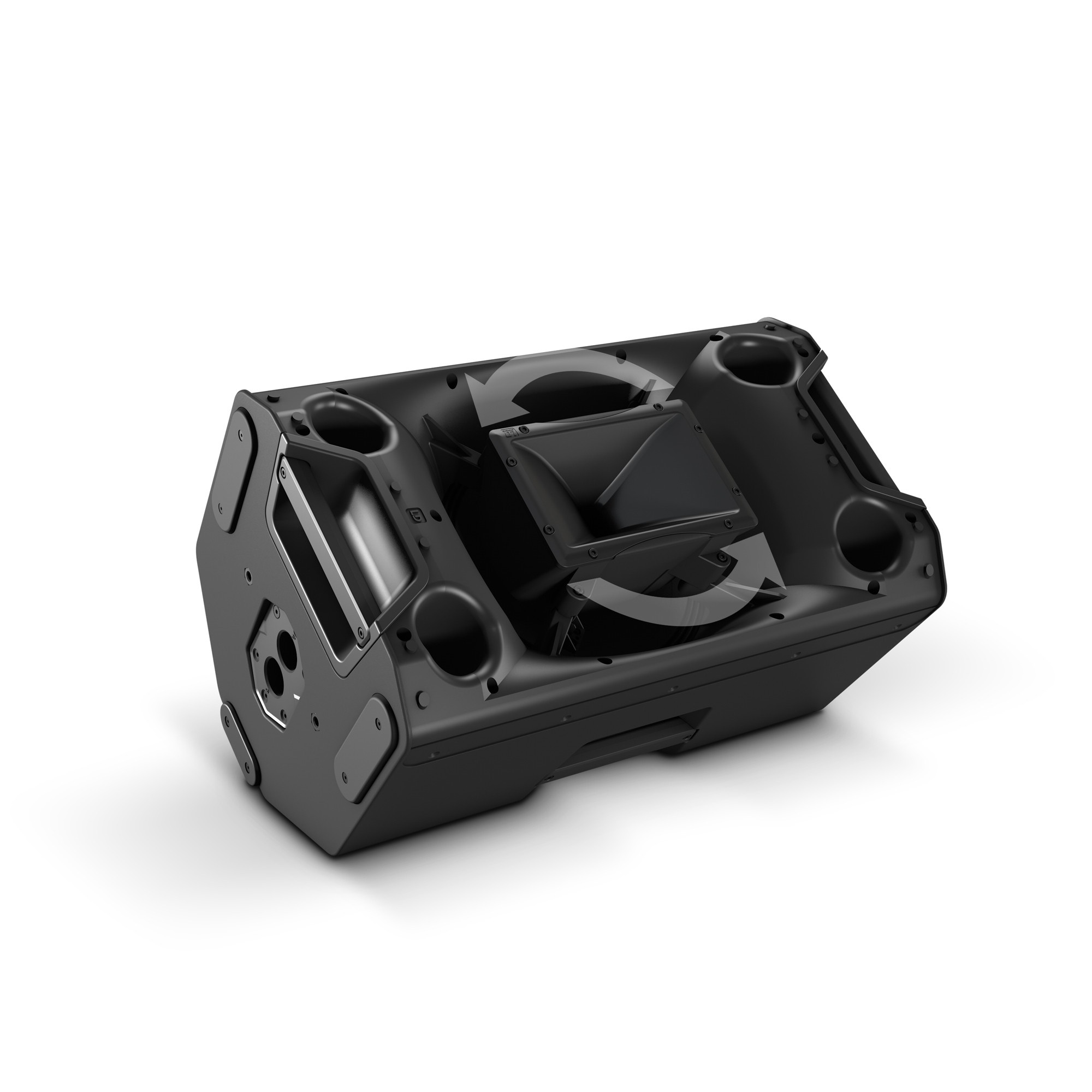

BEM rotatable CD horn
Coverage H x V: 90° x 50°
Frequency range: 55 Hz - 20 kHz
Crossover frequency: 2 kHz
Maximum sound pressure level: 123 dB SPL

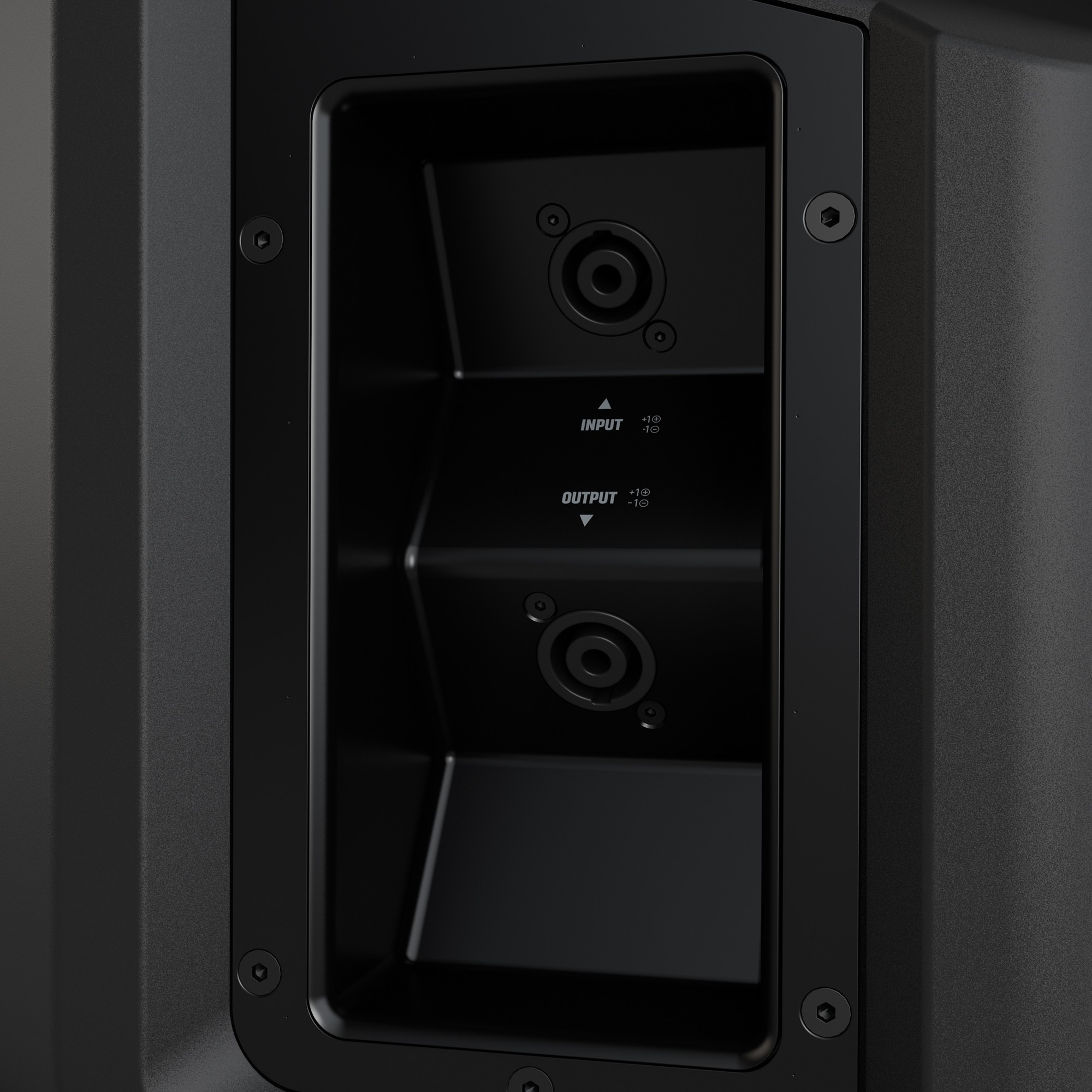

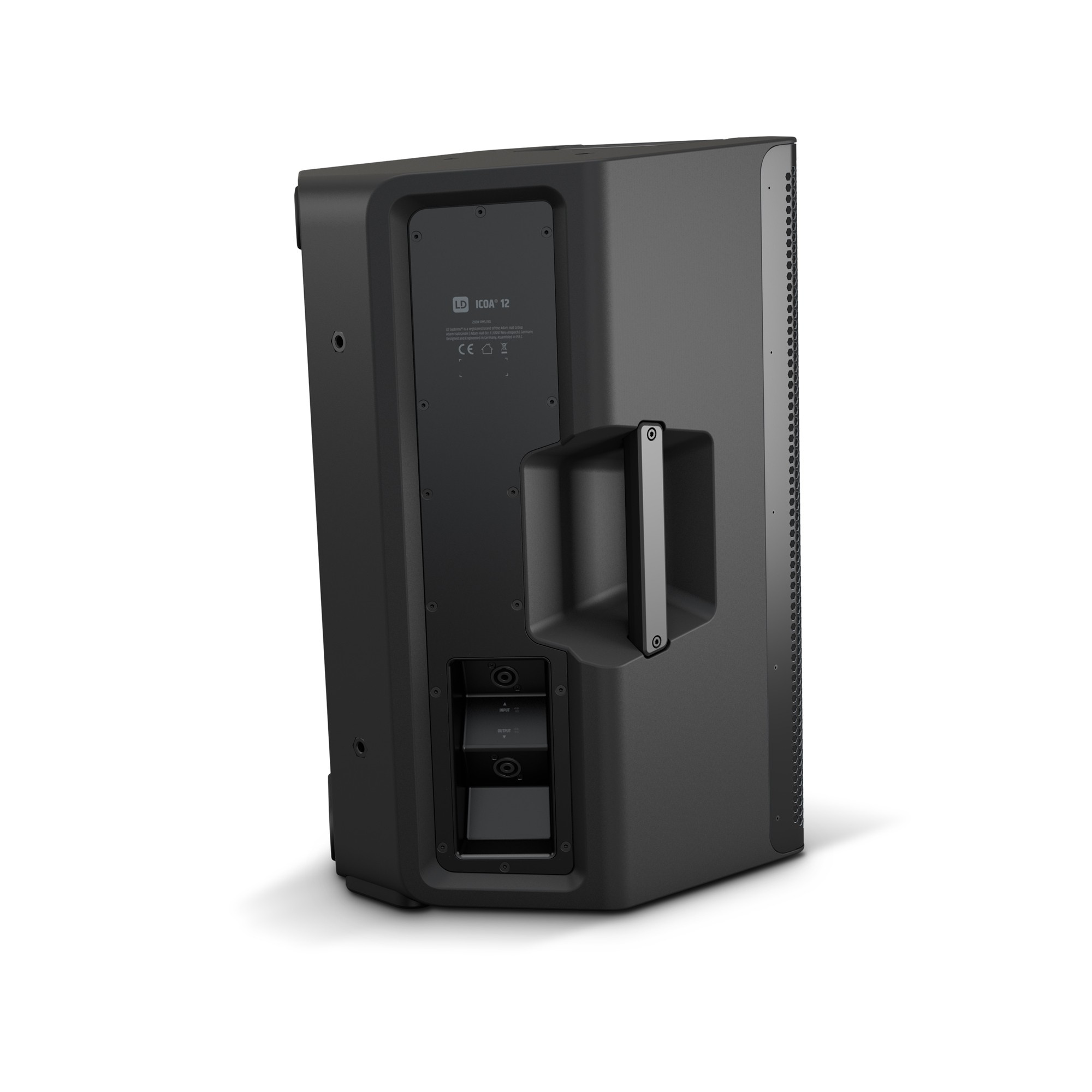

Inputs/Outputs:
- 1 x Speakon input
- 1 x Speakon output
Polypropylene cabinet, bass-reflex construction

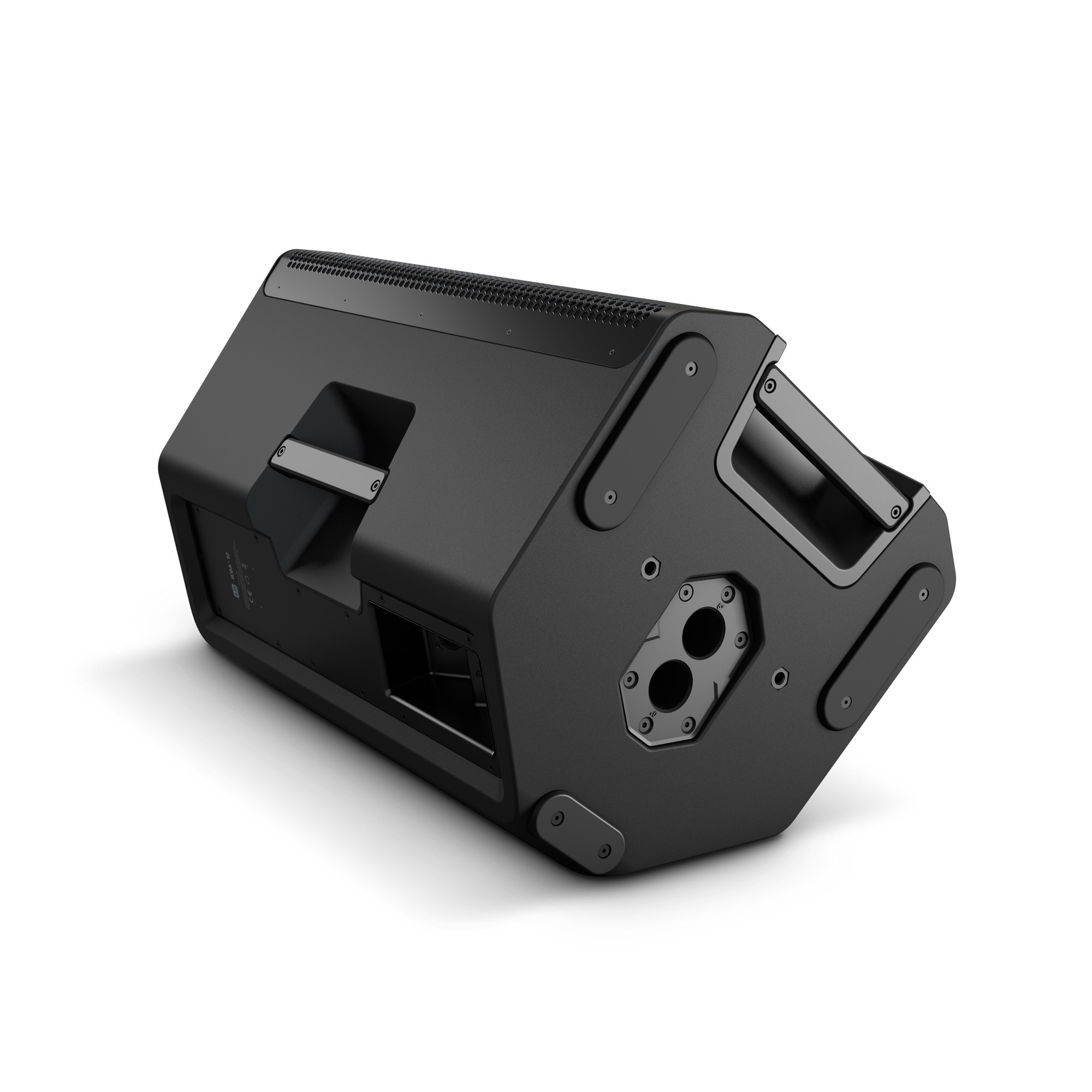

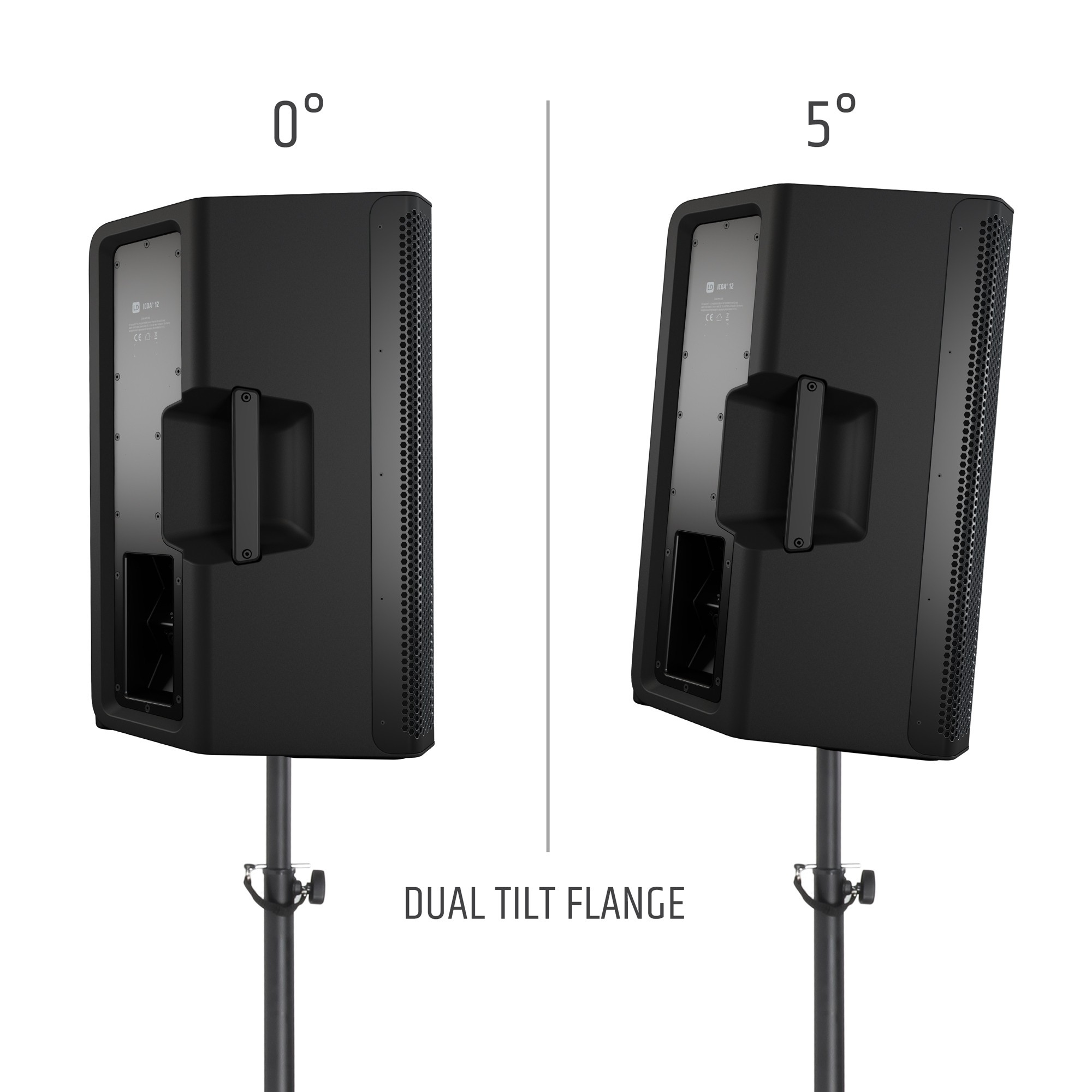

2 x 36 mm diameter stand mounts: 5° and 0° tilt, 6 x M10

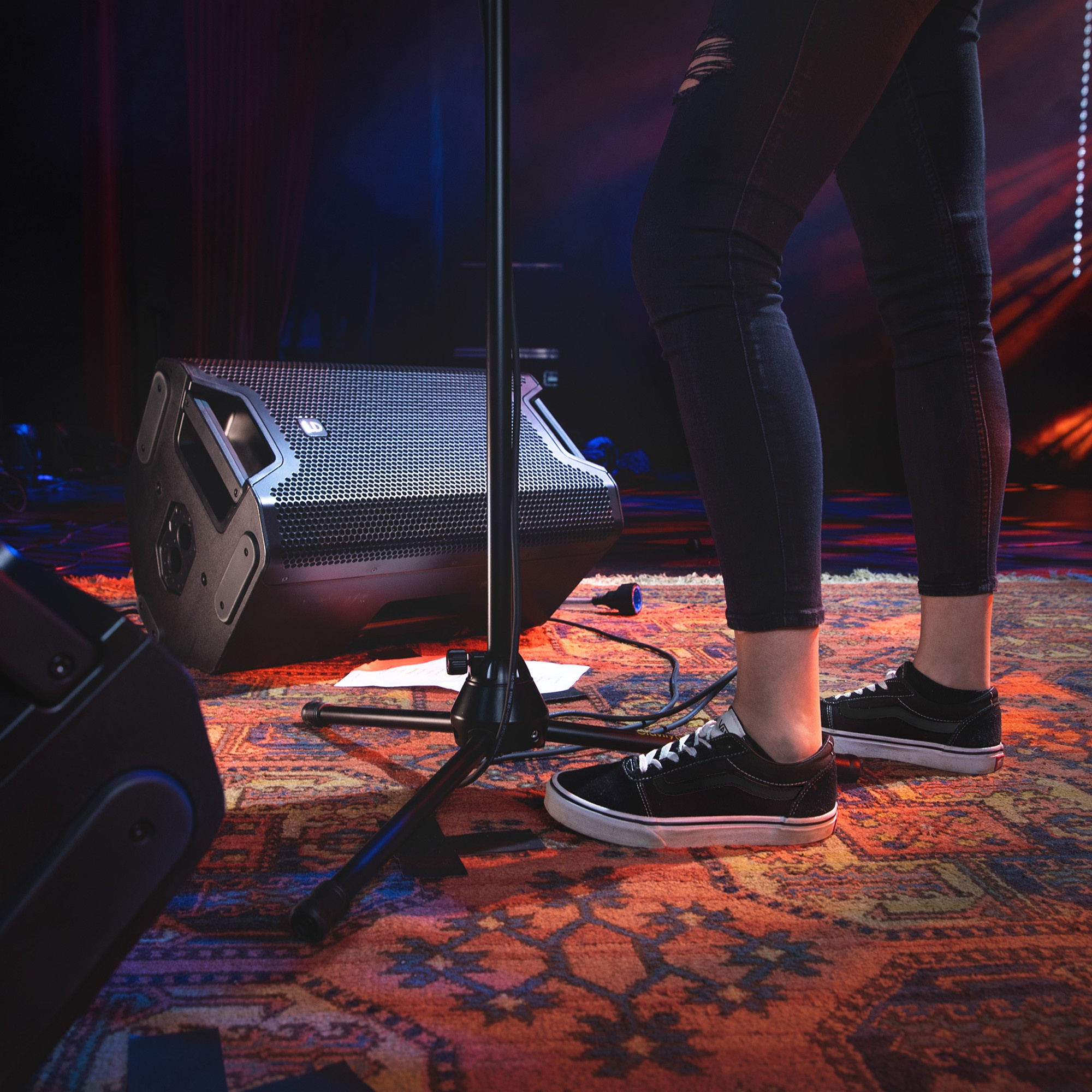

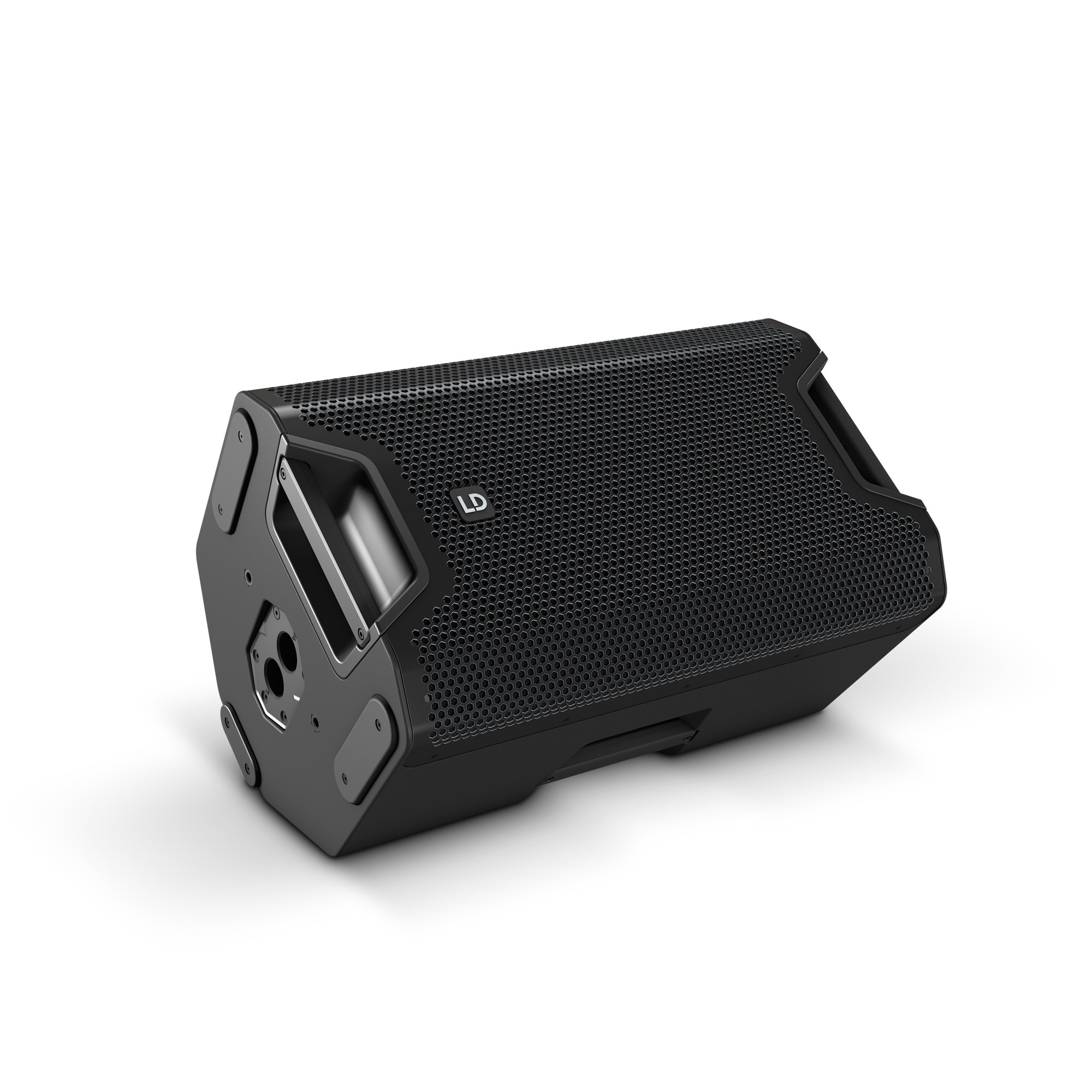

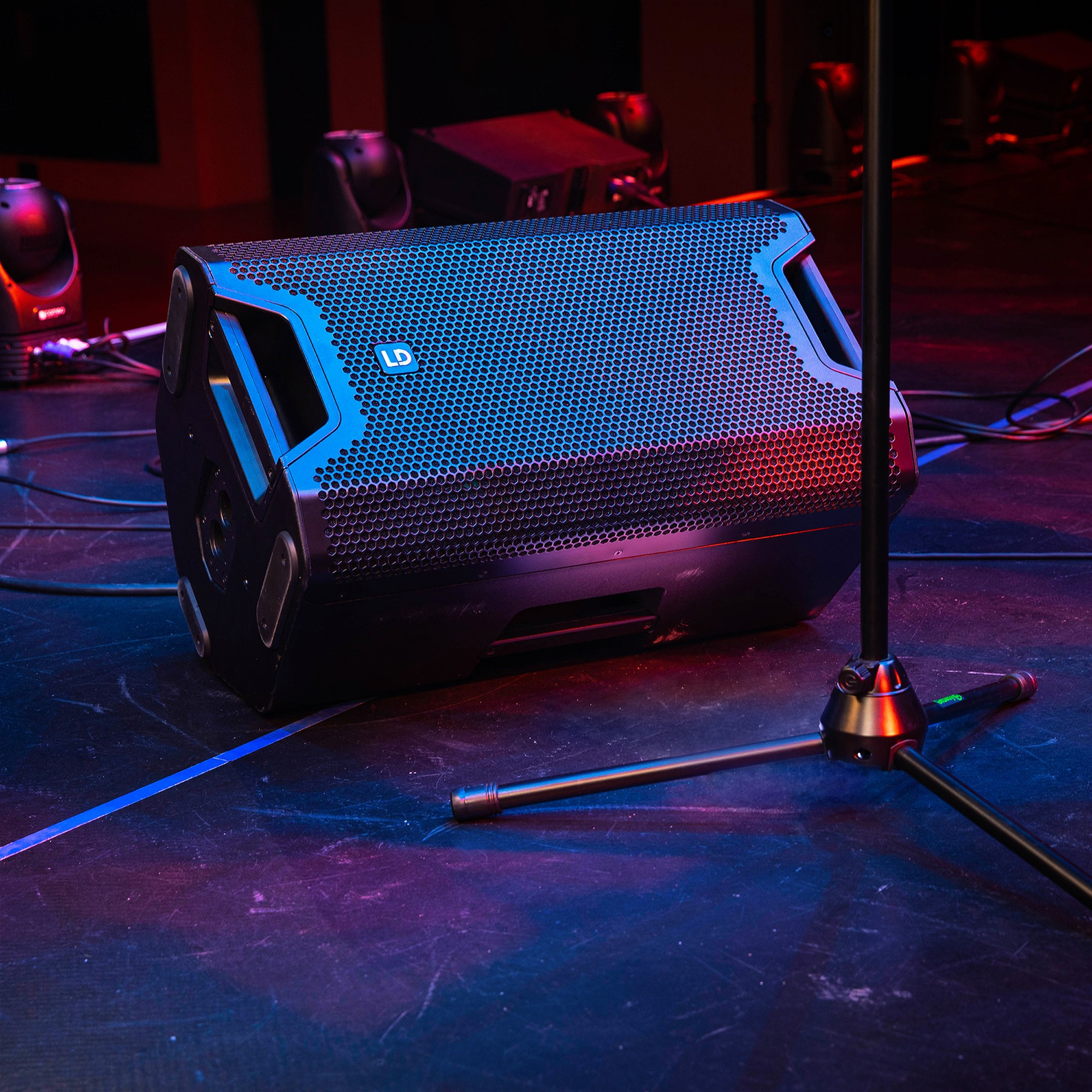

Monitoring angle: 55°
Impedance: 8 ohms
Dimensions: 375 x 635 x 396 mm
Weight: 19.8 kg

Product code: LDICOA12

Unit of sale: piece

Specifications:

Impedance:	8 Ohmi
Enclosure:	plastic
RMS manageable power:	250 W
Mid-bass speaker:	12"
