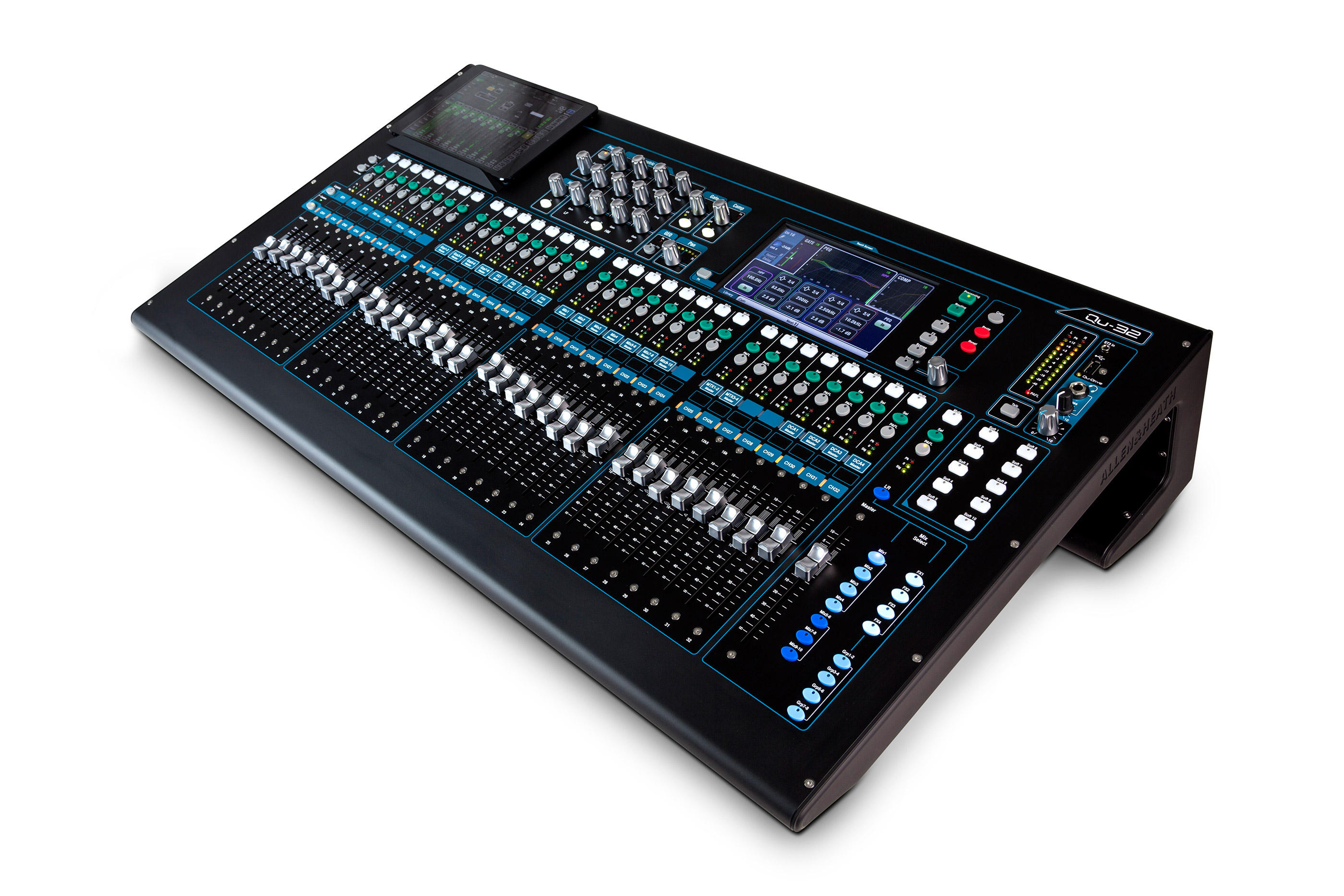

Allen&Heath QU-32 Chrome

Allen & Heath QU-32, digital audio mixer for live or studio applications with a 7” touchscreen, 33 motorised faders, AnalogiQTM preamps. The QU-32 combines exceptional audio performance with a very user-friendly interface, derived from the GLD and iLive series, in a compact and affordable format.

• digital mixer with 32 mono microphone/instrument channels + 3 stereo channels
• 4 FX stereo returns
• 4 groups
• 24 mix outputs
• 2 x matrix stereo outputs
• 4 effects engines derived from iLive
• iLive effects library
• digital AES output
• motorised, automatable faders
• integrated audio interface via USB, QU-Drive, 24-bit / 48 kHz: USB recorder on 32 x 32 tracks
• 7” touchscreen
• dSnake port: compatible with AR2412 and AR84 digital stageboxes - compatible with ME monitoring systems
• through the QU-Pad app for iPad, you can control the mixer functions from the iPad connected via Wi-Fi to the mixer
• multi-track audio streaming to Mac natively via CoreAudio (Mac only)
• DAW control via MIDI
• 10 assignable softkey buttons for various functions like Mute Group, Tap tempo, scene navigation, PAFL clear
• integrated high-pass filters
• dynamics effects: gate, compression, limiter, insert
• compressor and delay on all inputs
• compressor and delay on stereo outputs
• 4-band PEQ parametric equaliser
• integrated signal generator, RTA indicator
• automatic microphone mixer
• dimensions: 850 x 500 x 186 mm
• weight: 20 kg
