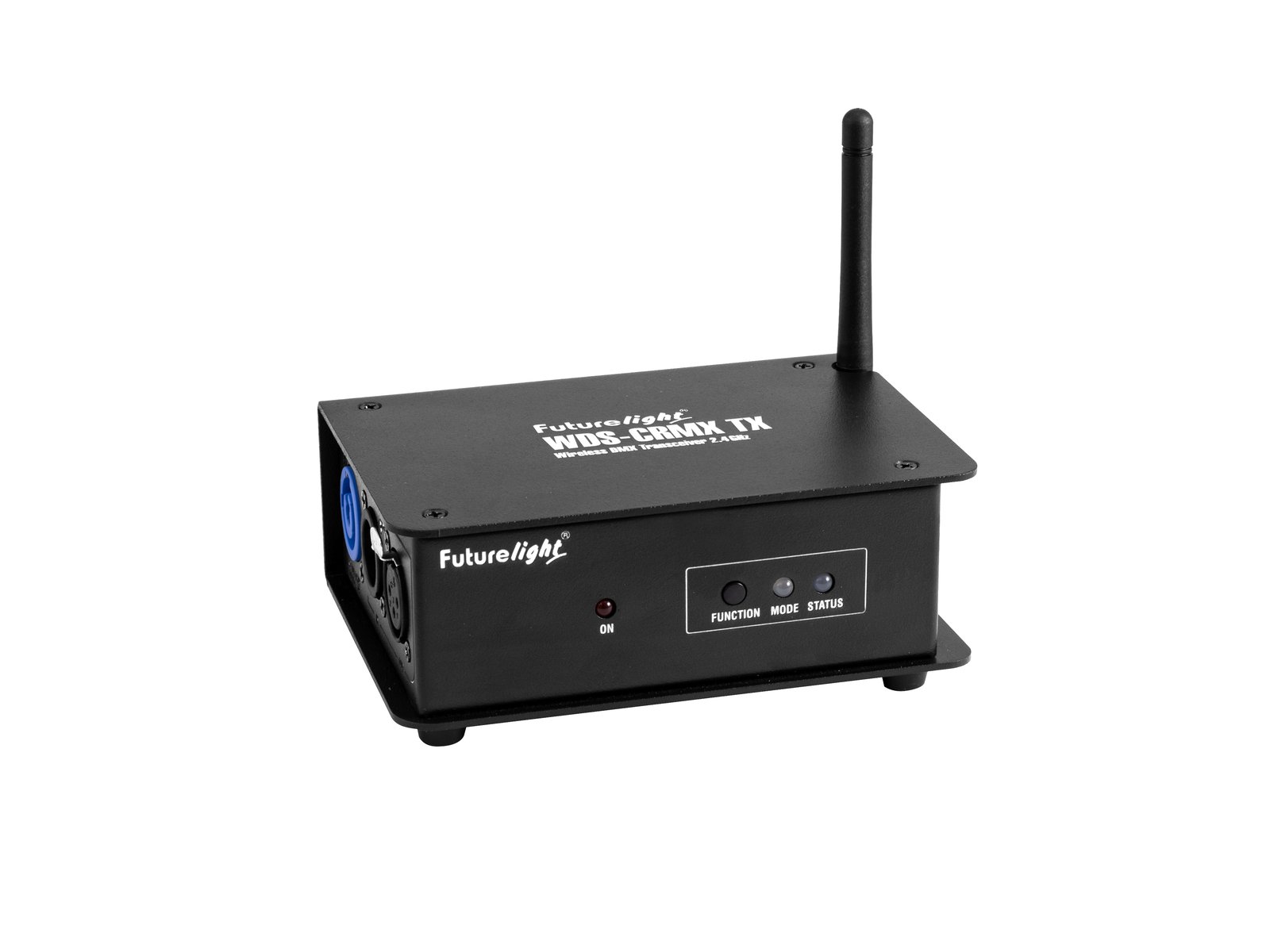

FutureLight WDS-CRMX TX Wireless DMX Transceiver

Wireless DMX transmitter/receiver

transceiver, to be used as transmitter or receiver
control via CRMX by LumenRadio; W-DMX by wireless solution
adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
can receive and process up to 512 DMX channels
can transmit up to 512 DMX channels

260⁵⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1286 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

FutureLight WDS-CRMX TX Wireless DMX Transceiver Add to cart: 260⁵⁴ €

Wireless DMX system (2.4 GHz) - compact transceiver with CRMX unit

Transceiver, to be used as transmitter or receiver
Control via CRMX by LumenRadio; W-DMX by wireless solution
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Operating range up to 600m with line-of-sight
Multicolored LED indicator
With a KENSINGTON LOCK theft protection

Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	2 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Device fuse:	T 1 A Fuse serviceable
DMX channels:	Input 512 Output 512
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	CRMX by LumenRadio; W-DMX by wireless solution
Attachment system:	M10 thread
Status LED:	DMX, level meter
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Antenna gain:	3 dBi
Parallel mode:	Max. 10 transmitter
Range:	Range up to 600m with line-of-sight
Color:	Black
Theft protection:	KENSINGTON LOCK
Dimensions:	Length: 14,1 cm Width: 9,8 cm Height: 5,6 cm
Weight:	700 g
