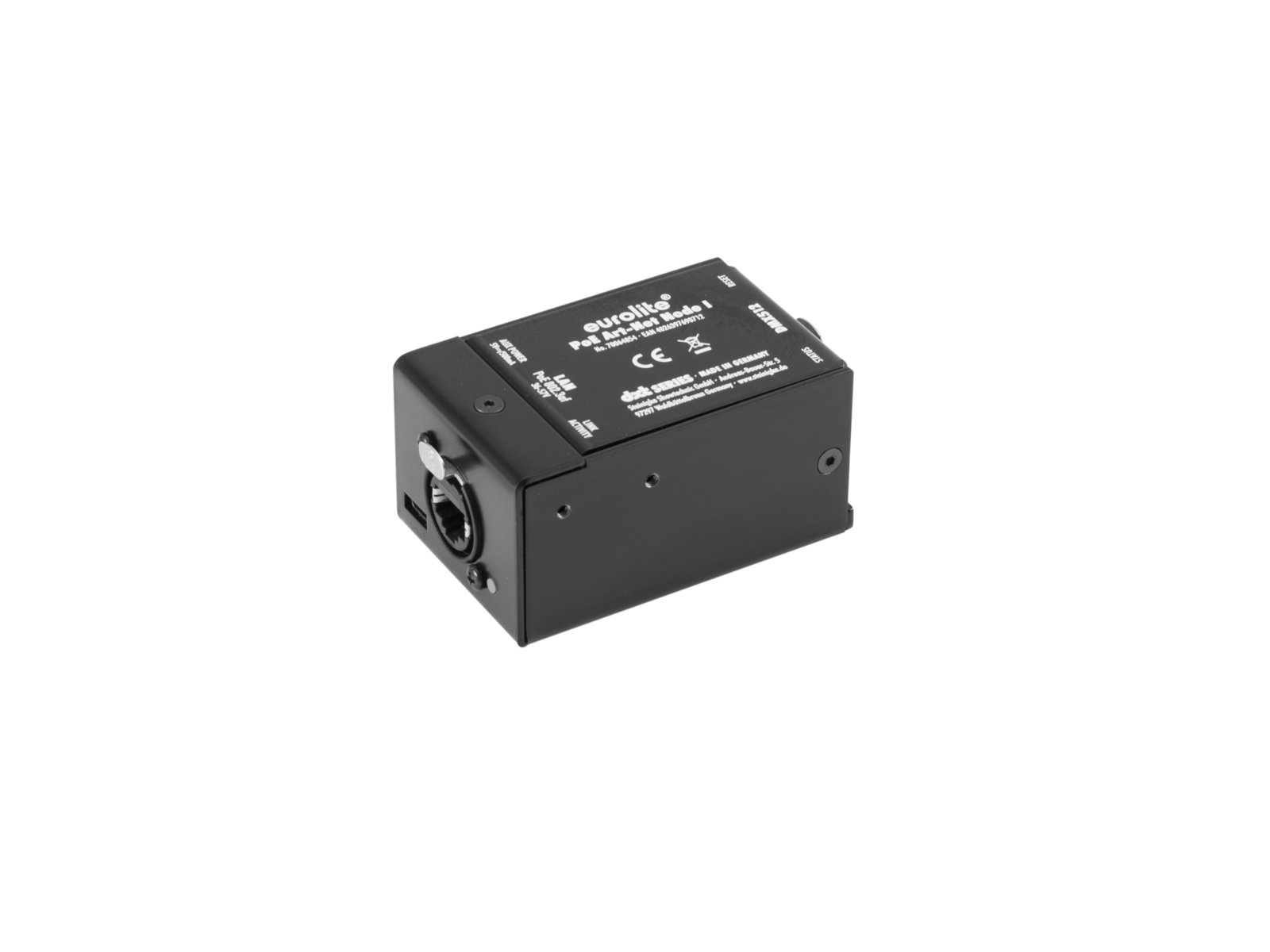

Eurolite DXT PoE Art-Net Node I

DMX control interface

power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
the apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
dMX refresh rate: 40 Hz, 30 Hz or 20 Hz
artDMX reception via Broadcast or Unicast
configuration with website or Art-Net

176⁸⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

873 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite DXT PoE Art-Net Node I Add to cart: 176⁸⁸ €

Art-Net interface for control of 512 DMX channels

Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
ArtDMX reception via Broadcast or Unicast
Configuration with website or Art-Net
Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
Rugged metal housing
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Control via ArtNet; Light´J app; Light Captain App
Built with NEUTRIK connector
Made in Germany

Power supply:	5 V DC 500 mA 37-56 V DC
IP classification:	IP20
Power connection:	Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) Mains input via RJ-45 (F) mounting version
DMX channels:	Input 512 Output 512
DMX output:	1 x 3-pin XLR (F) mounting version
Network connection:	Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s
Control:	ArtNet; Light´J app; Light Captain App
Status LED:	Signal, link
Use of brands:	Built with NEUTRIK connector
Color:	Black
Dimensions:	Width: 7,8 cm Depth: 5 cm Height: 4,2 cm
Weight:	290 g
