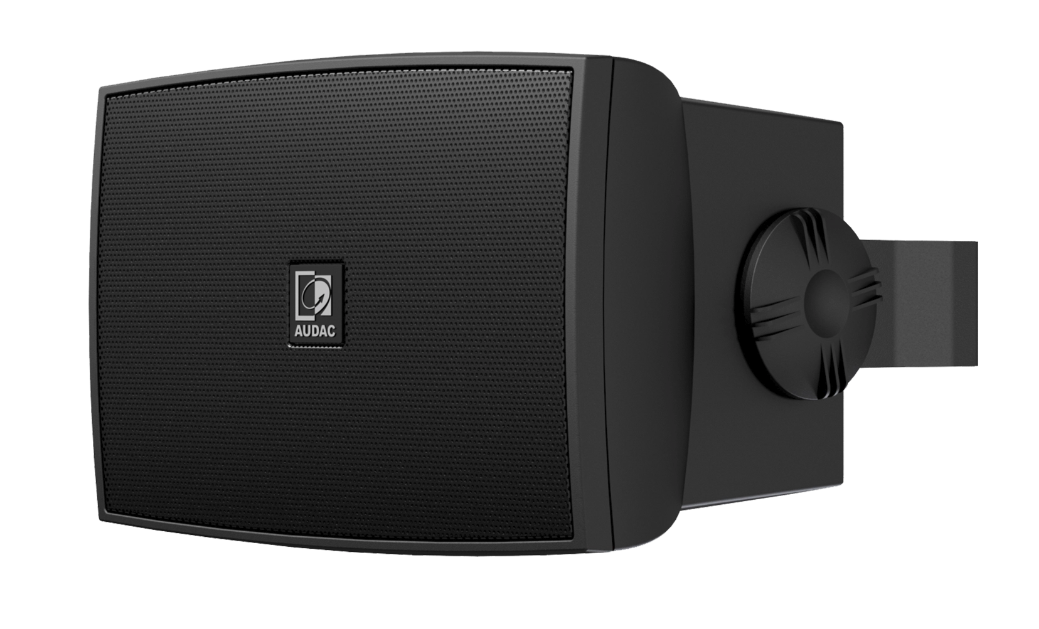

Audac WX 302 MK2 OB

Outdoor Mounting Speaker

2-way architecture with a 1" tweeter and 3" woofer for high-quality sound.
iP55 protection grade, ideal for outdoor applications.
crossover frequency of 2.5 kHz and frequency range of 60 Hz - 20 kHz.
includes wall mounting bracket and 5-pin connection cable.
lightweight design at 1.6 kg with ABS construction.

Variants:

111⁸⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

554 points of loyalty

Shipping 19.00 €

Warranty 24 months

Returns 14 days

request details

Audac WX 302 MK2 OB Add to cart: 111⁸⁵ €

WX 302 MK2 OB - Passive 2-way speaker with included mounting bracket, specially designed for outdoor use, suitable for a variety of applications, ensuring accurate and high-fidelity reproduction of music and speech.

2-way architecture
Water-resistant connector AWX-5
Crossover frequency 2.5 kHz
Passive system
Drivers
- 1" tweeter
- 3" woofer
Frequency range (-10 dB) 60 Hz - 20 kHz
Frequency response (± 3 dB) 90 Hz - 18 kHz
Impedance 8 Ω
Protection grade IP55
Peak power 120 W
Programmable power 60 W
Sensitivity (1W/1m) 85 dB
SPL (max)
- @ 100 V 95 dB
- @ 8 Ω 100 dB
RMS/AES power 30 W
Dispersion
- Horizontal 100°.
- Vertical 100
Line transformer: Connections
- 1 250 Ω - 100 V / Not used - 70 V / 20 W
- 2 500 Ω - 100 V / 20 W - 70 V / 10 W
- 3 1000 Ω - 100 V / 10 W - 70 V / 5 W
Dimensions 199 x 129 x 120 mm
Weight 1.6 kg
Operating temperature -25 °C ~ 70 °C
ABS construction
Aluminium grille
Colours Black (RAL9005)
Included accessories
- Wall mounting bracket
- 5-pin connection cable (70 cm) AWC07

Product code: WX302MK2/OB

Unit of sale: piece

Specifications:

IP protection code:	IP55
Power at 100V:	30 W
Colors (RAL):	black RAL 9005
Weight:	1.6 kg
Dimensions:	199 x 129 x 120 mm
SPL:	95-100 dB
Frequency response:	90 Hz - 18 kHz
