Klark Teknik DI 20P

Passive DI-Box

passive DI Box with 2 channels
midas transformers with extended dynamic range
inputs: 2 × 6.3 mm jack
output: Neutrik XLR
frequency response: 20 Hz – 30 kHz (±1 dB)

69⁰⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

342 points of loyalty

Shipping 19.00 €

Returns 14 days

request details

Klark Teknik DI 20P Add to cart: 69⁰⁵ €

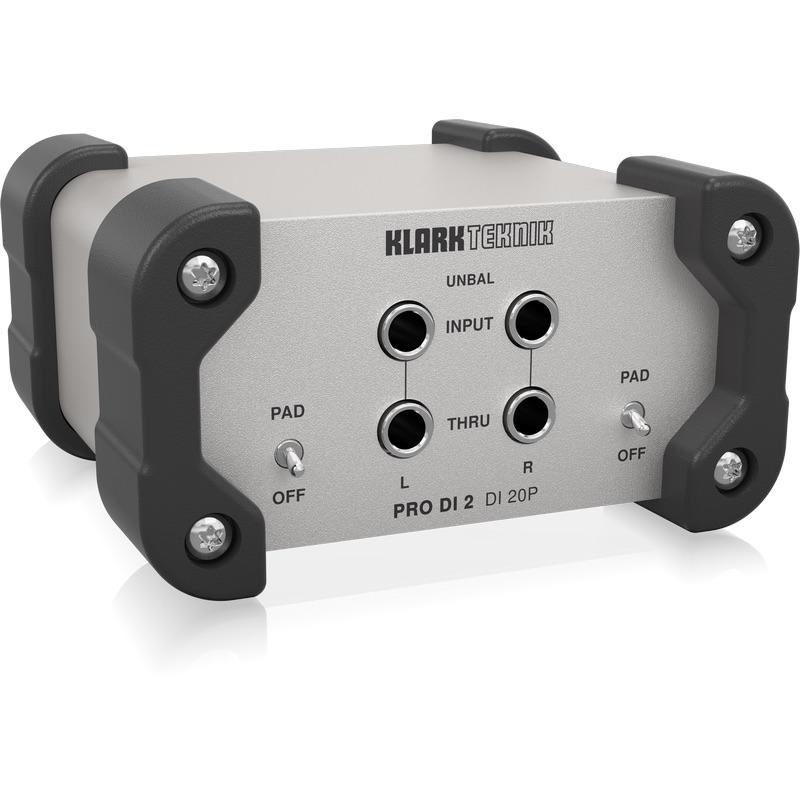

Klark Teknik DI 20P - Passive DI box with 2 channels, equipped with Midas transformers for audio signal conversion and connecting high-impedance sources to professional audio systems. It is designed for use in live and studio applications, providing signal separation and noise reduction.

Passive DI Box with 2 channels
Midas transformers with extended dynamic range
Inputs: 2 × 6.3 mm jack
Output: Neutrik XLR
Attenuation pad: 2 × -15 dB
Ground Lift switch
Input impedance: 500 kΩ (10 kΩ with PAD active)
Output impedance: 150 Ω (@ 1 kHz)
Frequency response: 20 Hz – 30 kHz (±1 dB)
Signal-to-noise ratio: 108 dBu
Durable metal housing
Rubber feet for stability
Dimensions: 118 × 64 × 112 mm
Weight: 0.54 kg
