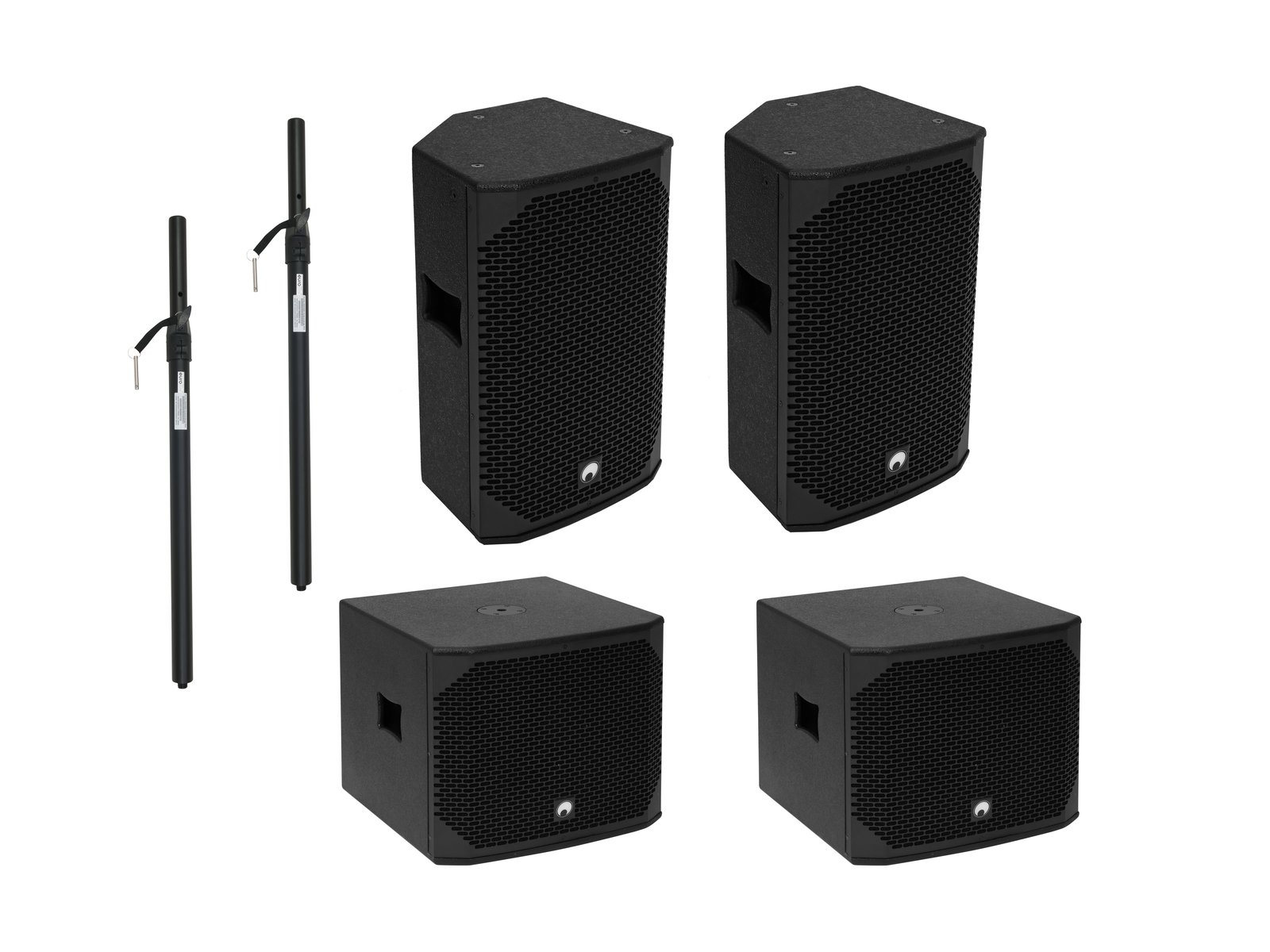

2x AZX-115A active PA subwoofer 400W, 2x AZX-212A 2-Way Top active 250W and 2x distance tube
Active PA subwoofer OMNITRONIC AZX-115A 400W
15-inch bass reflex active PA subwoofer, 400 W
- 38 cm (15") bass driver with 63 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel L/R outputs
- L/R XLR output with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Sturdy transport handle
- Black metal grille with acoustic foam
Package contents
- 1 x bass, 1 x user manual, 1 x power cable
OMNITRONIC AZX-212A 2-Way Top active 250W
Active speaker with 12-inch woofer, 1.35-inch titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bass-reflex housing with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable microphone/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Dual flange with tilt angle of 0° and 5° allows flexible positioning
- Black metal grille with acoustic foam
- Sturdy transport handle
- Application possibilities: Standing; suspended; monitoring; on tripod
- With rigging points
Package contents
- 1 x user manual, 1 x power cable, 1 x compact speaker
Distance tube OMNITRONIC/Satellite M20
Variable distance tube
- Connecting tube for satellite systems
- Screw and locking screw
- Powder-coated steel version
- M20 thread
Package contents
- 1 x distance tube, 1 x user manual
| Weight: | 98.80 kg |
| Active PA subwoofer OMNITRONIC AZX-115A 400W |
| Power: | Nominal power: 400 W RMS |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input via IEC (M) connector power cable mounting version with safety plug (supplied) |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 94 dB (1W/1m) |
| Attachment system: | M20 thread |
| Circuits: | Class D |
| Control elements: | Phase reverse switch |
| controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR |
| Crossover frequency: | 80-200 Hz |
| Speaker: | 1 x woofer (15") approximately 38 cm
Voice coil reductions (2.5") approximately 6.35 cm |
| Speaker type: | Subwoofer |
| Construction type: | Ported |
| Transport handle: | 1 pc/piece |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | Black textured paint finish |
| dimensions: | Width: 58 cm
Depth: 60 cm
Height: 52 cm |
| Weight: | 29.35 kg |
| OMNITRONIC AZX-212A 2-Way Top active 250W |
| Power: | Nominal power: 200 W RMS LF
Rated: 50 W RMS HF |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input via IEC (M) connector power cable mounting version with safety plug (supplied) |
| Frequency range: | 55 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Bracket: Ø 35mm variable tilt |
| Flying points: | 7 x M10 thread |
| Circuits: | Biamp class D |
| controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: 1 x combined XLR/6.35 mm jack (F) with 3 pins (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via combined socket (XLR/jack), channel control via rotary selector |
| Equalizer: | Master: 1 tone control with 2 bands |
| Speaker: | Woofer (12") approx. 30 cm with ferrite magnet
Voice coil reductions (2") approximately 5 cm
High-frequency compression driver (1.35") approximately 3.5 cm |
| Speaker type: | Compact cabinet speaker |
| Transport handle: | 1 pc/piece |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | Black textured paint finish |
| dimensions: | Width: 43 cm
Depth: 40.5 cm
Height: 67 cm |
| Weight: | 19.15 kg |
| Distance tube OMNITRONIC/Satellite M20 |
| Maximum load capacity: | 30 kg |
| Tube diameter sector: | 41 - 35 mm |
| Height: | Maximum: 130 cm
Minimum: 75 cm |
| Attachment system: | Ø 35mm |
| Type (general supports): | Distance tube |
| Colour: | Black |
| Thread: | M20 thread |
| Weight: | 900 g |
