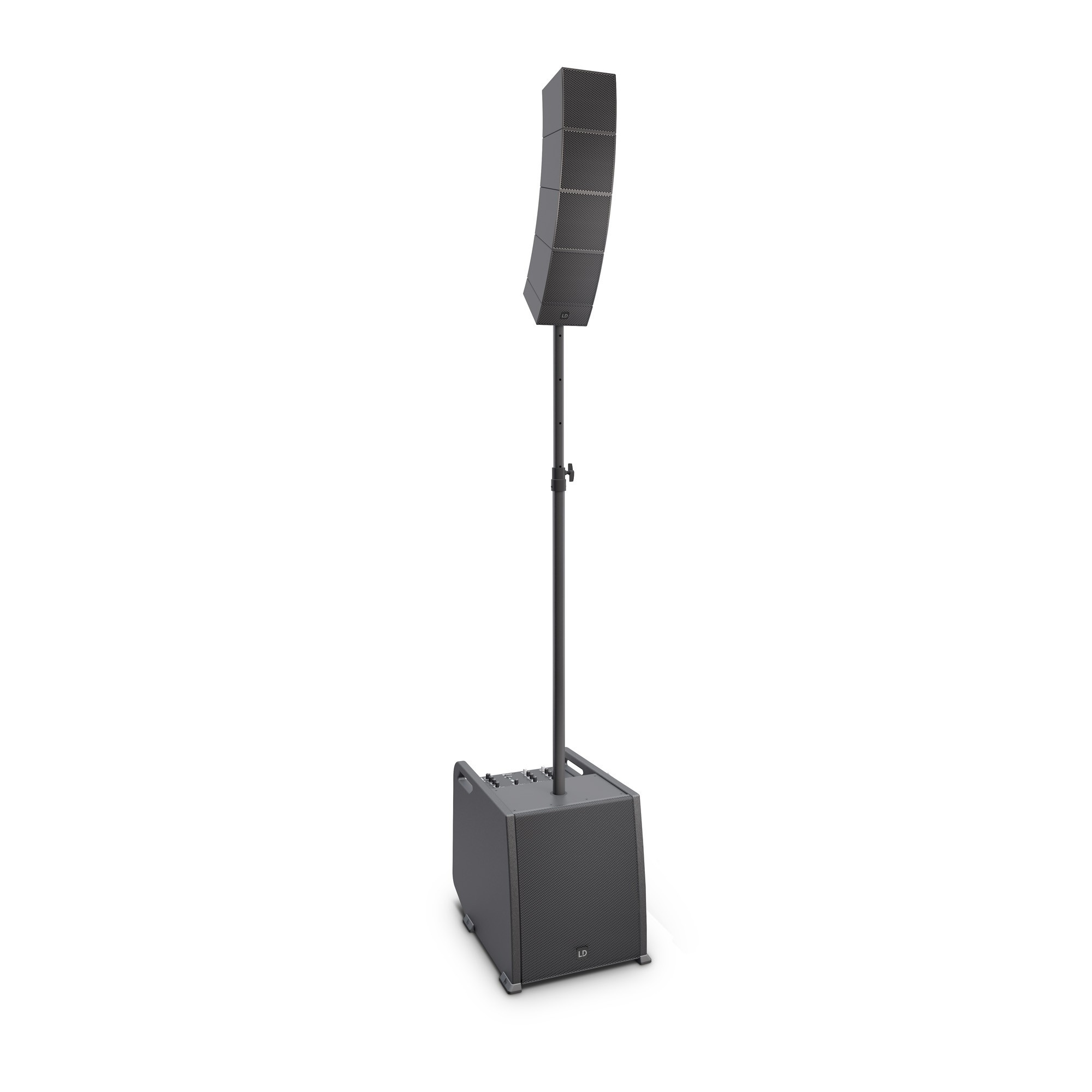

LD Systems CURV 500 ES

LD Systems CURV 500 ES, a compact sound system featuring a curved vertical line array with an amplified subwoofer, mixer, and satellites with WaveAhead® technology. Each satellite has a 4" midrange driver and 3 x 1" high-frequency drivers, connecting via the SmartLink® plug-n-play system.

The 10" subwoofer includes a Class D amplifier with limiter and integrated protections, along with a 4-channel mixer featuring 16 digital effects and Bluetooth receiver.

The CURV 500 ES system delivers 620W RMS power and a peak sound pressure of 128 dB SPL and includes:

• 1 x amplified subwoofer with integrated mixer
• 4 x satellites
• 1 SmartLink® adapter
• 1 spacer
• cable for satellites

Specifications:

• curved vertical line array system
• system power: 620 W RMS
• sound pressure: 122 dB SPL continuous, 128 dB peak
• frequency response: 47 Hz - 20 kHz
• coverage H x V: 110° x 10° / satellite
• amplification / channel: 300W subwoofer + 2 x 160W satellites
• integrated protections, DSP limiter, short-circuit, overheating, overcurrent
• integrated mixer with 4 channels + Bluetooth, FX processor with 16 effects, 4 system DSP presets
• M20 suspension points
• subwoofer dimensions: 325 x 383 x 491 mm
• satellite dimensions: 122 x 122 x 122 mm
