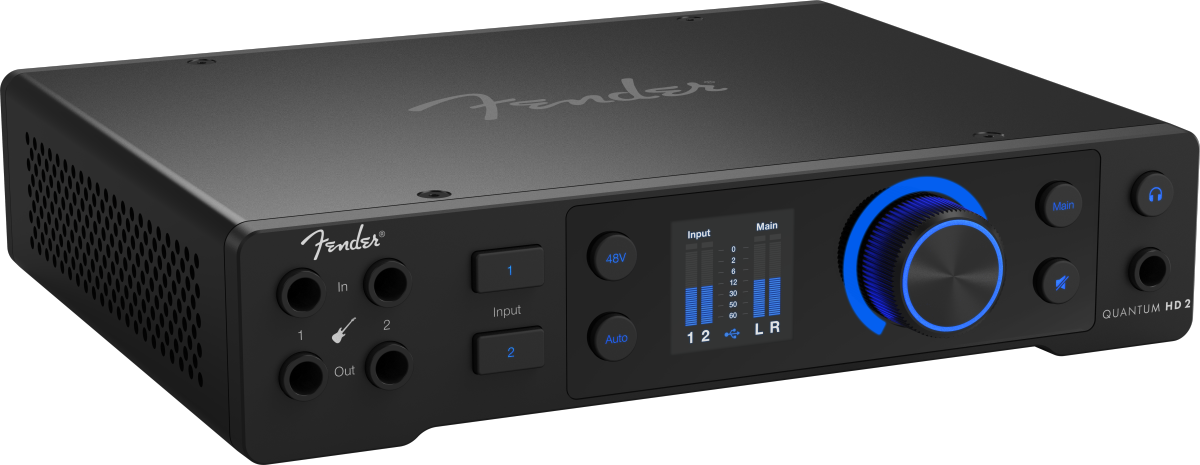

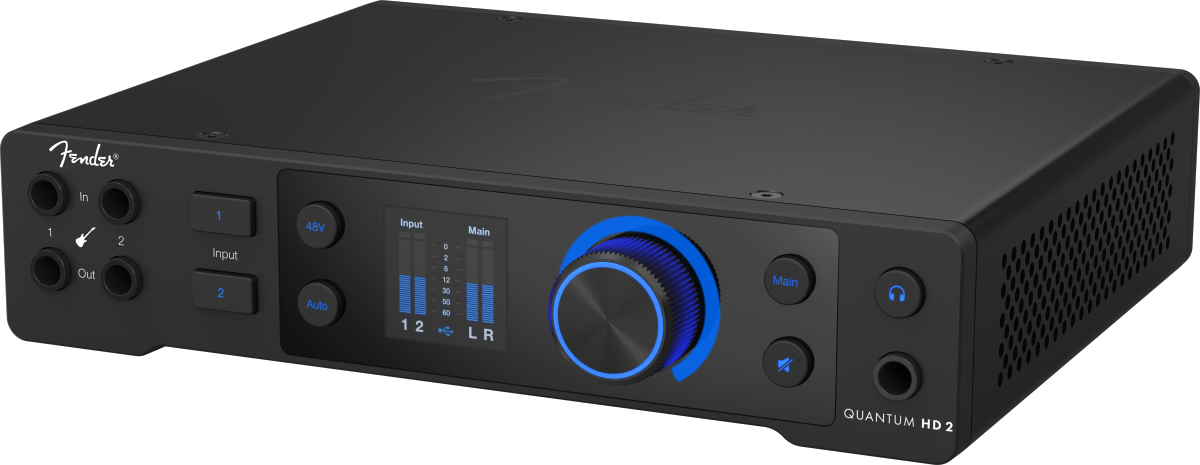

Fender Quantum HD 2 – USB-C audio interface 20x24, 32-bit / 192 kHz. It is a professional next-generation audio interface designed for modern studios, producers, and content creators who demand ultra-high-fidelity audio quality and extensive flexibility.
With 32-bit / 192 kHz conversion, MAX-HD preamps, and drivers optimised for ultra-low latency, HD 2 captures every detail of vocals, instruments, and complex sessions with exceptional clarity.
Equipped with 20 inputs and 24 outputs, including 16 ADAT channels and S/PDIF, the interface offers complete integration into any hybrid setup. Intelligent features such as Auto Gain, Re-Amp outputs, and DSP Monitor Mixer simplify the workflow and open up new creative possibilities.
Includes a perpetual license for Fender Studio Pro – a professional DAW with Mustang and Rumble plugins.
- 20-in / 24-out USB-C audio interface with 32-bit / 192 kHz conversion
- Drivers optimised for ultra-low latency and real-time performance
- MAX-HD preamps (+75 dB gain) for transparent, low-noise capture, compatible with any type of microphone
- High-fidelity audio flow, with an extended dynamic range (up to 124 dB)
- 16 ADAT channels + S/PDIF I/O for extensive digital integration

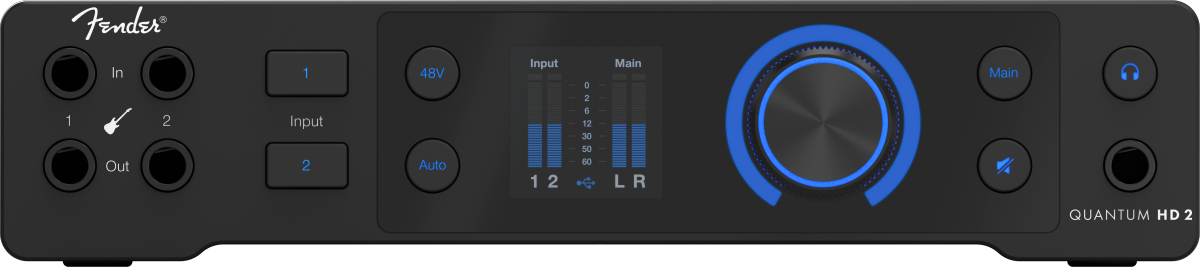

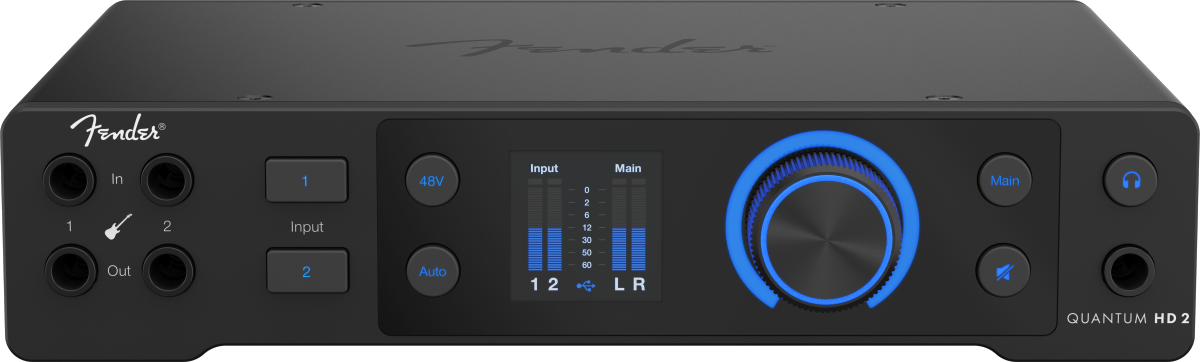

- Fender instrument inputs on the front panel, with plug-and-play clarity for guitar and bass
- Auto Gain function for quick and precise recording level setting
- Re-Amp outputs for experimenting with amplifiers and pedals
- DSP Monitor Mixer + Loopback for streaming, podcasting, and monitor mixes
- Full control via Fender Studio Pro and Universal Control (desktop & mobile)
- Flexible routing and remote control for professional workflow
- Compact design, ideal for studio or hybrid setups
- Includes a perpetual license for Fender Studio Pro
Specifications:
- USB-C interface 20 x 24
- Audio conversion and performance:
- 32-bit / 192 kHz
- Audio dynamic range: 124 dB
- High-fidelity conversion for all input sources
- Supported sample rates: 1, 48, 88.2, 96, 176.4, 192 kHz

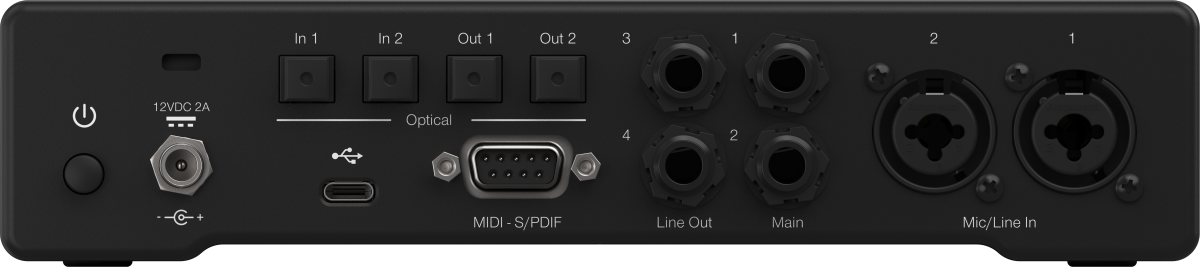

- Inputs and outputs:
- 2 x combo mic/line (XLR/jack)
- 2 x instrument inputs on the front
- 2 x Re-Amp outputs
- 2 x ADAT I/O and S/PDIF stereo I/O
- 2 x main TRS balanced outputs
- 2 x TRS line outputs
- MIDI input and output
- Stereo headphone output
- Features: DSP Monitor Mixer, Loopback Audio, Auto gain, Remote control (Studio Pro / Universal Control)
- Dimensions: 15 x 190 x 48 mm
- Weight: 1.32 kg
The package includes:
- Fender Quantum HD 2 interface
- USB-C to USB-C cable (1.5 m)
- Breakout cable (MIDI & S/PDIF)
- External power supply
- Quick start guide
- Perpetual license for Fender Studio Pro
