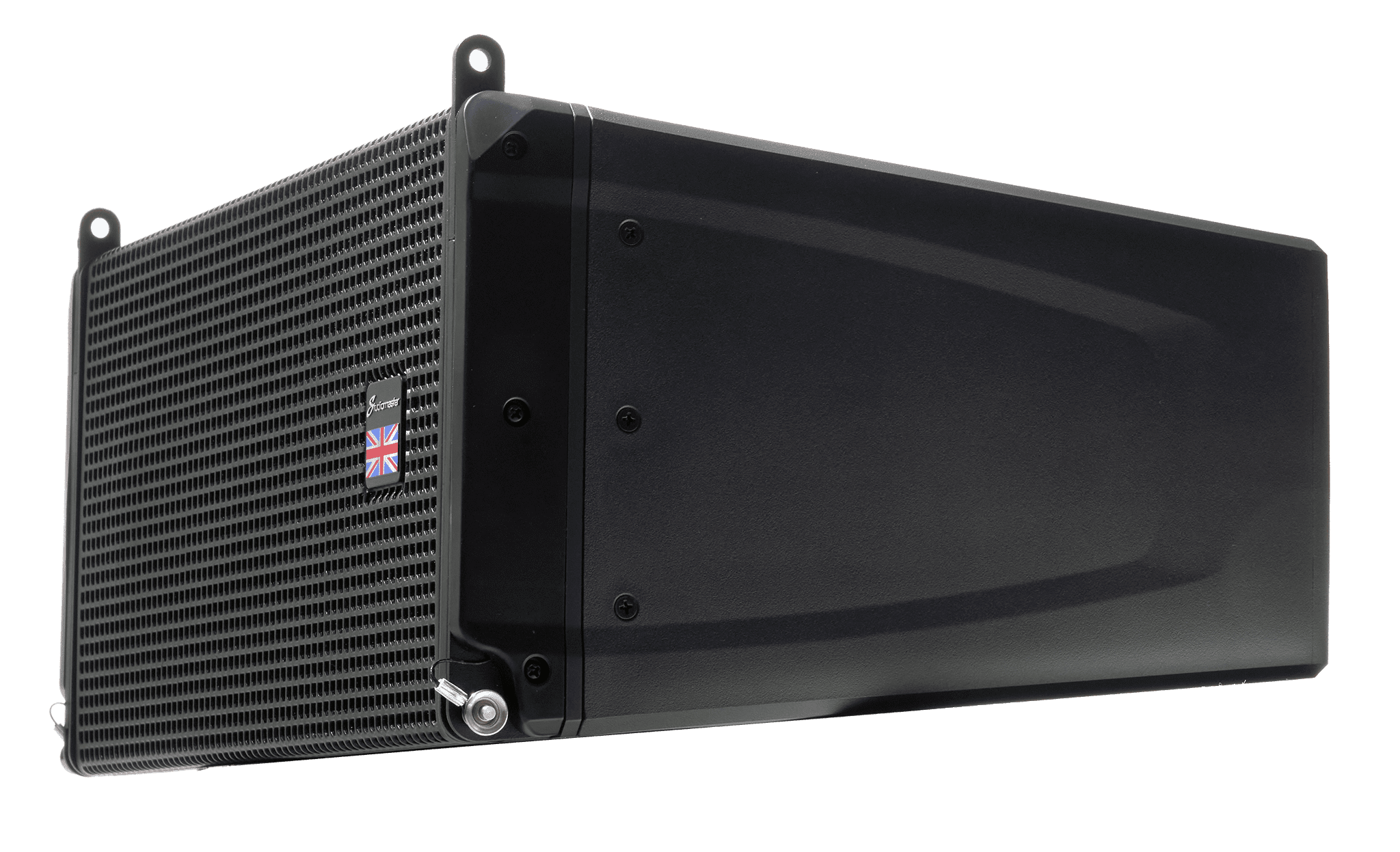

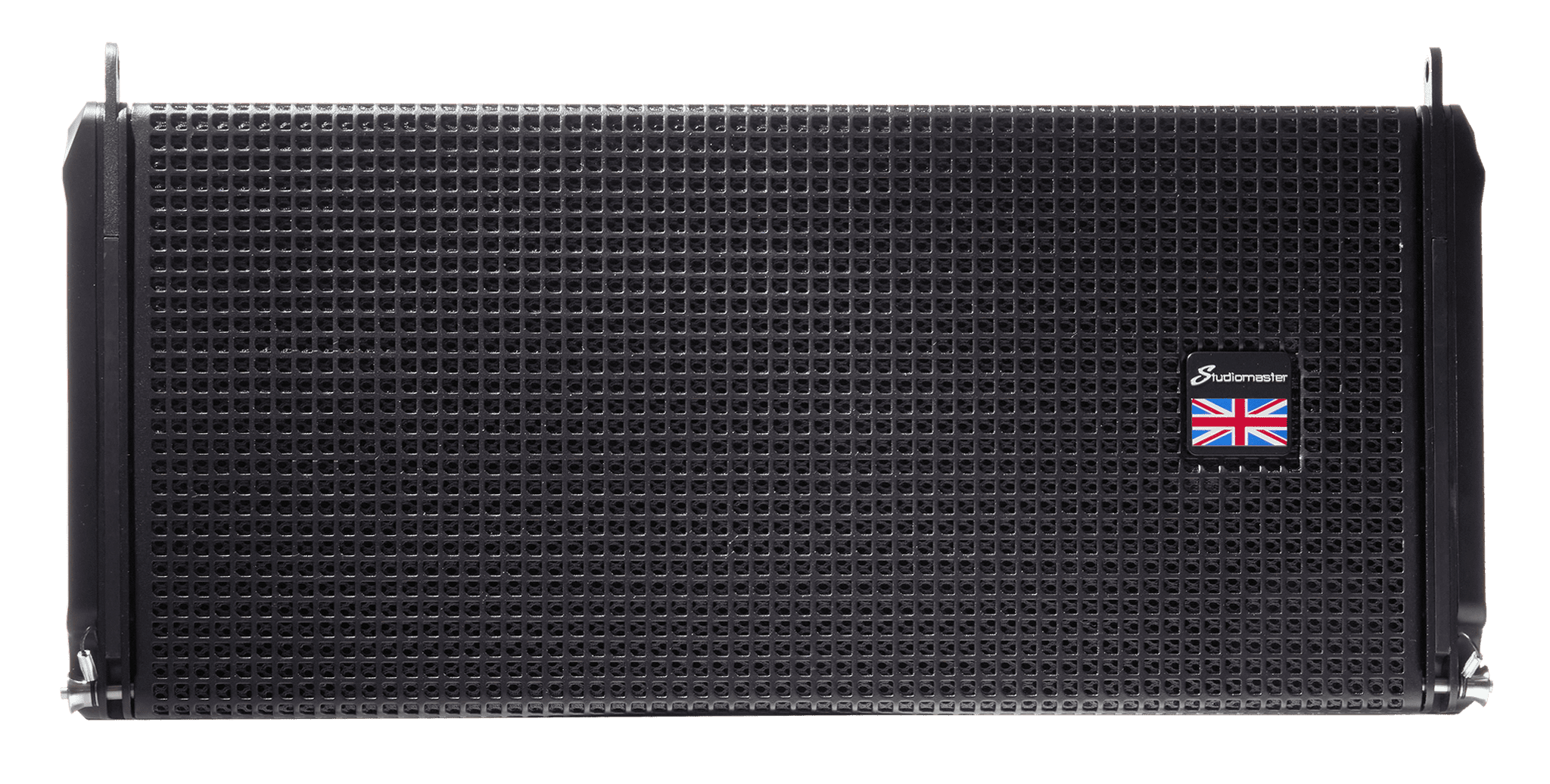

Studiomaster V6A Active Array

Studiomaster V6A Active Array - active line array enclosure, with integrated amplification and DSP. The system features two 6.5" MF speakers and a 3" HF driver, with a coverage of 100° horizontally and 10° vertically.

• Active line array enclosure, 2-way
• Amplification power: MF 400 W / HF 150 W
• Max SPL: 130 dB
• Frequency response: 70 Hz – 20 kHz (-10 dB)
• Speakers:
  • Mid/low speakers: 2 × 6.5", 38 mm voice coil
  • High driver: 1 × 3", 74 mm voice coil, neodymium
• Coverage: 100° × 10°
• Adjustable vertical angle: 0–10°, in 1° steps
• DSP: Gain, EQ, crossover, delay, threshold and volume
• Crossover frequency: Controlled via DSP
• Enclosure: Reinforced composite PP
• Connectors: Input/output for power and signal

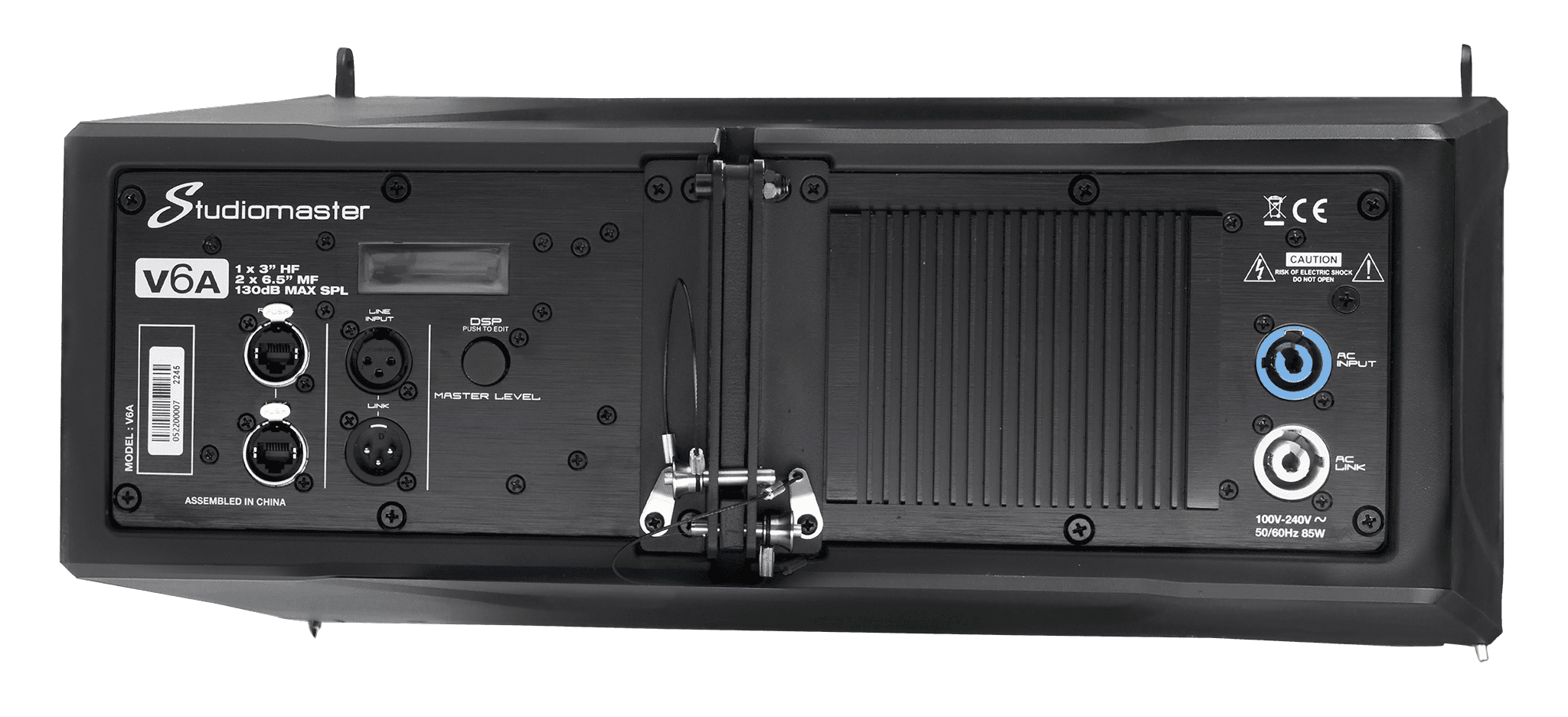

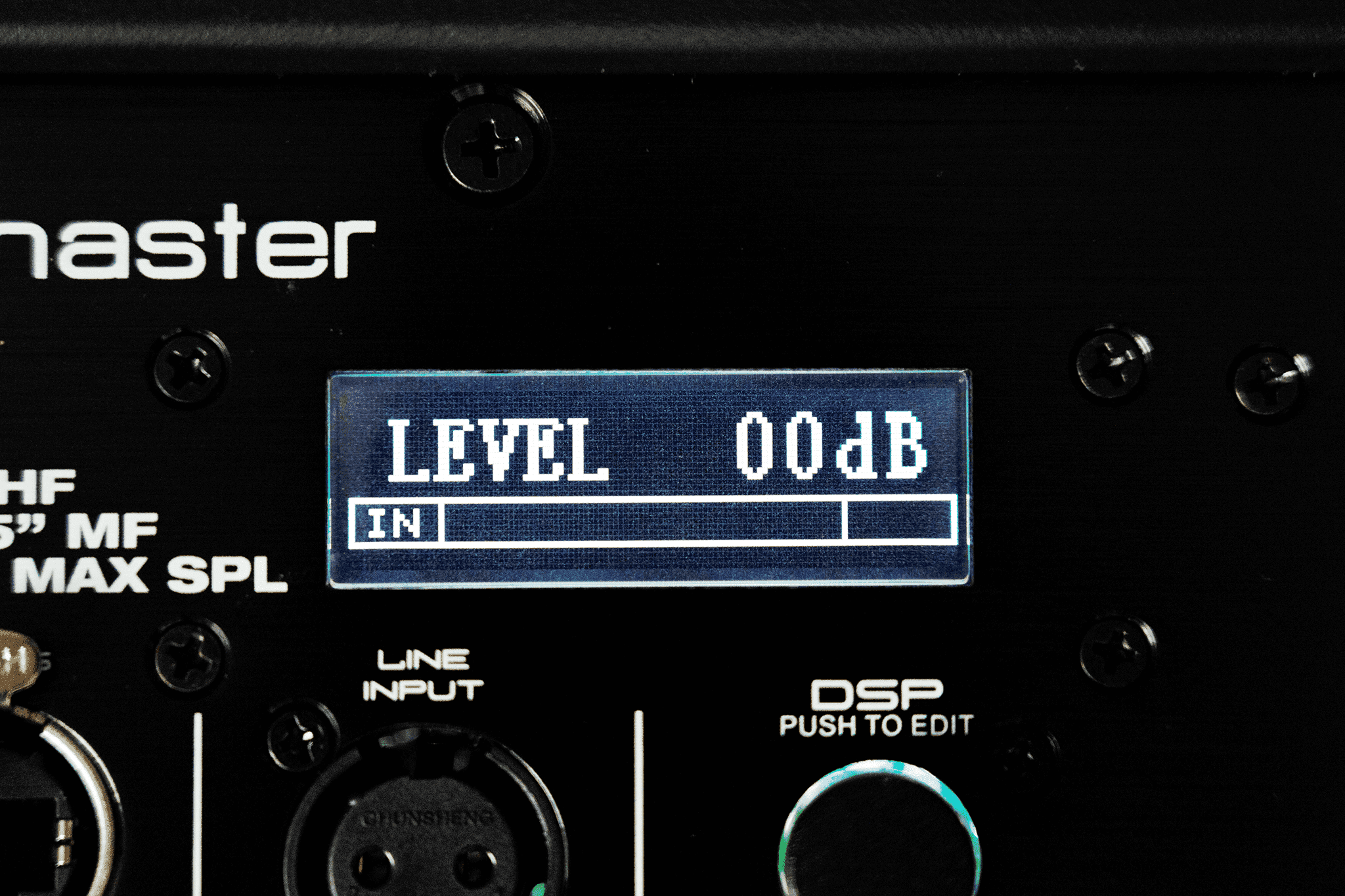

• DSP control: Display and encoder on the rear panel; RS485 connection for laptop control
• Dimensions: 470 × 207 × 341 mm
• Weight: 15 kg
• Colour: Black
