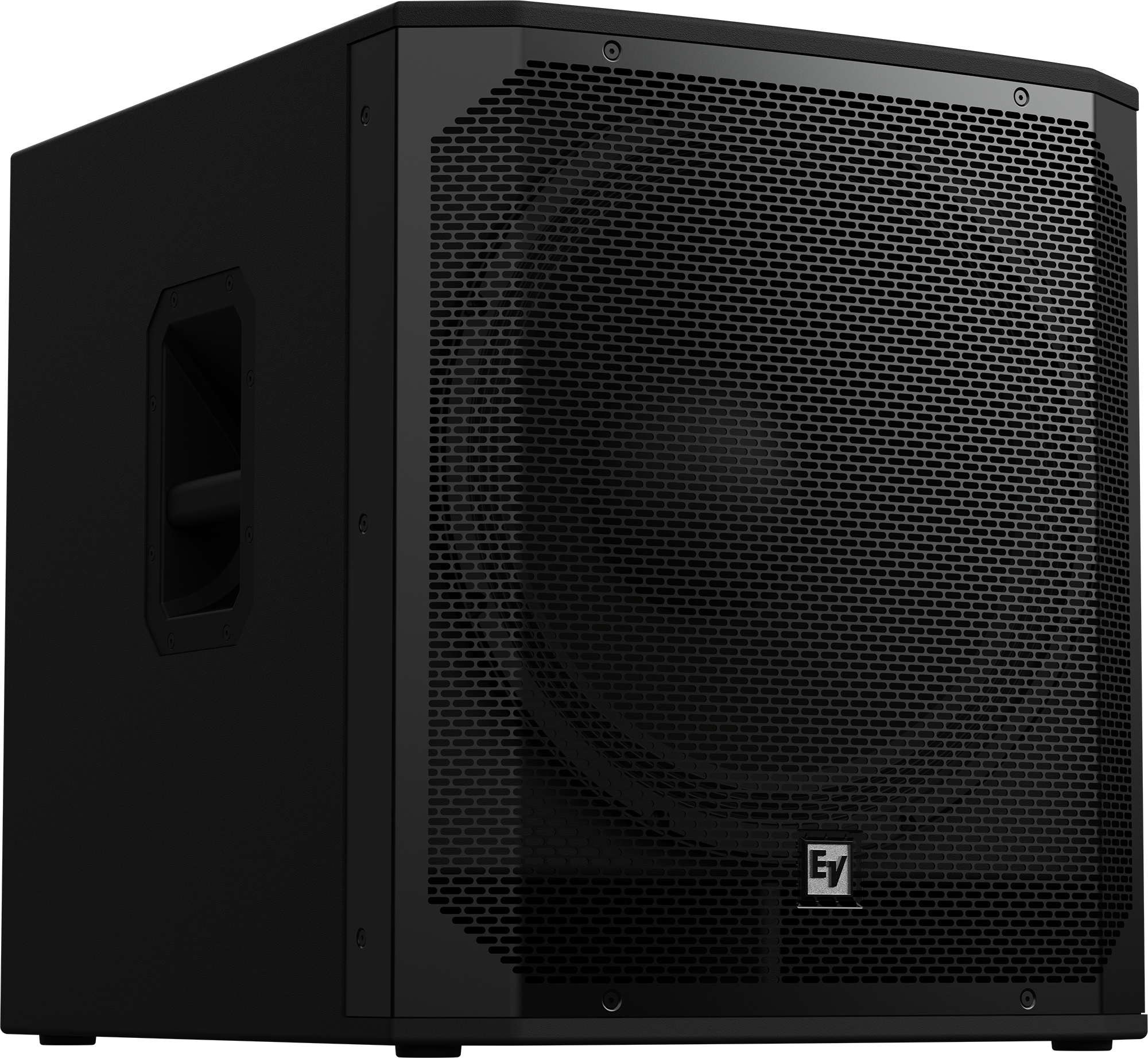

Electro-Voice EVIVA 18SP

Electro-Voice EVIVA 18SP – Portable active subwoofer designed for musicians, DJs and small spaces that require deep, powerful, and controlled bass. With 1000 W amplification, MUSIC / LIVE modes, and a robust yet easy-to-handle design, the EVIVA 18SP perfectly complements EVIVA systems, delivering impressive low frequencies and quick installation, even by a single person.

Features:

• Portable active subwoofer with 18” speaker
• Selectably operating modes MUSIC / LIVE
• Class D amplification of 1000 W and maximum SPL of 132 dB
• Bass-reflex port with reduced turbulence for clear and powerful low frequencies
• Simple control with a single potentiometer and dual-colour signal and peak indicator
• Selectable crossover: 100 Hz (EVIVA 12P / 15P) or 150 Hz
• Switchable polarity NORMAL / REVERSE
• Professional connectivity: 2 combo XLR/TRS line inputs + 2 XLR pass-through outputs
• Recessed control panel for protection during transport
• M20 mount for satellite speaker stand
• Metal side handles, anti-slip feet
• Robust 15 mm plywood housing, textured painted
• Universal operation 100–240 V~, auto-switching
• Compatible with EV accessories: M20 stands and tripods (not included)

Specifications:

• Active system, subwoofer with Class D amplification
• Frequency response (-3 dB): 45 Hz – 150 Hz
• Frequency response (-10 dB): 38 Hz – 200 Hz
• Maximum SPL: 132 dB
• Amplification: 1000 W
• Power supply: 100–240 V~, 50–60 Hz, 0.6–0.4 A
• Speaker:
  • Woofer: 1 x 18”, model WECA2188H (ferrite magnet)
• Crossover frequency:
  • 100 Hz (default)
  • 150 Hz (optional)
• Connectors:
  • 2 × combo XLR/TRS line in
  • 2 × XLR pass-through out
• Housing: 15 mm plywood, internally reinforced
• Grille: painted steel in electrostatic field
• Colour: black
• Dimensions (H × W × D): 597 × 520 × 620 mm
• Weight: 30.7 kg
