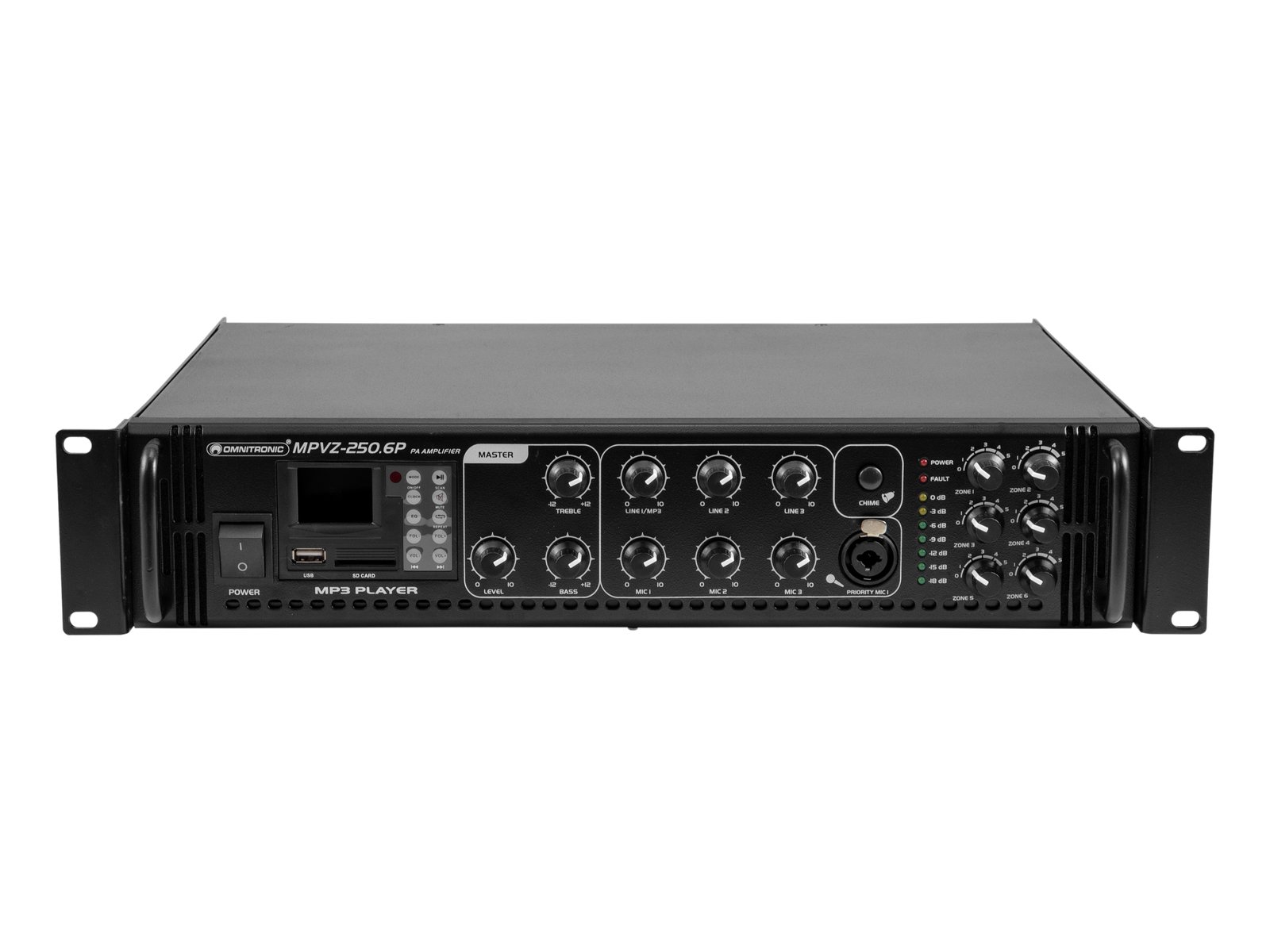

Omnitronic MPVZ-250.6P

Omnitronic MPVZ-250.6P - an amplified mixer with 6 zones, mono, featuring an MP3 player and IR remote control. It offers control for PA speakers thanks to the 6-zone technology, through the 6 outputs, each with level control in 5 steps. Enjoy a master PA output offering 70 V and 100 V, an output for low-impedance speakers (4-16 ohms), an MP3 player with IR remote control, and a blue backlit LCD screen. It provides an SD card slot and USB port. It has folder navigation functions and repeat functions (1, all).

It features 2 microphone inputs with unbalanced 6.3 mm jack connectors on the back of the mixer, and one microphone input on the front of the mixer with a combo XLR/6.3 mm unbalanced jack connector with adjustable priority circuit. All microphone inputs have separate level control. In addition to the microphone inputs, it has 3 line inputs with stereo RCA connectors with separate level control, and a line output with a stereo RCA connector. For the output signal, it offers control over highs and lows, a master control for the output signal, and an LED level indicator.

Other features include fan cooling, protection circuits with LED indicators for overcurrent and short-circuit. Sturdy construction with rack installation capability.

Technical specifications:

• Power supply: 230 V AC, 50 Hz ~
• Power consumption: 500 W
• Output power: 250 W RMS
• Output type: 70 V, 100 V or 4-16 ohms
• Output current: 5 A (70 V), 3.5 A (100 V)
• Microphone inputs: 5 mV, 600 ohms
• Line inputs: 300 mV, 10 kohms
• Speaker connectors: screw connectors, terminal block
• Frequency range: 80 Hz - 16 kHz
• Distortion: 0.5 % (1 kHz)
• Signal-to-noise ratio: 85 dB (line), 75 dB (microphone)
• Audio player playback format: MP3
• Multimedia storage options: USB devices and SD(HC) cards up to 32 GB
• File system: FAT32
• Number of files: max. 999
• Dimensions (L x W x H): 483 x 385 x 89 mm
• Weight: 10.55 kg
