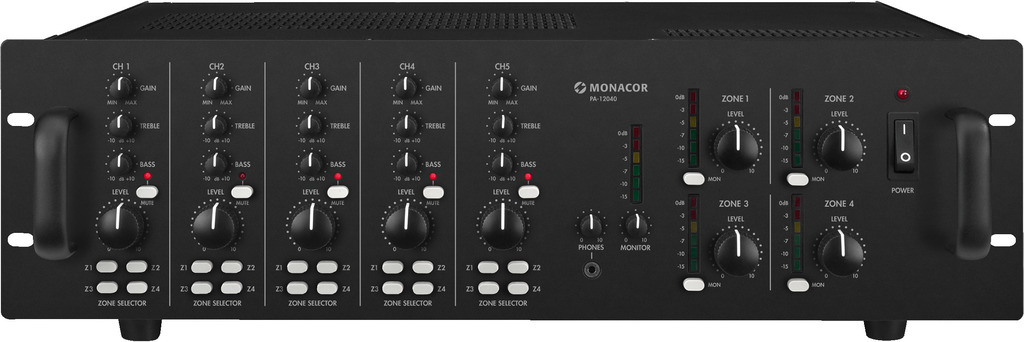

Monacor PA-12040

Monacor PA-12040, a zone amplifier mixer with 4 output zones, providing 120W RMS amplification per zone, operates on a 100V system and 4/8 Ohm:

• power: 4 x 120W RMS, 4 x 170W maximum
• integrated limiter
• inputs: 3 x microphone/line XLR/jack combo + 2 x stereo line RCA
• each input channel has Gain control, 2-band EQ, mute button, and routing buttons to output zones
• phantom power +48V for microphone inputs
• priority function for channels 1-3
• paging input, routable to all zones
• zone outputs and monitoring for other amplifiers and recorders
• connection for monitoring speakers
• headphone output
• frequency range: 50Hz - 17kHz
• THD: < 1%
• dimensions: 482 x 133 x 410 mm, 3RS
• weight: 20.5 kg
