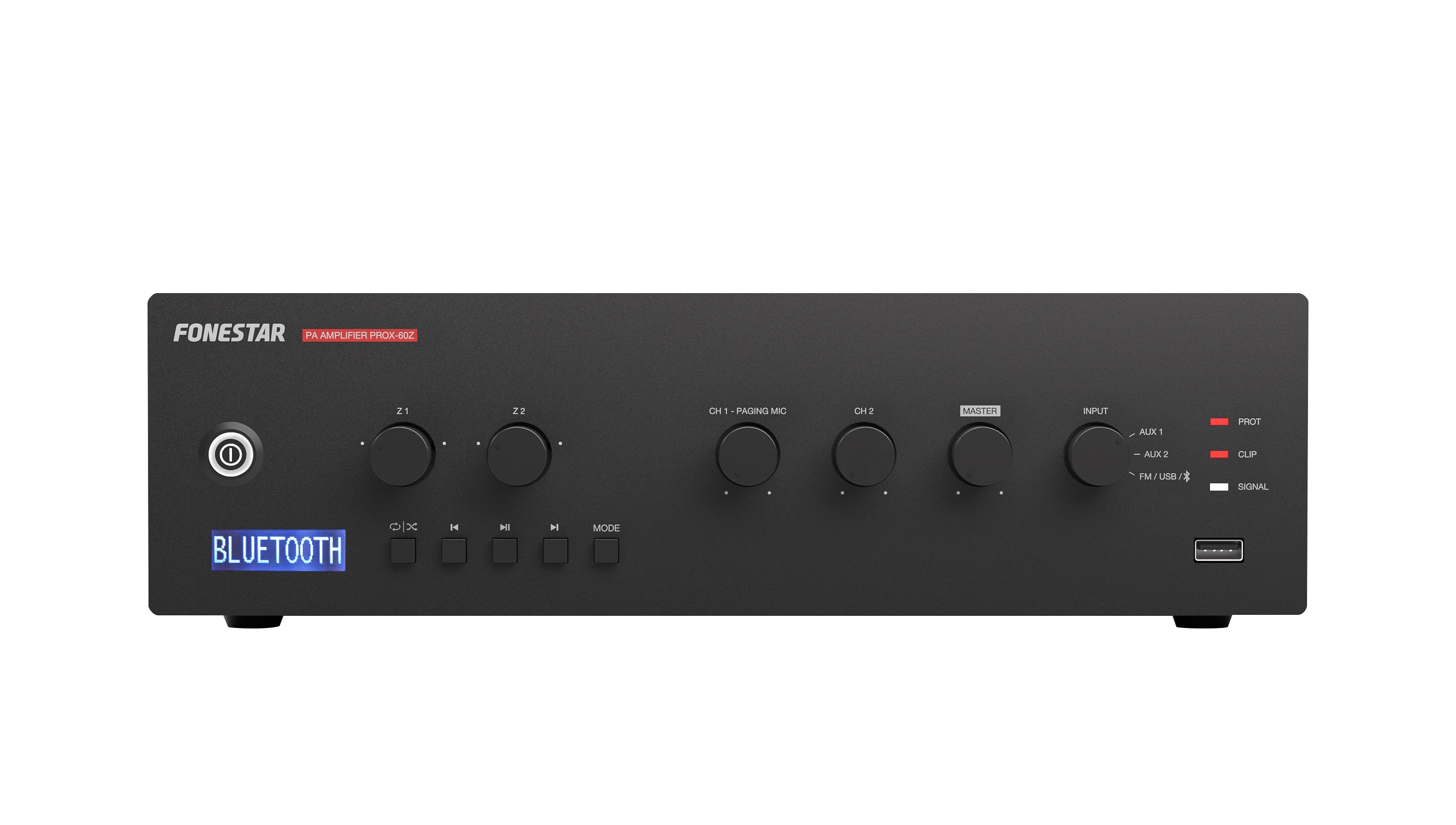

Fonestar PROX-60Z Bluetooth/USB/FM

Fonestar PROX-60Z Bluetooth/USB/FM – A sound amplifier ideal for public address systems and ambient music, equipped with Bluetooth, USB, and FM player. With a power of 60 W RMS, it offers a wide audio response, from 60 Hz to 20 kHz, with very low distortion, ensuring clarity and fidelity in sound. The device supports multiple types of inputs, including two balanced microphone/line channels with 48V Phantom power, auxiliary inputs, and a special emergency input with maximum priority.

The outputs allow connection of speakers on a 100 V line or with low impedance, with two separate zones and independent volume control for each zone, providing flexibility for sound management in multiple spaces. The integrated player supports MP3 and WAV files from USB, has an auto-play function on startup, and remembers the last setting used, either USB or FM radio, which features automatic scanning and quick presets.

FEATURES:

• Sound amplifier with Bluetooth®/USB/FM player and zone selector for speakers
• Ideal for sound reinforcement in spaces
• Reliable for long-term use
• Audio distribution for installations with 100 V speakers and low impedance output (4 Ω)
• Versatile player for ambient music, with Bluetooth, FM, and USB, with auto-play on startup
• Has 2 zone outputs with volume adjustment for different levels in each zone
• Suitable for commercial, educational spaces, monuments, exhibitions, bars, and restaurants

POWER:

• 60 W RMS

RESPONSE:

• 60-20,000 Hz (-10 dB)

DISTORTION:

• THD+N: < 1% @ 1 kHz

SIGNAL/NOISE RATIO:

• 77 dB

PROTECTION:

• Overcurrent, DC, and short circuit protection at output

INPUTS:

• Channel 1: balanced microphone/line with Phantom 48V, Combo connector (XLR + 6.3 mm) and euroblock
• Channel 2: balanced microphone/line with Phantom 48V, euroblock connector
• Microphone signal level: 6 mV RMS (-44 dBV) / 600 Ω
• Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
• 2 x AUX: 2 x RCA and euroblock connector, signal 300 mV RMS (-10 dBV) / 47,000 Ω
• 1 x emergency input, euroblock connector, line signal speaker 100 V
• 1 x Mute (emergency priority) via contact closure, euroblock connector

OUTPUTS:

• 1 x line, 2 x RCA connector, signal 1.25 mV RMS (+2 dBV)
• Speaker output 100 V or 4 Ω, or 2 x 100 V speaker zones with volume selector in 5 positions and OFF, screw terminal

IMPEDANCE:

• 4 Ω and 100 V line (166 Ω)

FUNCTIONS:

• Input priority (attenuation order):
  Emergency input 100 V
  · Mute via contact closure
  · Channel 1 with selectable shared level CH1-2 (VOX)
  · Channel 2 with selectable shared level CH1-2 (VOX)
  · Auxiliary inputs and player
• LED indicators for power, protection, signal peak, and output signal
• Cooling by induction, without fan

PLAYER:

• Bluetooth/USB/FM player for ambient music
• Supports MP3 and WAV files
• Maximum USB memory capacity 64 GB
• Auto-play on startup
• Remembers last selected mode
• Playback mode memory (random, repeat)

CONTROLS:

• Microphone volume
• Mic/line/phantom switch
• Master volume
• Auxiliary input or player selector
• Zone volume
• Tone: bass and treble (±10 dB at 100 Hz and 10 kHz)
• Microphone gain
• Priority activation level (VOX)

TEMPERATURE:

• Operating: 0º ~ 40ºC

MAXIMUM HUMIDITY:

• 95%

POWER SUPPLY:

• 230/115 V AC, 50-60 Hz, 200 W
• AC fuse 230 V 1.5 A / 115 V 3.15 A

DIMENSIONS:

• 320 x 94 x 281 mm depth

WEIGHT:

• 5 kg

ACCESSORIES:

• FM antenna
• Bluetooth antenna
• Power cable
