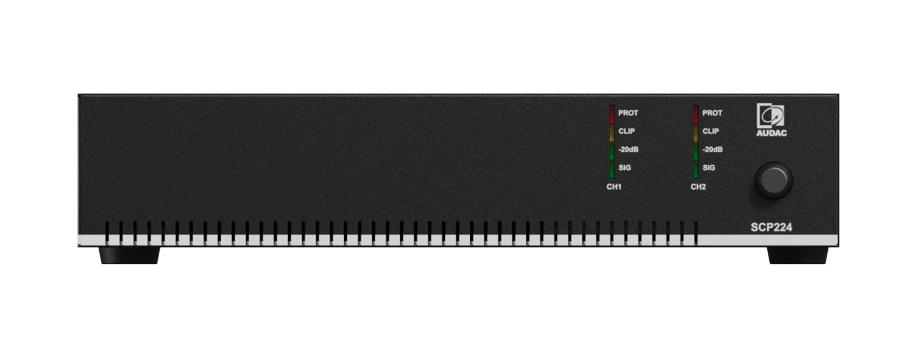

Audac SCP 224 - power amplifier with a compact design featuring two channels with an RMS power of 2 x 240 W @ 4 Ohm or 480 W @ 70/100 V & is ideal for commercial use. Compatible with remote wall input panels from the WP2xx series.
RMS/AES Power
at 4 Ω Stereo 2 x 240 W
at 8 Ω Stereo 2 x 120 W
at 70/100 V bridge 480 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
THD+N (at 1 kHz) <0.05%.
Signal / Noise > 95 dB
VU LED Bar Indicators (front)
Voltage / Impedance Outputs 70-100 V / 4 Ω
Connectors:
EURO TERMINAL with 4 pins (pitch - 5.08 mm)
EURO TERMINAL inputs with 3 pins (pitch - 3.81 mm)
