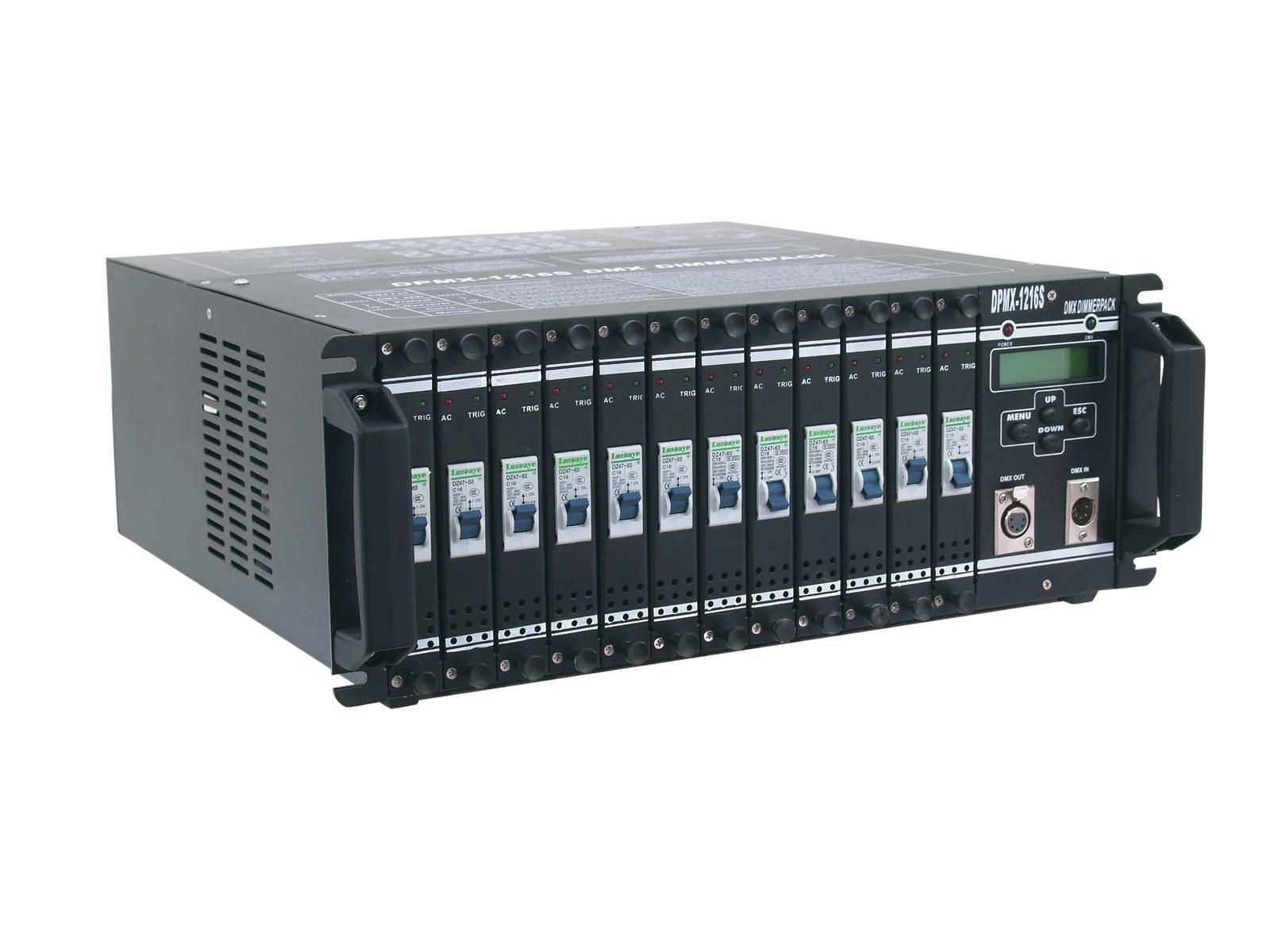

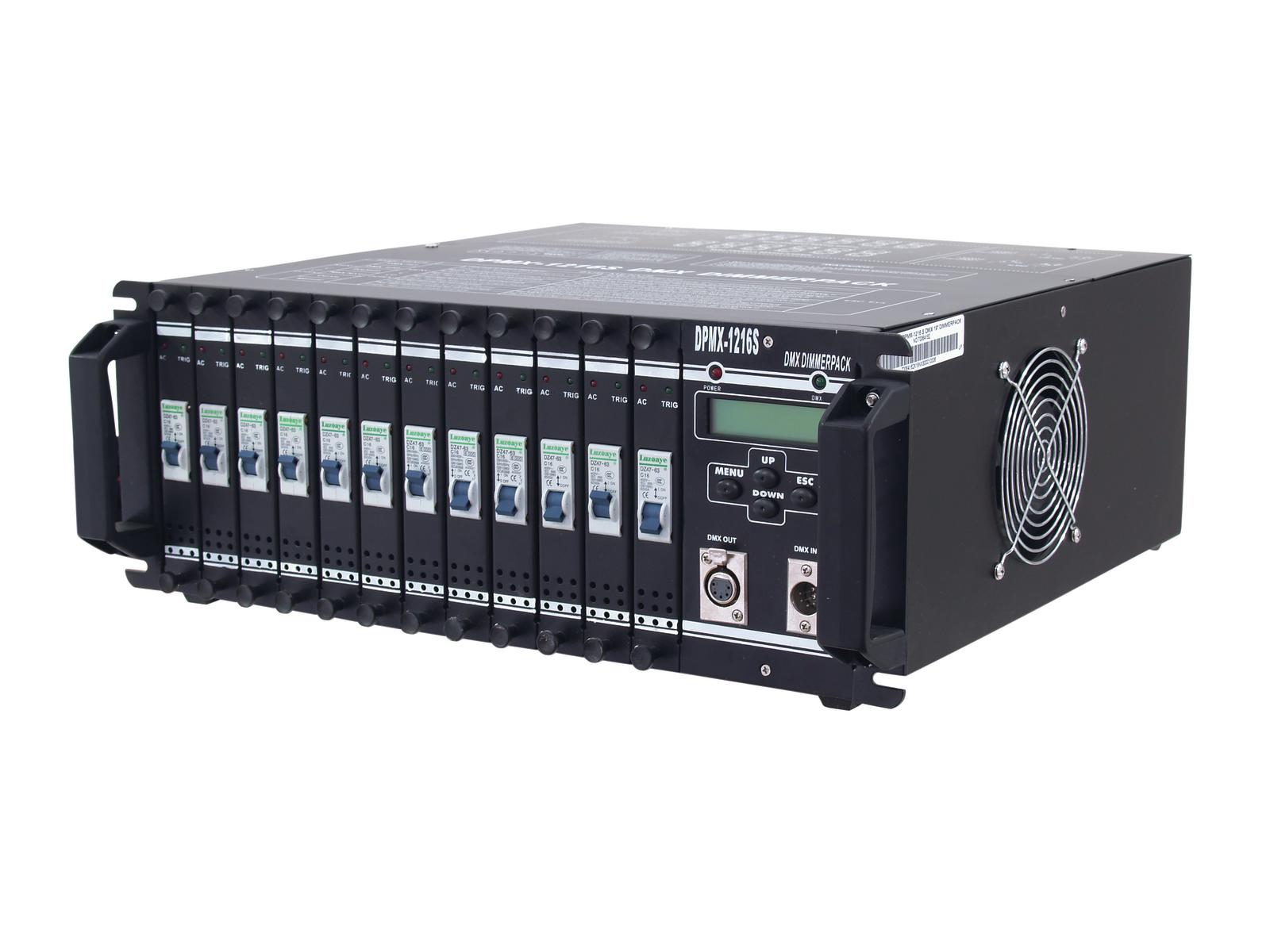

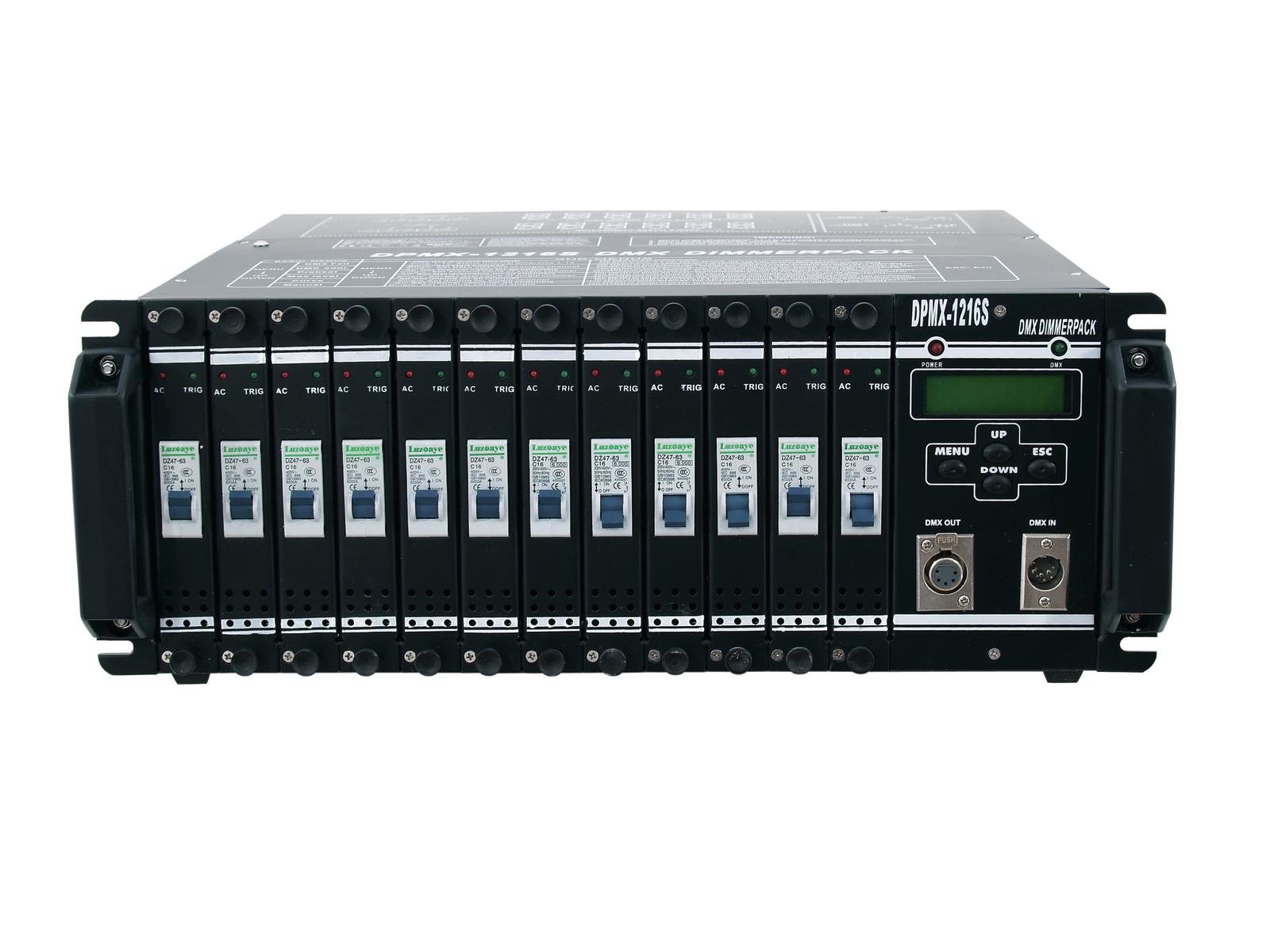

Eurolite DPMX-1216 Schuko

Eurolite DPX-1216 S, digital dimmer pack with 12 channels, controllable via DMX, Schuko outputs:

• 12 channels, 16A / channel
• modular architecture of individual modules and control module
• three-phase or single-phase power supply
• DMX512 or analog control
• ability to synchronize multiple units
• dimmer curves (linear, rectangular, switch) assignable to each channel
• DMX error detection function
• 12 integrated programs with adjustable speed
• manual mode for operation without external controller
• LCD display
• rack mountable, 4U
• maximum power output: 43470 W
• maximum current: 189A
• maximum output per channel: 3680 W
• maximum current per channel: 16A
• fuse: 12 x C 16 A, 230 V
• dimensions: 482 x 485 x 176 mm
• weight: 27 kg
