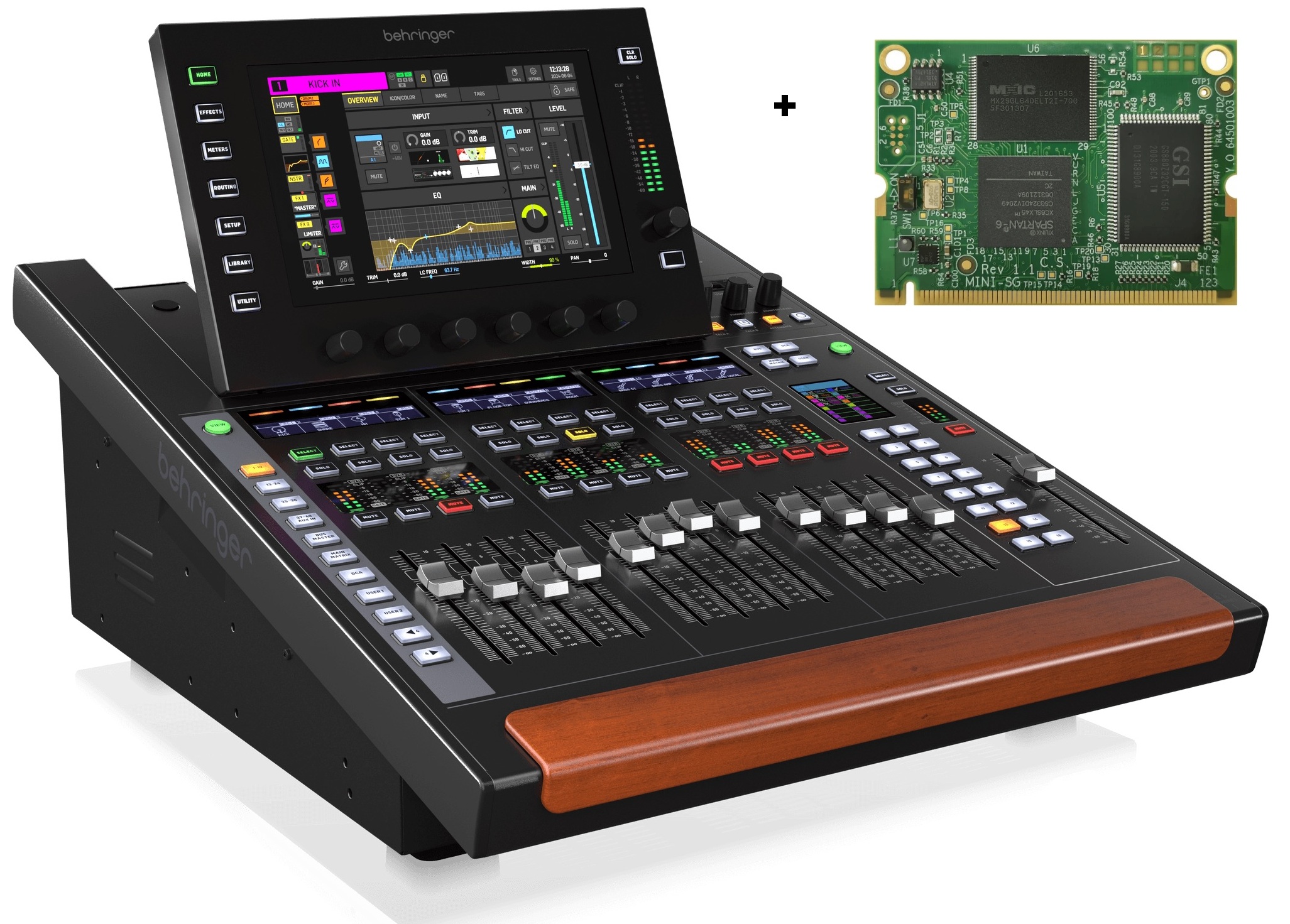

Behringer WING Compact + AOIP-WSG Card – Digital stereo mixer with 48 channels, compatible with Behringer X32 and Midas M32 ecosystems, offering intuitive control and professional audio performance in a compact, rack-mountable format. Ideal for mobile applications, studio use, or permanent installations, the WING Compact combines 28 stereo buses with 13 motorised faders, a 10.1” adjustable multi-touch screen, and advanced effects processing.
The workflow is optimised by "Sends on Fader", dual SD recording of up to 64 tracks, a 48-channel USB/MIDI interface, and extensive connectivity via Dante, Waves SoundGrid, and StageConnect.
- Digital stereo mixer with 48 channels
- 24 Midas PRO preamps and 8 analogue outputs for professional class sound
- 28 stereo buses: 16 Aux, 8 Matrix, 4 Main, all with inserts, parametric EQ, and full dynamic processing
- 16 real stereo effects processors, each channel with 3 dedicated slots (gate, EQ, dynamics)
- 40 stereo input channels with 5 plug-in slots per channel
- Full DAW control (Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One)
- Motorised faders: 12 + 1, 100 mm travel
- 13 touch-sensitive rotary controllers and multiple fully assignable buttons and controls
- "Sends on Fader" workflow with colour TFT display for 44 buses
- Main screen: 10.1" TFT LCD, resolution 1280 x 800 px, adjustable angle 15°–60°
- Channel displays: Monochrome LCD 320 x 48 px with RGB bar
- Bidirectional USB audio/MIDI interface, 48 channels
- Dual SD recorder/player, up to 64 tracks
- 3 AES50 ports for up to 144 channels I/O, low latency and reduced jitter
- Two Ethernet ports with built-in switch, compatible with Dante and Waves SoundGrid
- Expansion slot for 64-channel audio interfaces and network cards
- StageConnect connection via a single XLR for 32 bi-directional channels
- GPIO interface, MIDI In/Out (5 pins)
- Frequency response: 10 Hz – 20 kHz
- Total dynamic range XLR: 111 dB, AUX: 108 dB
- Crosstalk (1 kHz): 100 dB
- Recommended temperature: 5°C – 40°C
- Dimensions: 574 x 453 x 225 mm
- Weight: 15.92 kg
- 19” rack mountable (3 positions)
- *AOIP-WSG expansion card is installed internally
