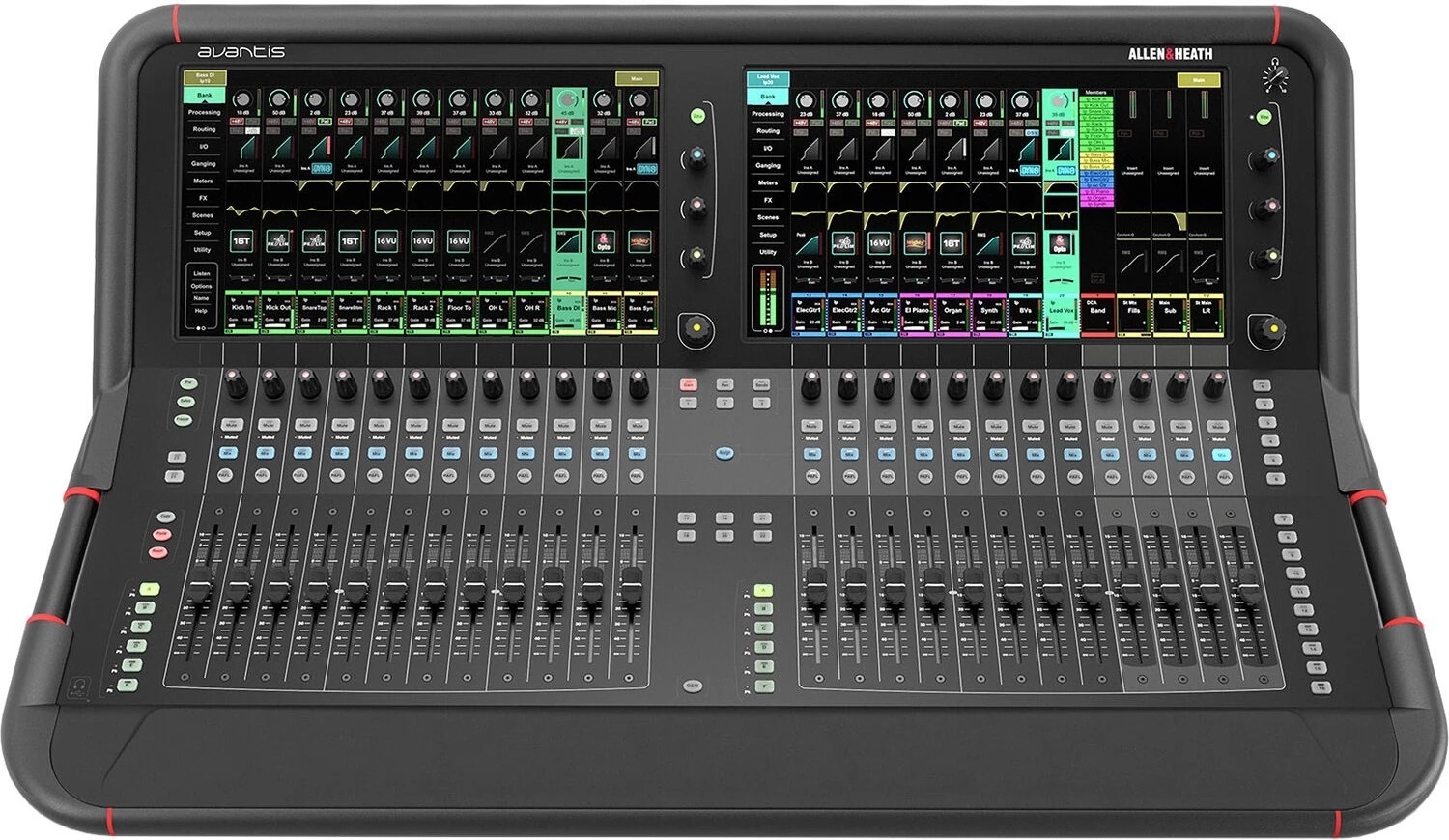

Allen&Heath Avantis Ultra

Allen & Heath Avantis - digital mixer with 96 input channels and 56 buses, based on XCVI FPGA processing at 96 kHz, with a latency of 0.7 ms. It features two 15.6 inch Full HD touchscreens, 24 physical faders, and both analog and digital connectivity. It includes processing for mixing, integrated effects, monitoring functions, and stereo recording/playback via USB.

The "Ultra" versions represent a complete package that combines the dPack software license with the RackUltra FX hardware module.

• Digital mixer with 96 channels
• Buses: 56, configurable
• Processing: XCVI FPGA, 96 kHz
• Latency: 0.7 ms
• Display: 2 × capacitive Full HD touchscreens, 15.6 inch, with gesture control
• Faders: 24 faders, 6 layers, 144 strips
• Analog inputs: 12 × XLR
• Digital inputs: 1 × AES stereo
• Analog outputs: 12 × XLR
• Digital outputs: 2 × AES stereo
• Connectivity: SLink for remote I/O extensions and the ME Personal Mixing system
• Expansion slots: 2 × I/O, each with 128 × 128 channels at 96 kHz
• Optional cards: Dante, MADI and gigaACE
• Effects: 8 RackUltra FX slots, 12 stereo FX returns
• DCA groups: 16
• AMM: automatic microphone mixer for up to 64 channels, in 1, 2 or 4 zones
• Control: 24 assignable SoftKeys, configurable rotary controls, and customisable layout
• Monitoring: multi-point peak detection metering
• Recording/playback: stereo via USB
• Sync: Word Clock BNC
• Construction: metal chassis
• Dimensions (H × W × D): 269 × 917 × 627 mm
• Weight: 26 kg
• Included: DPack software & RackUltra FX hardware
