Allen&Heath Avantis

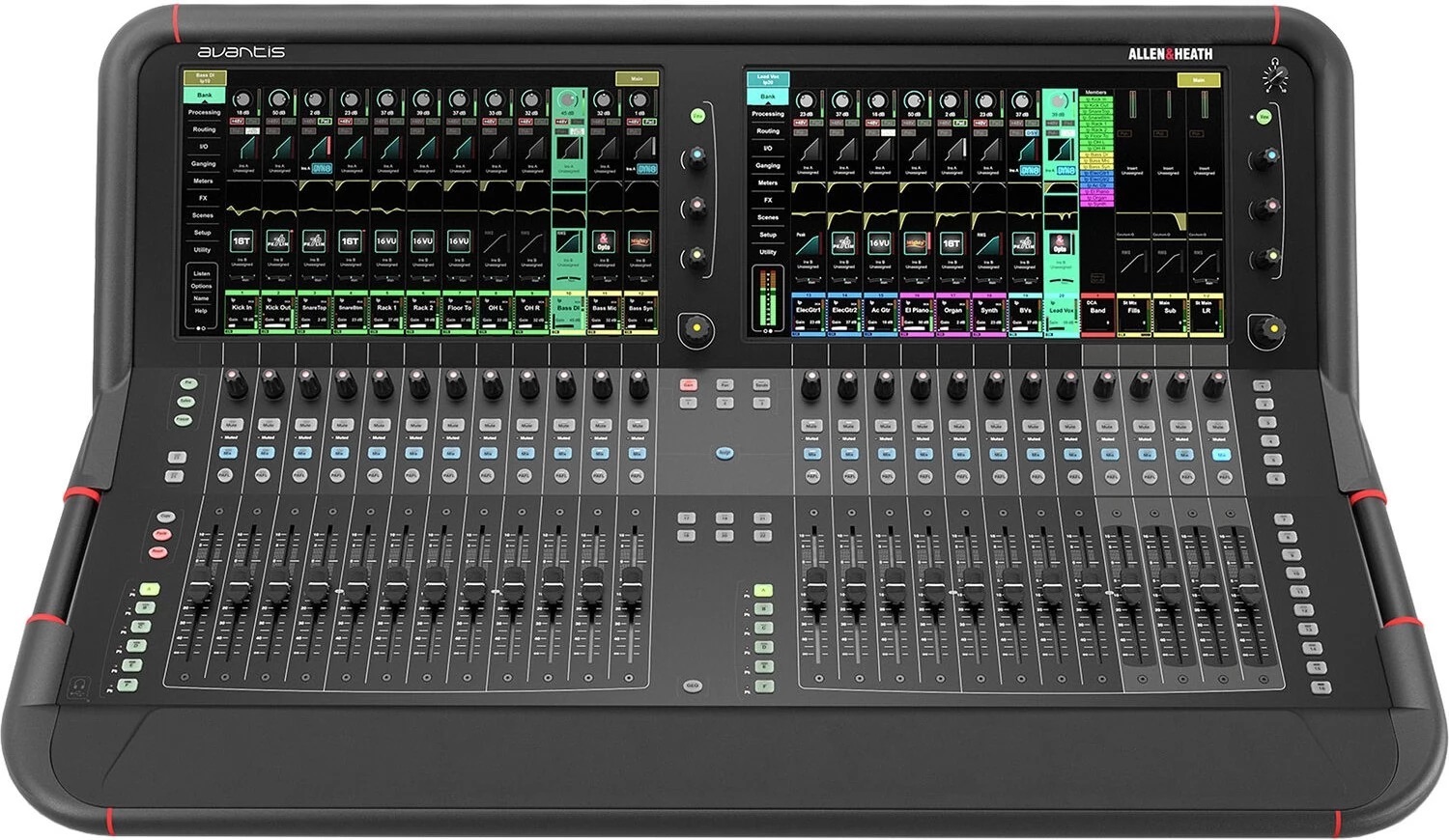

Allen & Heath Avantis - digital mixer for audio processing at 96 kHz, designed for live audio applications. Utilises an FPGA XCVI, with a latency of 0.7 ms, and offers 64 channels, 42 configurable buses and control via two Full HD touchscreen displays.

• Digital mixer

• Audio processing: 96 kHz, FPGA XCVI, latency of 0.7 ms

• Channels and buses: 64 channels, 42 configurable buses

• Interface: 2 capacitive touchscreen displays Full HD of 15.6"

• Physical control: 24 faders, 6 layers, 16 DCAs and 24 assignable SoftKeys

• Analog inputs: 12 × XLR

• Digital inputs: 1 × AES stereo

• Analog outputs: 12 × XLR

• Digital outputs: 2 × AES stereo

• I/O extension slots: 2 slots of 128 × 128 channels at 96 kHz, compatible with Dante, MADI, Waves and gigaACE

• Expansion port: SLink for remote I/O units and ME Personal Mixing

• Internal effects: 12 RackExtra FX stereo slots, with separate returns

• AMM: Automatic Mic Mixer for up to 64 channels, with 1, 2 or 4 zones

• Additional connectivity: USB for recording and stereo playback, Word Clock BNC

• Configuration: layouts and user-assignable controls

• Audio measurement: metering with peak detection at multiple points

• Construction: metal chassis

• Dimensions (L × W × H): 917 × 627 × 269 mm

• Weight: 26 kg
