Monacor DTM-104/4


Hi-Fi Tweeter

  • 4 Ω impedance for optimal performance.
  • frequency range up to 19,000 Hz for detailed sound.
  • recommended crossover frequency at 2,500 Hz.
  • 45 W RMS power handling, peak power of 100 W.
  • compact design with a total diameter of Ø 104 mm.
Monacor
3608
In stock and deliverable.
Central warehouse: 1
Add to cart
also deliverable via  Deliverable via parcel locker
187 points of loyalty
Shipping 13.00 €
Warranty 24 months
Returns 14 days

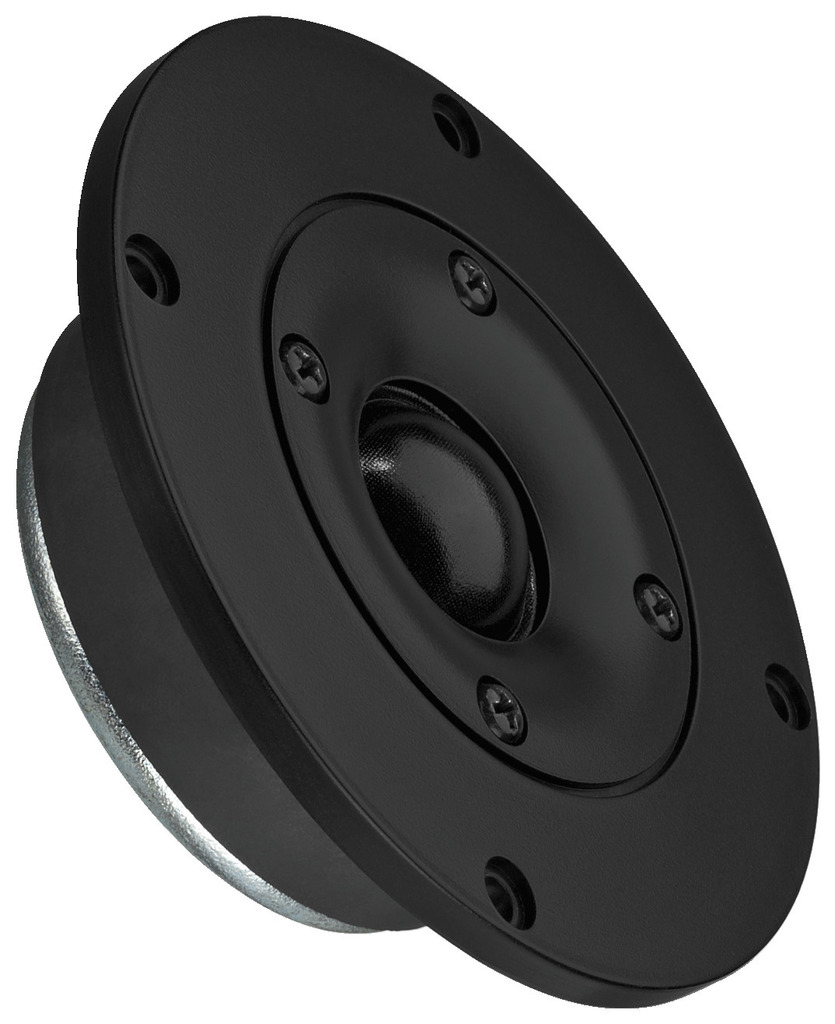

Monacor DTM-104/4 - Hi-Fi tweeter with a textile dome and Kapton coil, offers excellent sound dispersion, making it ideal for high-quality Hi-Fi acoustic enclosures.

Technical specifications:

  • Impedance (Z): 4 Ω
  • Frequency range: fx-19,000 Hz
  • Resonance frequency: fs-1,200 Hz
  • Recommended crossover frequency (fmax.)(12 dB/oct.): 2,500 Hz
  • Power (PRMS): 45 W
  • Peak power (PMAX): 100 W
  • Sensitivity: 92 dB/W/m
  • Coil diameter: 25 mm
  • Magnet diameter: 70 mm
  • Mounting hole diameter: Ø 80 mm
  • Mounting depth: 32 mm
  • Total diameter: Ø 104 mm
  • Weight: 520 g

Product code: 0105320

Unit of sale: piece

Specifications:
Diameter (inch): 4.1 "
Power / impedance: 45 W / 4 Ohm
