Monacor SPH-300KE

Low Frequency Speaker

ideal for high-quality Hi-Fi acoustic enclosures.
excellent performance in subwoofer and mid-frequency applications.
long-throw Kevlar diaphragm for enhanced sound quality.
power rating of 120W / 8 ohms with a peak power of 200W.
durable cast aluminium housing.

253⁷⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1315 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Monacor SPH-300KE Add to cart: 253⁷⁷ €

Monacor SPH-300KE - low-frequency speaker, ideal for high-quality Hi-Fi acoustic enclosures, with excellent capabilities in subwoofer applications or mid frequencies, thanks to the long-throw Kevlar diaphragm. It has a power rating of 120W / 8 ohms, and the housing is made of cast aluminium.

Technical specifications:

Impedance (Z): 8 Ω
Frequency range: f3-2,200 Hz
Resonance frequency: (fs) 22 Hz
Power (PRMS): 120 W RMS
Peak power (PMAX): 200 W MAX
Sensitivity: 90 dB
Total Q Factor (Qts): 0.33
Equivalent volume of the acoustic enclosure (Vas): 250 l
DC resistance (Re): 6.2 Ω
Inductance of the coil (Le): 1.5 mH
Diameter of the coil: 65.5 mm
Voice coil former: glass fibre
Linear excursion (XMAX): ±6.5 mm
Effective cone area (Sd): 496 cm2
Magnet weight: 1.2 kg + 79 g
Magnet diameter: Ø 145 mm

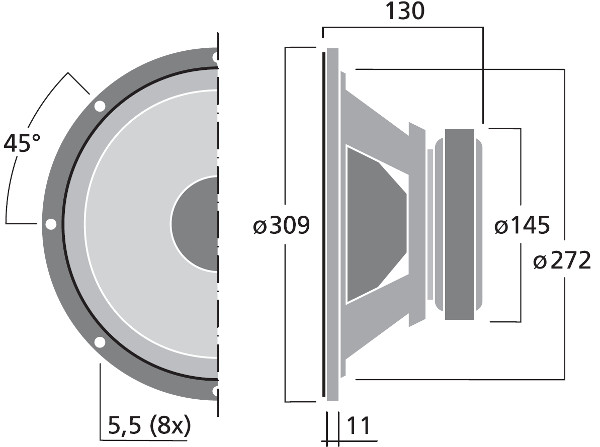

Dimensions: Ø 309 mm x 130 mm
Weight: 5.4 kg
