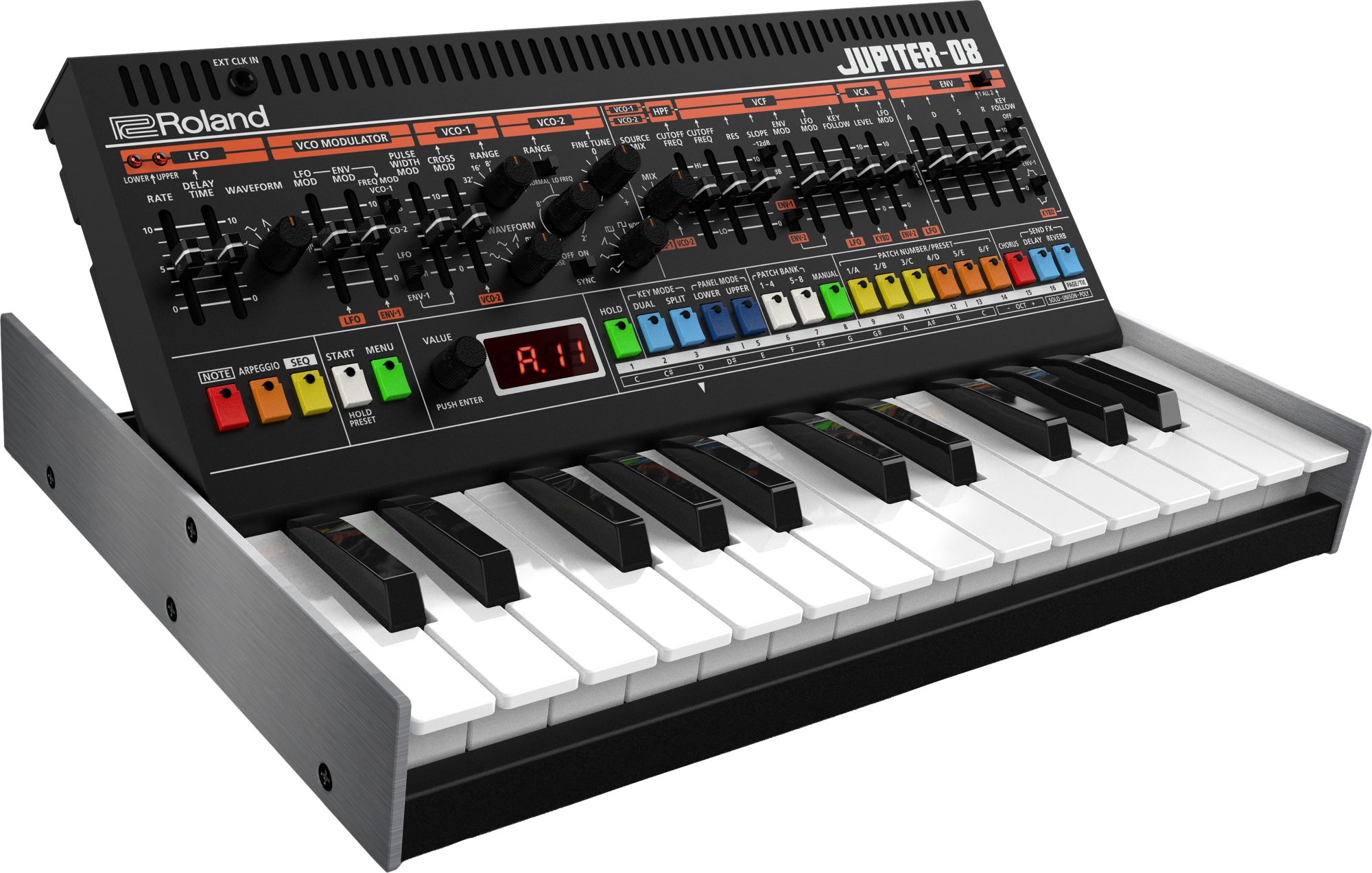

Roland JUPITER-08 - compact digital synthesiser with 32 voices of polyphony, equipped with two VCO sections, filters, modulation, and integrated effects. Includes a polyphonic sequencer in two parts, arpeggiator, and Dual and Split functions for performance. Can be powered via USB or with AA batteries.
- Compact digital synthesiser
- Maximum polyphony: 32 voices
- User memory: 240 patches and 96 patterns
- Oscillators: 2 VCO sections
- Synthesis sections: LFO, VCO Modulator, HPF, VCF, VCA, and Envelope
- Effects: Chorus (3 types), Delay (4 types), Overdrive, Fuzz, Drive, Bit Crusher, LOFI Comp, Phaser (2 types), Filter and Pitch Shifter (2 types)
- Sequencer: 2 parts, 64 steps, up to 8 polyphonic notes per part
- Arpeggiator: Integrated
- Performance modes: Dual, Split, Lower and Upper
- Display: 7-segment LED with 4 characters
- Connections:
- Audio connectivity: Mini jack stereo output and headphone output
- Audio inputs: Stereo MIX IN and mono EXT CLOCK IN
- MIDI connectivity: MIDI IN and OUT
- USB: USB Type-C, with audio and MIDI support
- Power supply: USB bus power or 4 AA Ni-MH / alkaline batteries
- Consumption: 500 mA via USB
- Battery life with Ni-MH batteries: Approximately 6 hours, under conditions specified by the manufacturer
- Dimensions (L × W × H): 308 × 209 × 54 mm
- Weight: 1.6 kg, with K-25m and batteries
- Included accessories: Quick Start Guide, safety documentation, 4 AA alkaline batteries, and K-25m keyboard
- Optional accessory: Dock Boutique DK-01 (sold separately)
