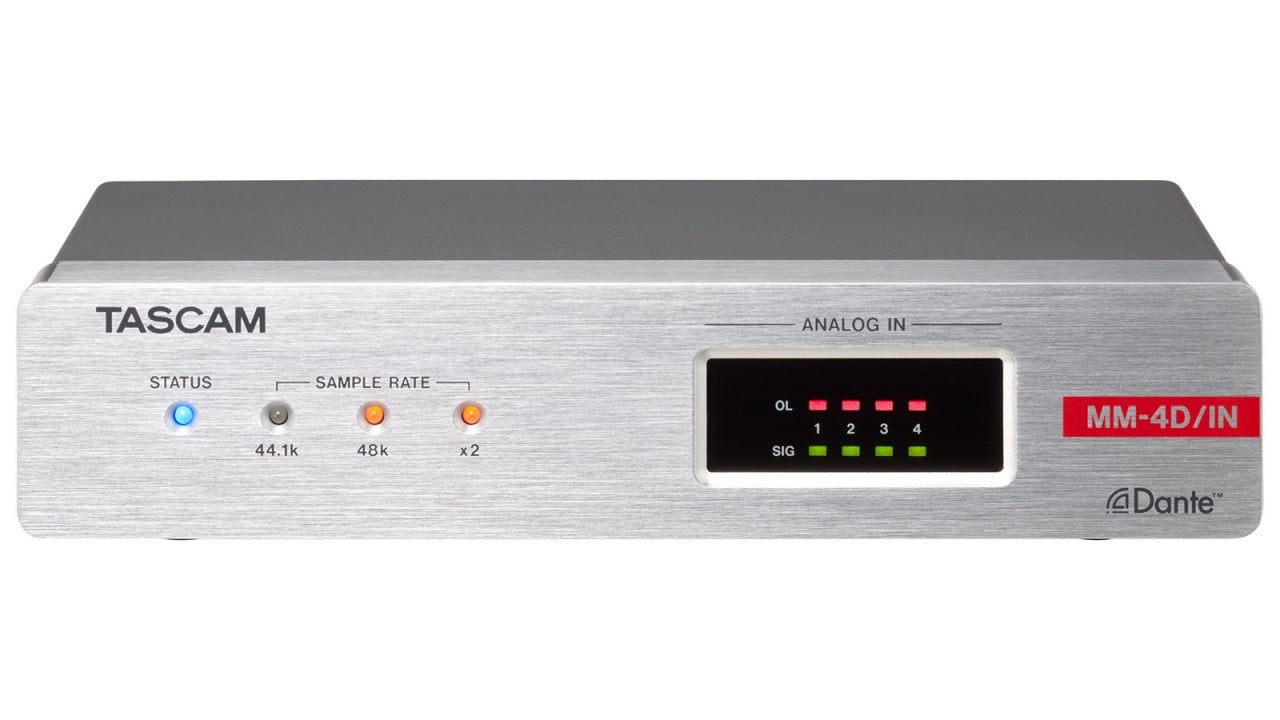

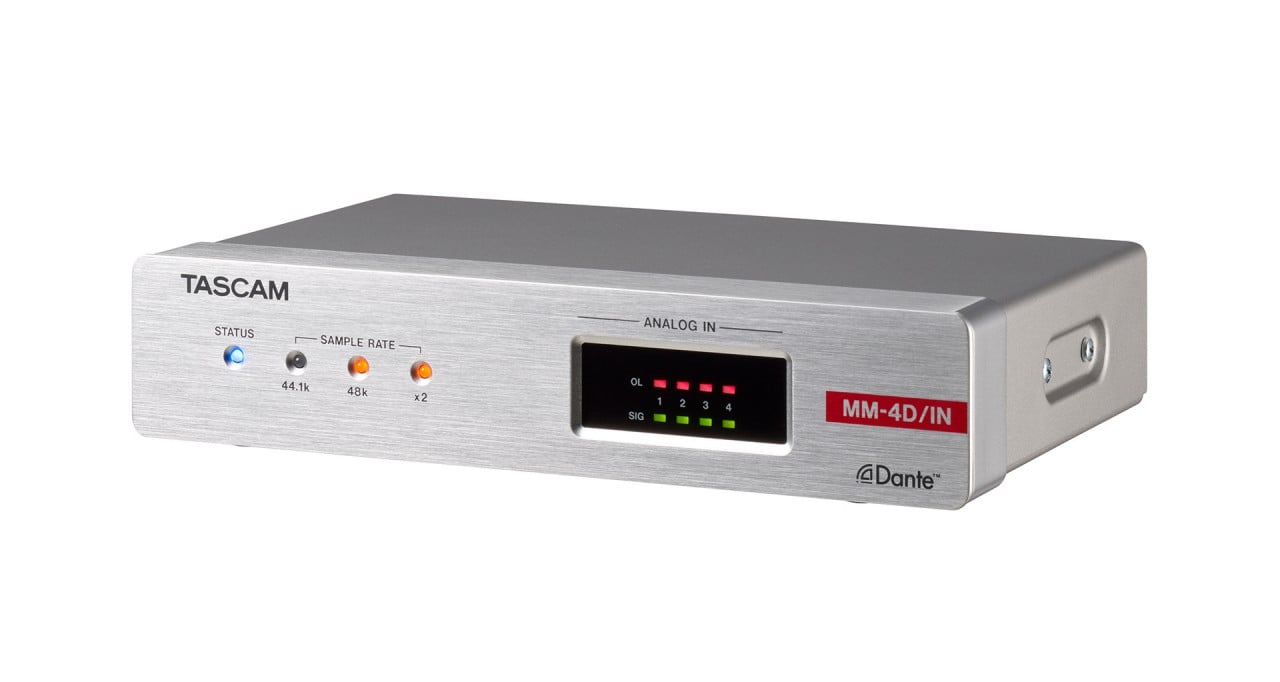

Tascam MM-4D/IN-X

MM-4D/IN-X este un convertor compact cu 4 canale si DSP ce dispune de conectori XLR 1/2 19", 1U. Acesta converteste semnalele de intrare de microfon/line in semnale Dante.

Specificatii tehnice:

• Formate: 44.1/48/88.2/96kHz,16/24-bit
• Numar de canale: 4

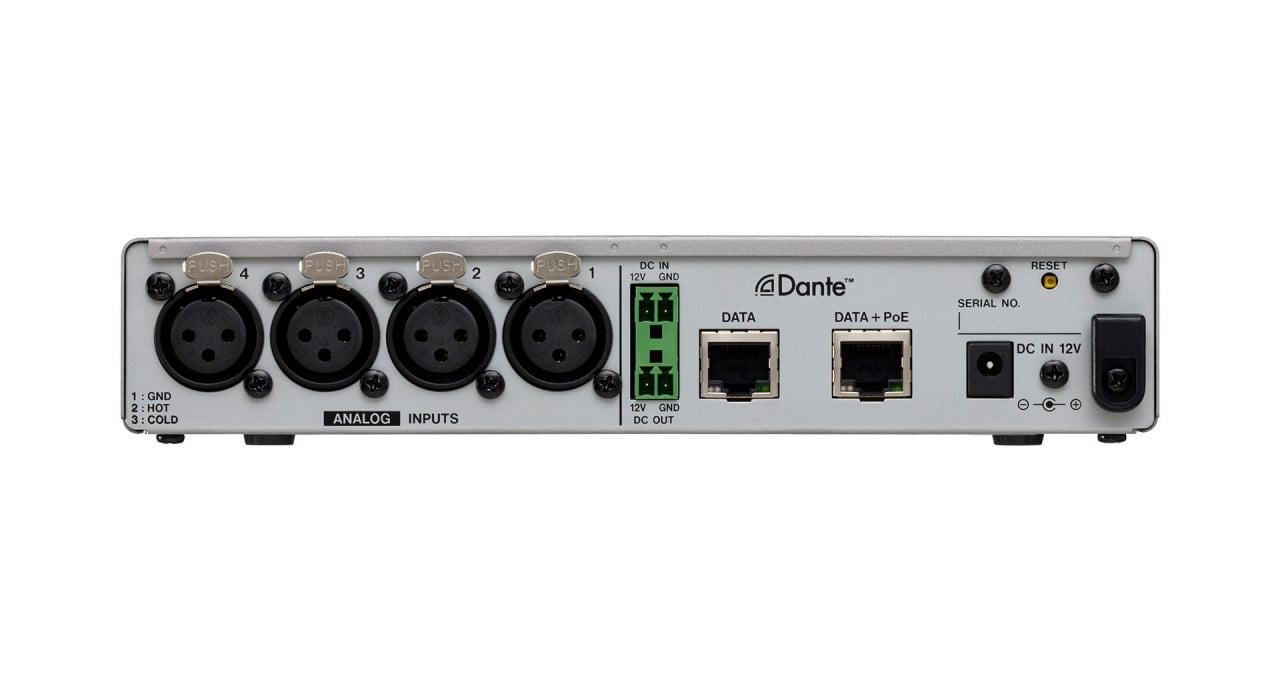

Conexiuni DATA/DATA+PoE

• Conexiune: RJ-45
• Protocol de transmitere: Dante
• Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
• Kabely: 5e sau STP

• Alimentare: PoE class 0
• Consum de putere: 7.5W
• Dimensiuni: 214 x 44.45 x 136.1 mm
• Greutate: 885 g
• Interval de temperatura de operare: 0°C-40°C

MIC IN → DANTE OUT
Mic amp EIN: -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Raspuns in frecventa:

• +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz, JEITA)
• +/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz, JEITA)

• Distorsiune (THD+N): 0.003 %(-1 dBFS input, 44.1/48/88.2/96kHz, JEITA)
• Raport S/N:108 dB (44.1/48/88.2/96kHz, JEITA)
• Crosstalk: 100 dB (44.1/48/88.2/96kHz, JEITA)
• Interval dinamic: 108 dB (44.1/48/88.2/96kHz, JEITA)
