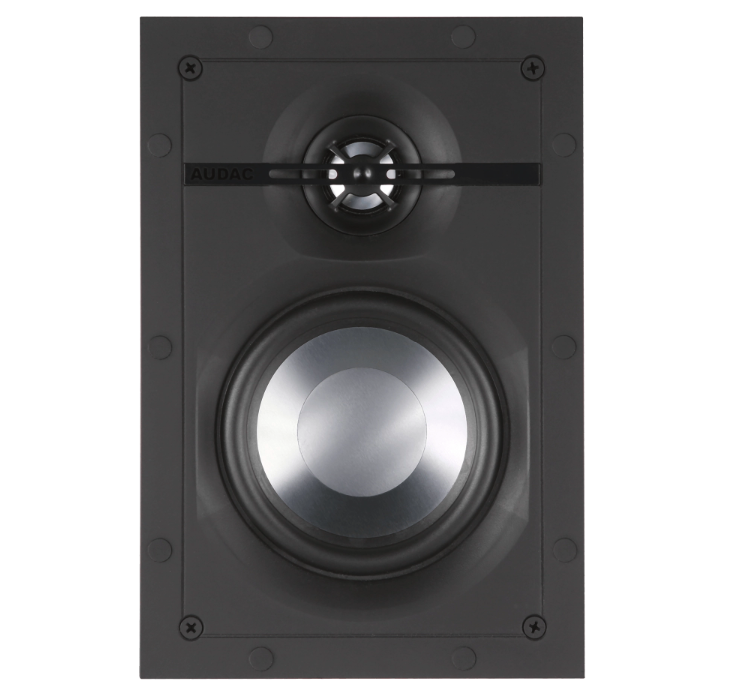

Audac MERO 6 - 2-way passive speaker, designed for in-wall installation, equipped with a 6” woofer + 1” tweeter, featuring GoldCon mounting, a white grille with a thickness of 1 mm and an RMS power of 60 W at 8 Ohms.
2-way architecture / Passive system
Peak power 240 W
Handling power 120 W
RMS/AES power 60 W
Impedance 8 Ω
Sensitivity (1W/1m) 88 dB
Sound pressure SPL (max. W/1m) 106 dB
Frequency response (± 3 dB) 55 Hz - 20 kHz
Frequency range (-10 dB) 44 Hz - 20 kHz
Crossover frequency 3 kHz
Dispersion
Horizontal 160°.
Vertical 140
Gold-Con™ spring clip connectors
Drivers
High 1 x 1” with a rotation angle of 7.5°
Low 1 x 6”
Dimensions 196.5 x 276.5 x 82 mm
Weight 1.6 kg
Construction ABS
Front finish White grille with thin edges
Cutout size required for installation 174 x 254 mm
