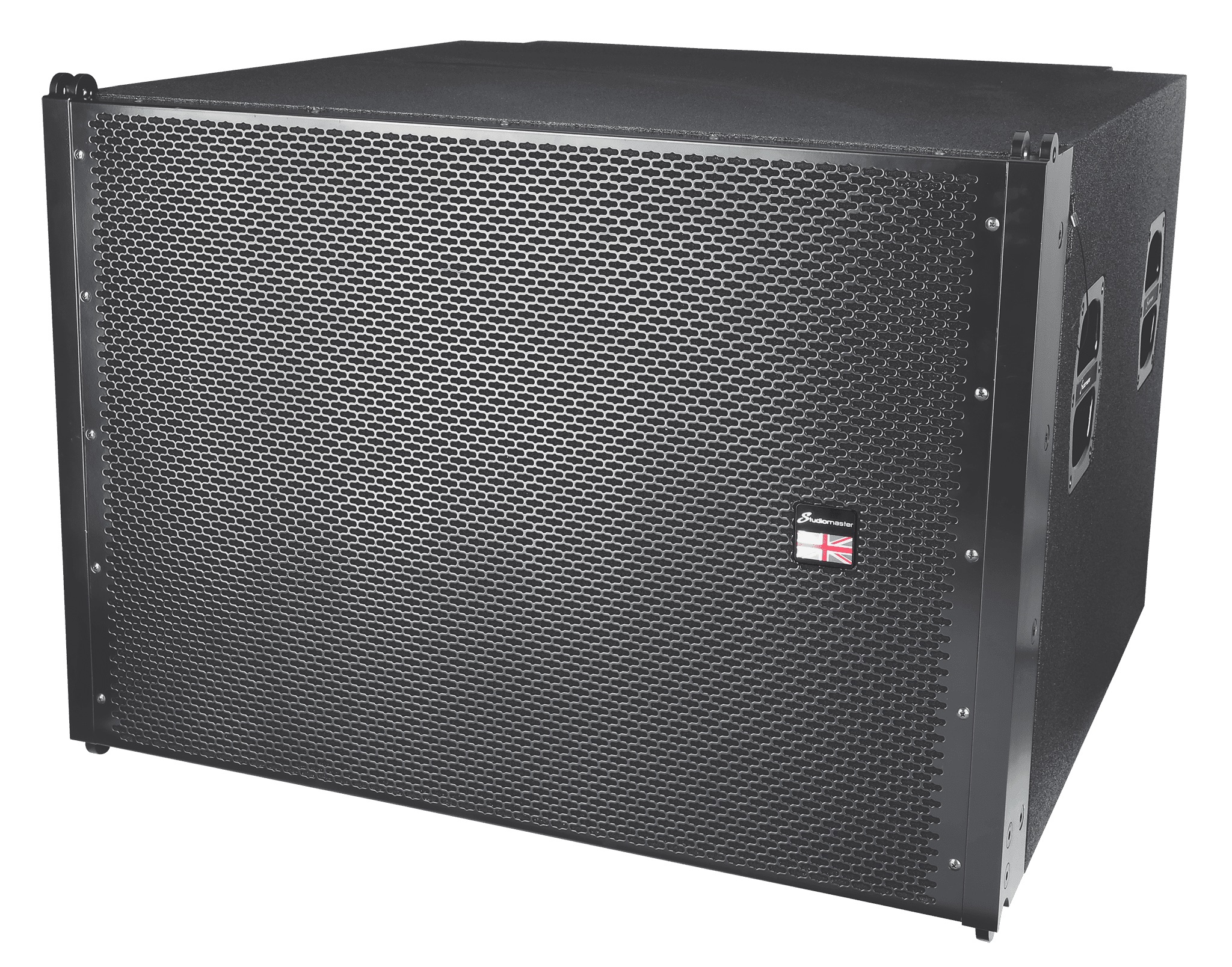

Studiomaster V10S Passive Array

Passive line array subwoofer

passive line-array subwoofer with 2 x 15" speakers.
delivers 1400W RMS with a maximum SPL of 139 dB.
frequency response from 5Hz to 500Hz, ideal for live events.
constructed from 18mm birch plywood for durability.
weighs 79kg and has dimensions of 810 x 560 x 820mm.

810⁷¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4198 points of loyalty

Shipping free

Warranty 36 months

Returns 14 days

request details

Studiomaster V10S Passive Array Add to cart: 810⁷¹ €

Studiomaster V10S Passive Array - Passive line-array subwoofer, featuring 2 x 15" speakers, part of the V10 array system. It delivers an output power of 1400W RMS, a frequency response between 5 – 5000 Hz, and a maximum SPL of 101 dB, making it ideal for live events, festivals, and large venues.

Passive Line-Array Subwoofer
Part of the V10 line-array system
Speakers: 2 x 15” / with 100mm voice coil
Max SPL: 139 dB
Power:
- peak: 5600W
- program: 2800W
- RMS: 1400W
Frequency response: 5Hz – 500Hz (-10dB) / 40Hz – 400Hz (+/-3dB)
Sensitivity 1w /1m: 101dB
Impedance: 4 ohms
Crossover frequency: 200Hz
Cabinet material: 18mm birch plywood
Dimensions (l x w x h): 810 x 560 x 820mm
Weight: 79kg
