Cameo DVC CUE

Cameo DVC CUE - You can conveniently control DMX-compatible lighting devices from your PC and Mac using the Cameo DVC CUE interface and the associated Cameo Daslight software. In live and standalone mode, the plug-and-play interface offers you two DMX512 sets, which can be expanded to four sets, thus providing 2048 DMX channels.

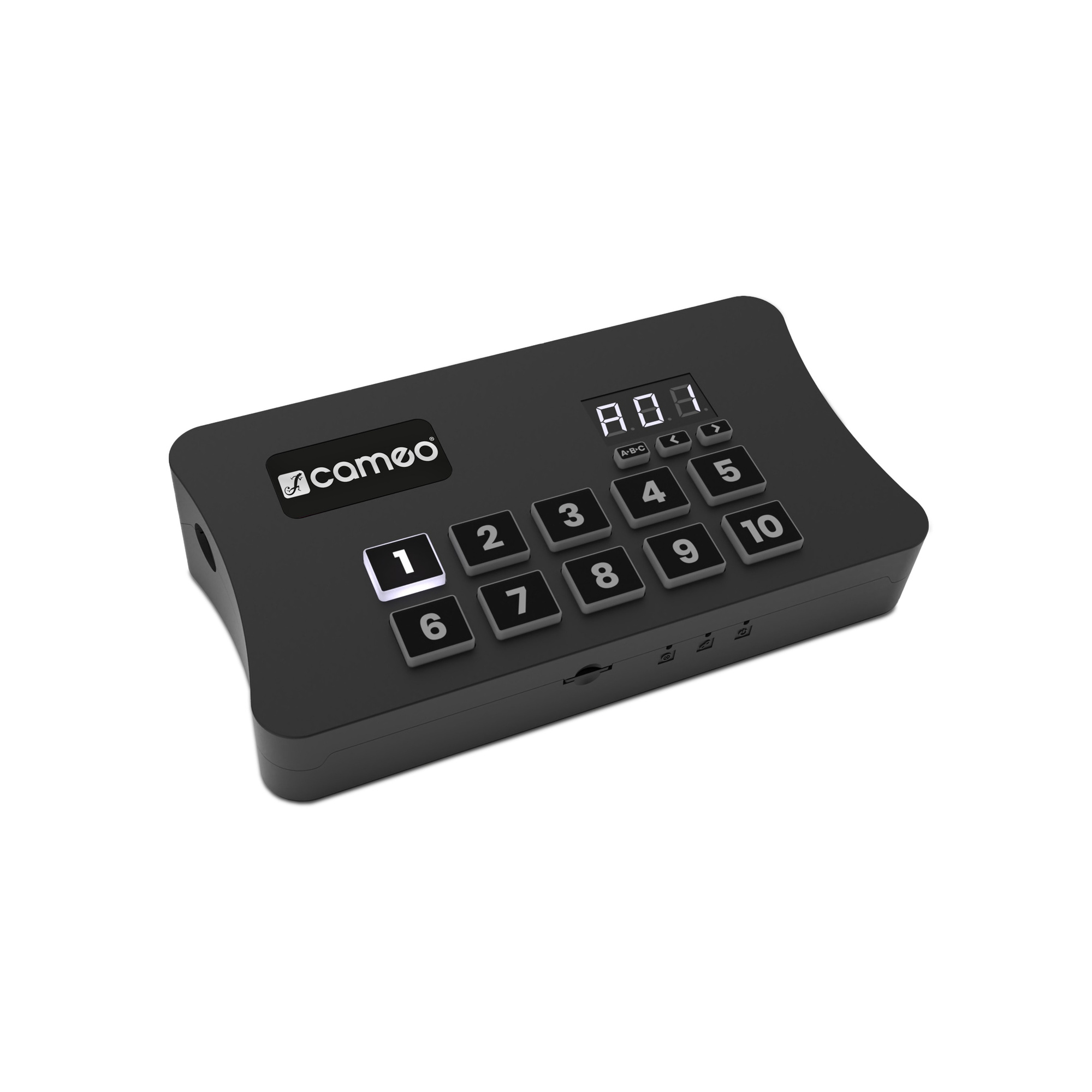

The interface features a USB-C port for power and connection to a PC, four 3-pin DMX outputs, and an Ethernet port for external control. To be used as a standalone unit without an external unit, you can save preprogrammed scenes on a microSD card and access them directly from the interface via the ten illuminated buttons. The ABC button navigates through five zones, while the buttons with the “arrow” symbol navigate through 99 scenes. Standalone operation requires a separately purchased 5 V USB power source.

• Live channels: 1024
• Standalone channels: 1024
• Software Mode: full Cameo D4 / full Daslight D4
• Operating systems: Android, iOS, Mac OS, Windows
• Inputs: Ethernet, USB-C
• Outputs: Ethernet
• Memory: microSD, SDHC (max 32 GB)
• Operating voltage: 5 - 5.5 V DC 0.6 A
• Protection class IP: IP20
• Width: 160 mm
• Height: 90 mm
• Depth: 45 mm
• Weight: 0.3 kg
