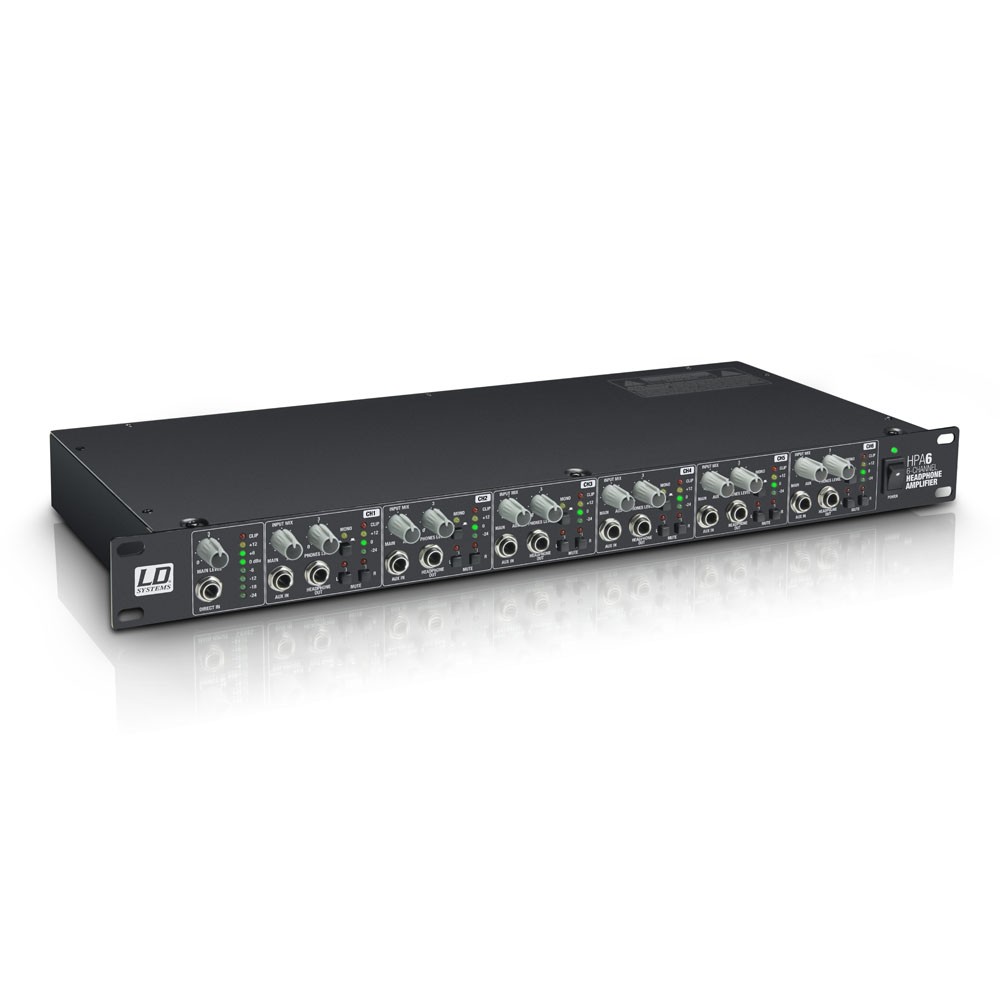

LD Systems HPA-6 - Headphone amplifier with 6 independent channels and various useful features for a wide range of professional audio monitoring applications.

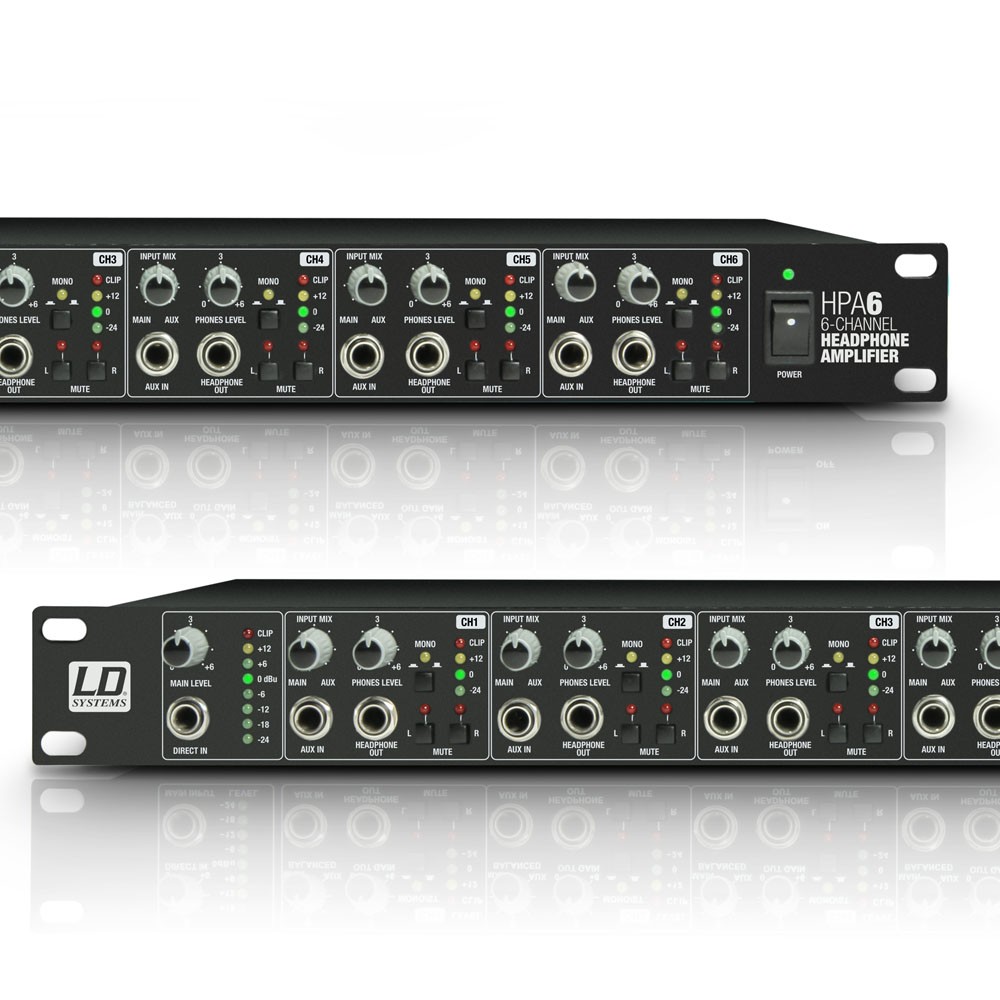

Each channel has a 6.3 mm TRS jack output connector for headphones on the front of the unit with volume control, mono/stereo selector, left/right mute, and an auxiliary input with a 6.3 mm TRS jack connector with Main/Aux balance control, allowing for mixing multiple signal sources. It is equipped with 4-segment LED meters for monitoring level visualisation, and two 6.3 mm TRS jack outputs on the back, allowing for the connection of 18 headphones.
The Main section contains a Master volume control potentiometer, with an 8-segment LED meter, and an input with a 6.3 mm TRS jack to add another signal source to the overall mix.

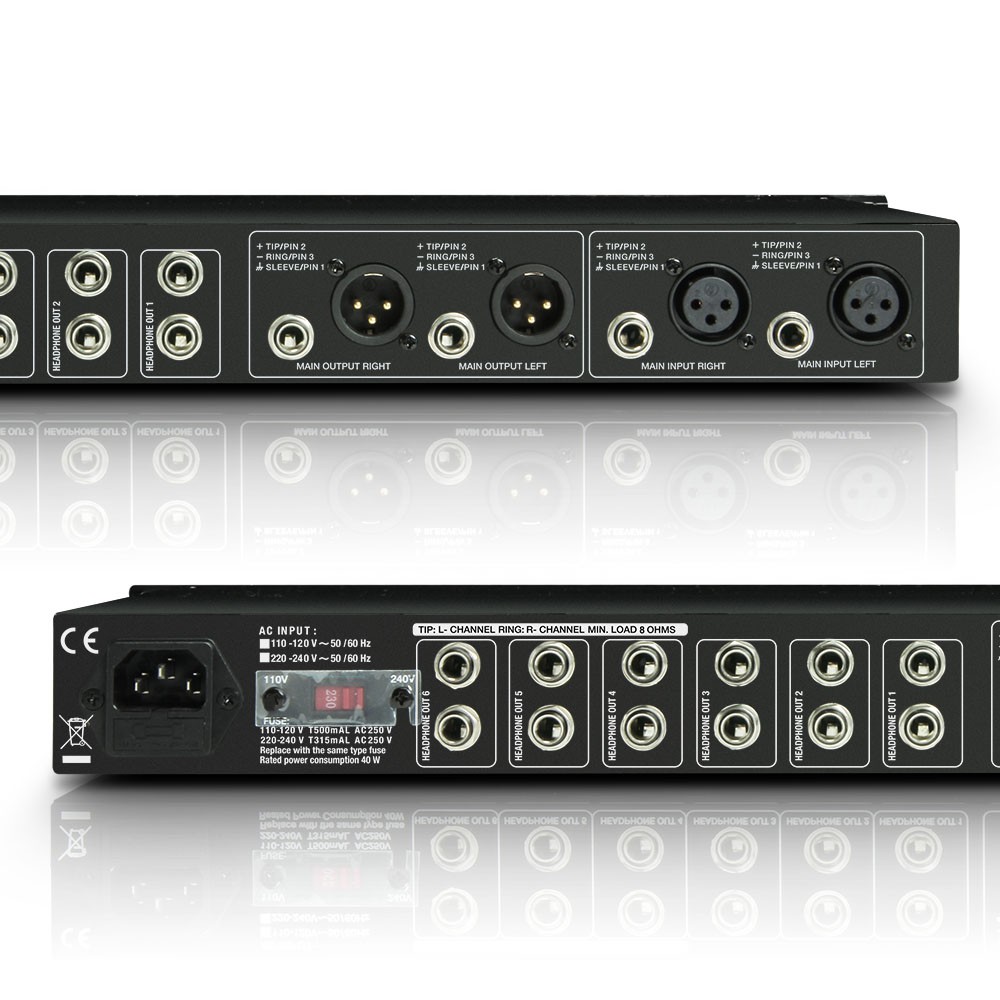

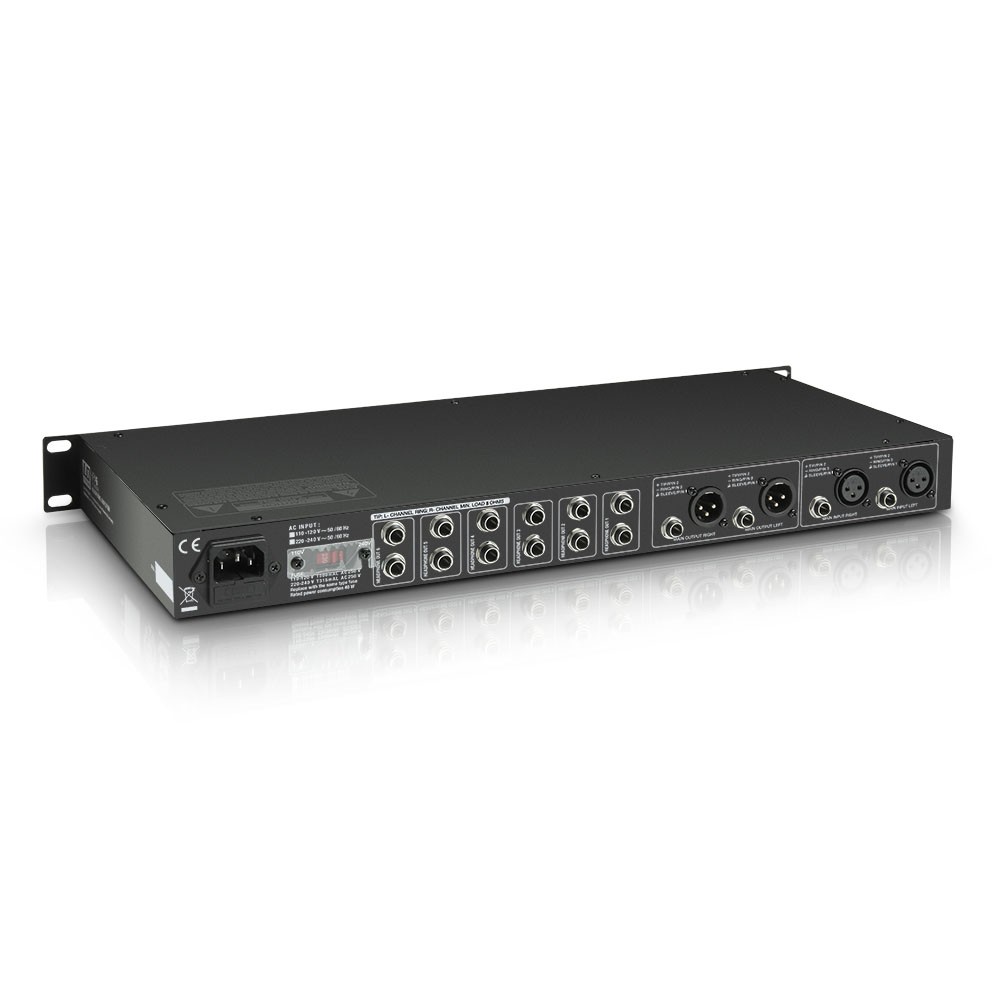

On the back of the unit are the main stereo inputs with XLR and 6.3 mm TRS connectors and stereo outputs for daisy chaining multiple units.
